Introduction

Isolation switch is a kind of switching device mainly used for "isolated power supply, switching operation, to connect and cut off small current circuit" without arc extinguishing function.

Description

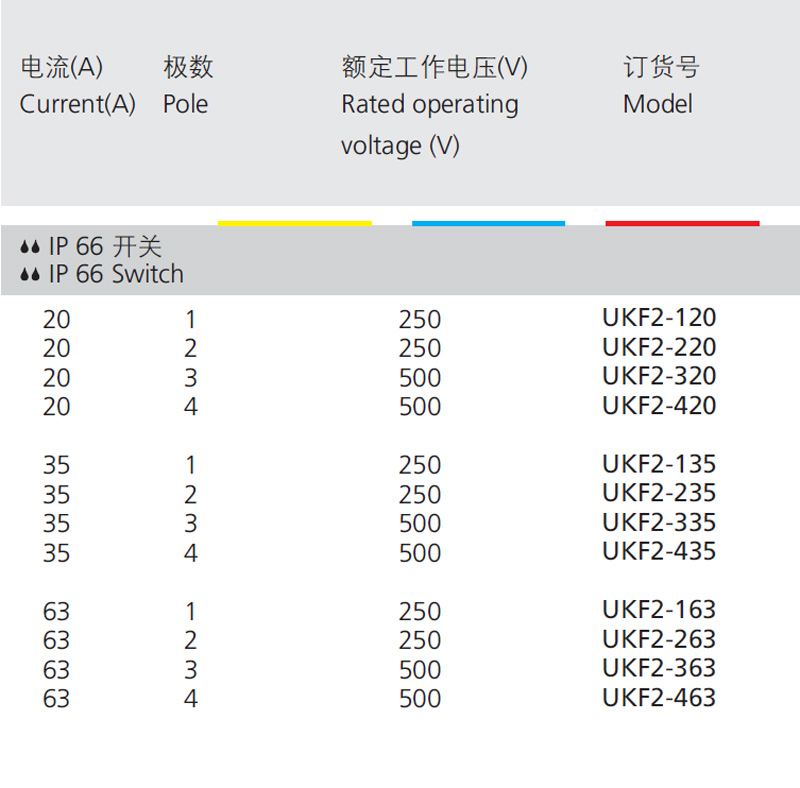

Parameter

Current(A)		20				35				63
Pole(P)		1	2	3	4	1	2	3	4	1	2	3	4
Dimension(mm)	a	166	166	166	166	166	166	166	166	166	166	166	166
	b	83	83	83	83	83	83	83	83	83	83	83	83
	c	86	86	86	86	86	86	86	86	86	86	86	86

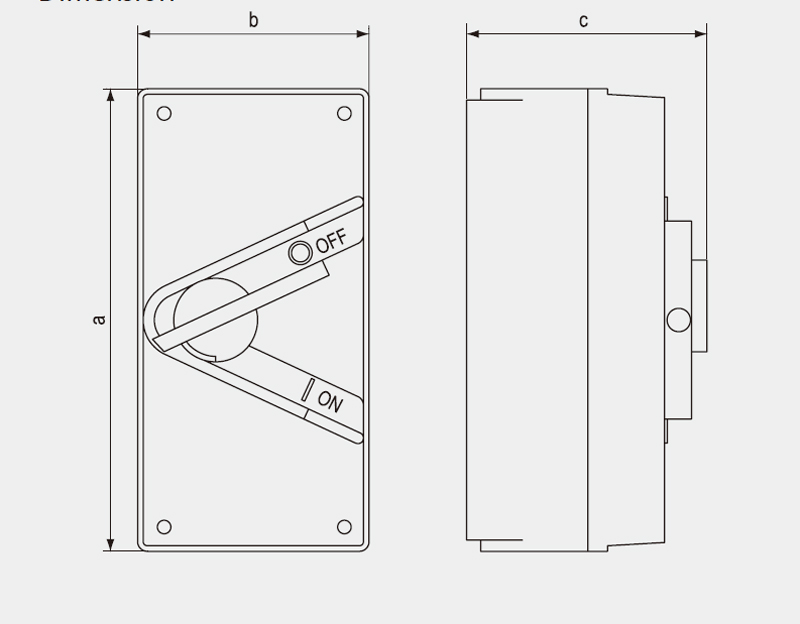

Dimension
