Basic Information
■Thread spec. Metric
■Material: Parts A, C,E are made of UL approved nylon PA66, parts B and D are made of Nitrile butadiene rubber (NBR).
■Working temperature:-40℃ to 100℃ in static state,instantaneous heat resistance up to 120℃;-20℃ to 80℃ in dynamic state, instantaneous
heat resistance up to 100℃.
■Characteritics: Special design of clamping die and rubber part large range in clamping cable,ulra-strong stretching resistance, waterproof,
dustproof, and high abilty to resist salt, acid, alkali,alcohol, grease and general solvent.

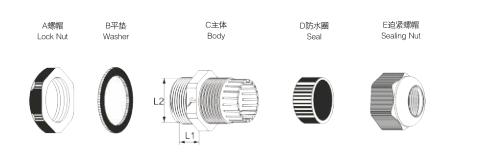

Structural Drawing

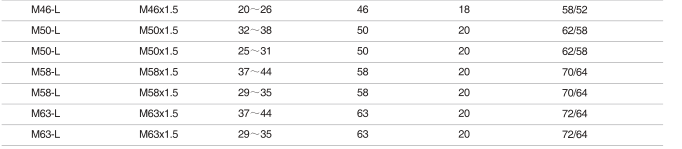

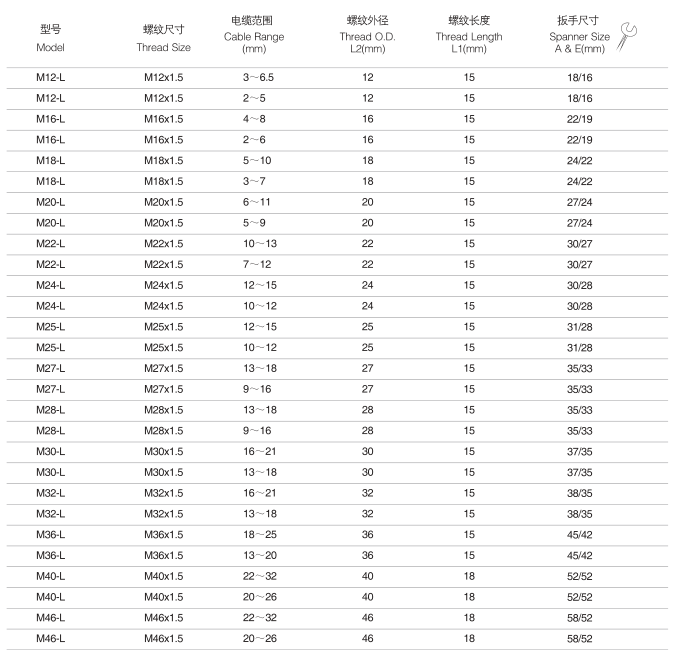

technical parameter
