Product profile
The 30kW inegratin single gun DC charging pole of our company unified the power shit,charging control,human-computer interchange control, communication,charge and metering together, and has better dust proof and water prof functions,protection grade achieved IP54, able to safety operating and maintain indoor and outdoor.

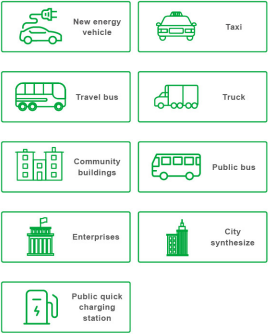

Application scenario

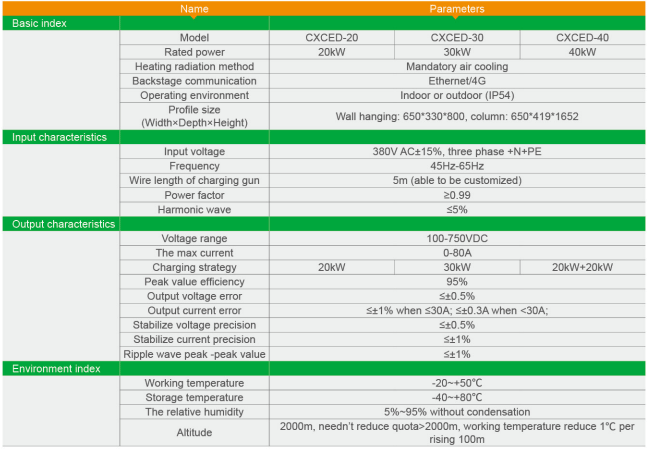

technical parameter

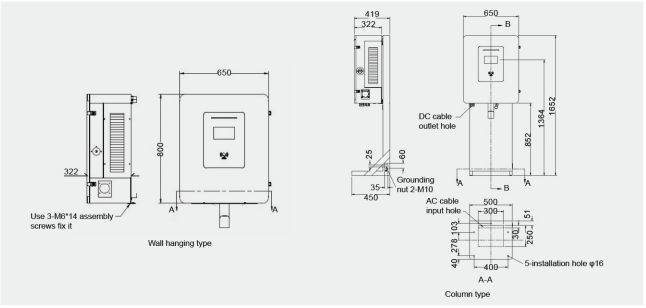

Product size chart
