| Categories | Circuit Breaker Accessory |
| Model | JVB16 |
| Rated voltage | 8, 12, 24, 230V AC |
| Rated frequency | 50/60Hz |
| Service mode | intermittent |
| Connection terminal | pillar terminal with clamp |
| Connection capacity | rigid conductor 10mm² |
| Installation | On symmetrical DIN rail 35mm Panel mounting |
| Terminal Connection Height | H=17mm |
Technical Data
|
l Rated voltage: 8, 12, 24, 230V AC |
|
l Rated frequency: 50/60Hz |
|
l Service mode: intermittent |
|
l Connection terminal: pillar terminal with clamp |
|
l Connection capacity: rigid conductor 10mm ² |
|
l Installation:On symmetrical DIN rail 35 mm |
|
l Terminal Connection Height: H=17mm |
Construction and Feature
Elegant appearance, compact size and easy installation
Low consumption
Product with rated current up to 24V AC to be powered by bell transformer JVB16.
Application
The electric bell is suitable for audible signaling for intermittent use only in domestic and commercial installations.

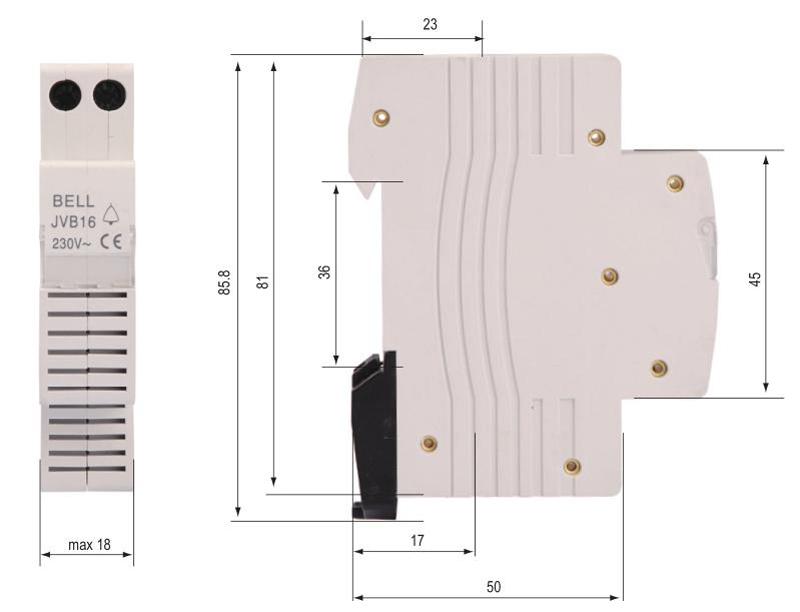

Overall & Installation Dimensions
