Application
The Modular Signal Lamp is applicable to circuit with rated voltage 230V~ and frequency 50/60Hz for visual indication and signaling.
Compliance
IEC60947-5-1
EN60947-5-1
Technical Data
■Rated voltage: 230V AC
■Rated frequency: 50/60Hz
■Colour: red, green, yellow
■Connection terminal: pillar terminal with clamp
■Connection capacity: rigid conductor 10mm
■Installation:
□On symmetrical DIN rail 35 mm
□Panel mounting
■Terminal Connection Height: H=19mm
SL Sgnal Lamp
Max power: 0.6W
Illumination: LED
Service duration: 30,000 hours
SN Signal Lamp
Max power: 1.2W
Illumination: Neon bulb
Service duration: 15,000 hours

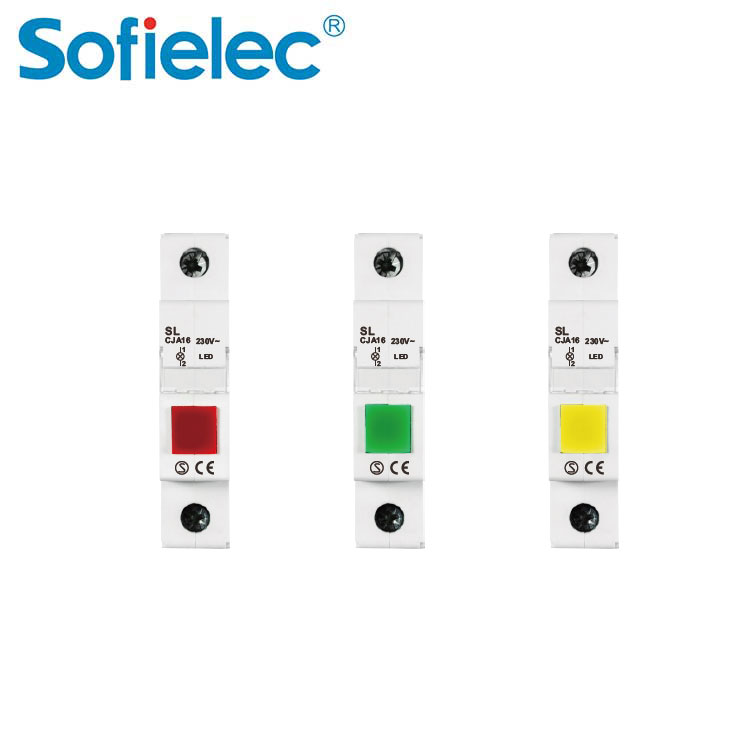

CJA16 LED Signal Lamp
Max power: 0.6W
Illumination: LED
Service duration: 30,000 hours
Construction and Feature
Low service duration, minimum power consumption
Compact design in modular size
Easy installation

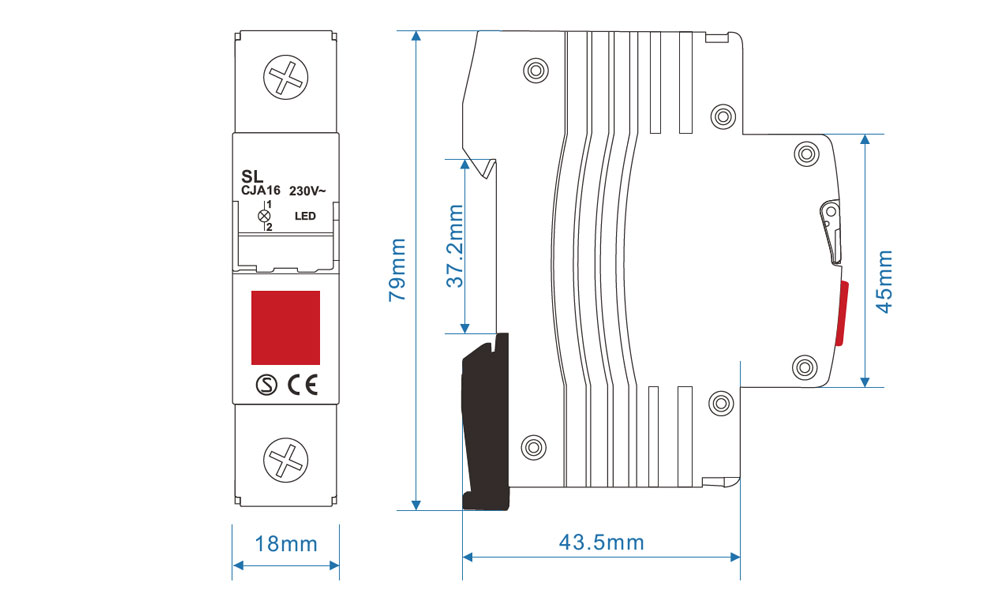

Overall & Installation Dimensions
