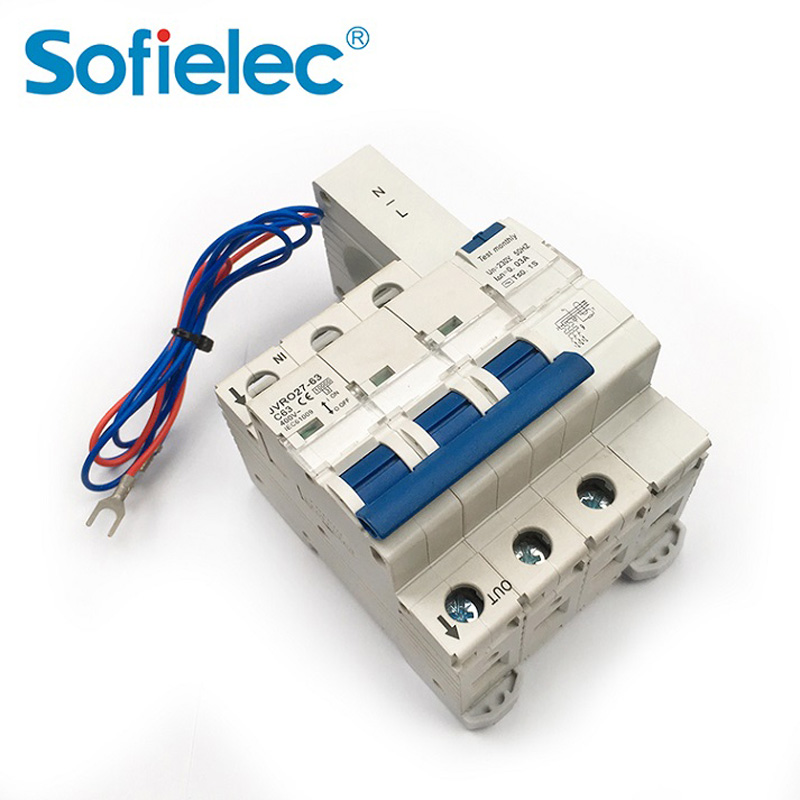

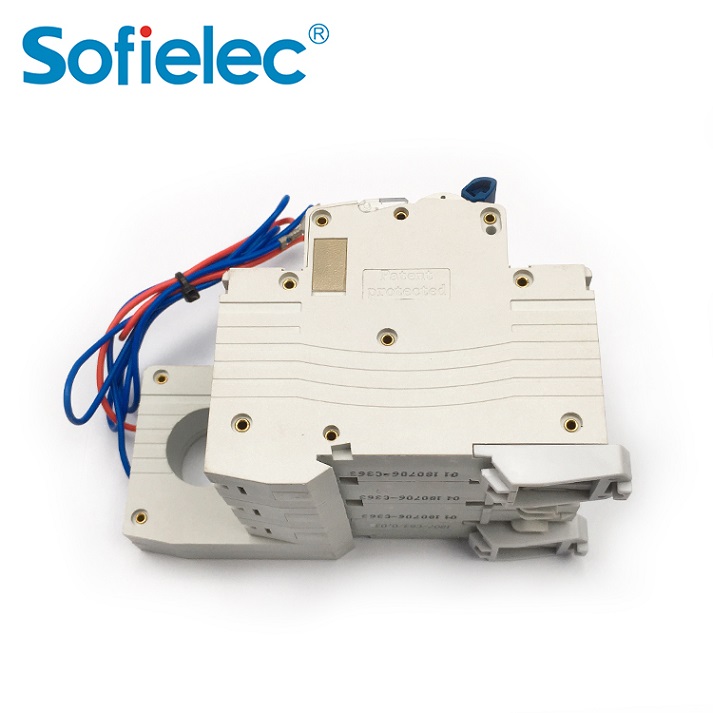

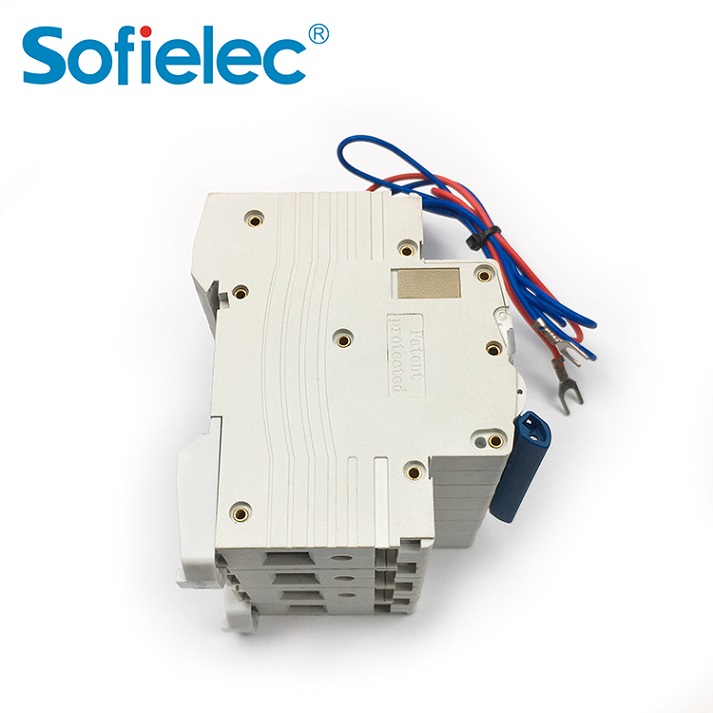

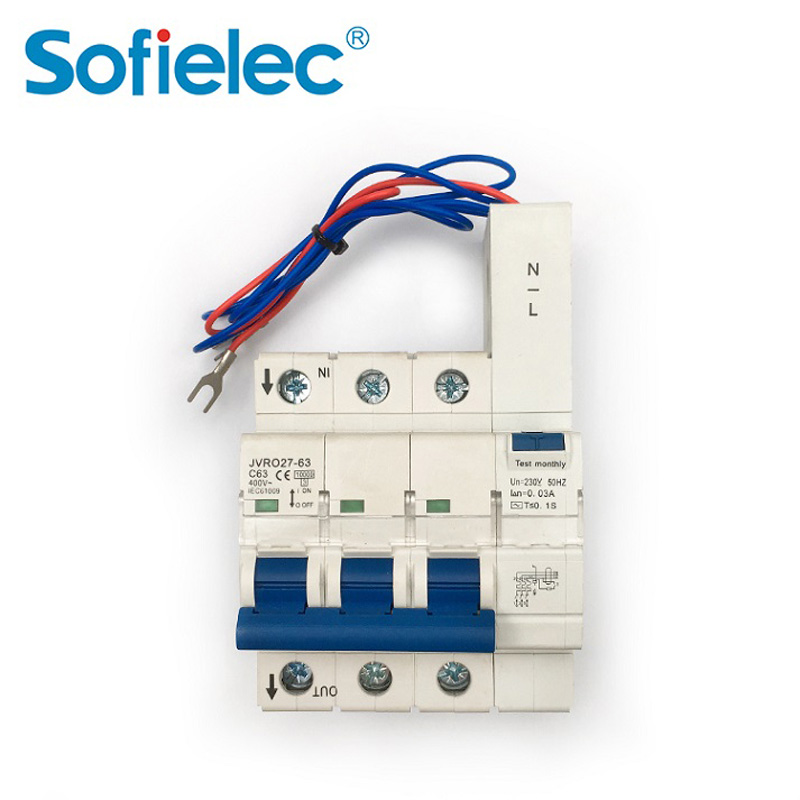

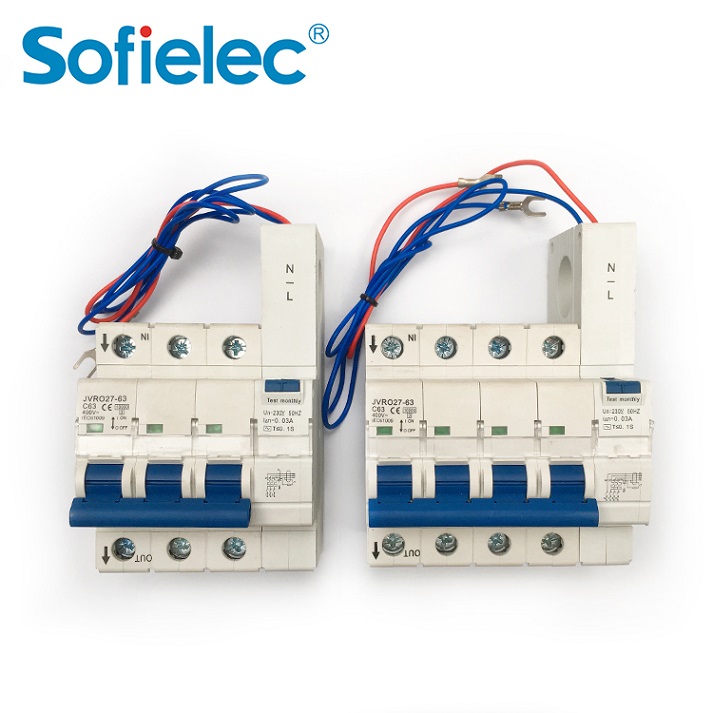

Construction and Feature
Provides protection against earth fault/leakage current, short-circuit and overload
High short-circuit capacity
Provides complementary protection against direct contact by human body.
Effectively protects electric equipment against insulating failure
Contact position indication
Provides protection against over-voltage
Provides comprehensive protection to household and commercial distribution
systems.
| Categories | Superior 10kA 16 Series Circuit Breaker |
| Type | Electronic type |
| Residual current characteristics | AC |
| Pole No | 1P.1P+N.2P.3P 3P+N, 4P |
| Tripping curve | B,C,D |
| Rated shot-icuit capacity lcn | 10kA |
| Rated current (A) | 1,2,3,4,6, 10, 16, 20,25, 32, 40, 50,63 |
| Rated voltage | Rated voltage |
| Rated frequency | 50/60Hz |
| Electro-mechanical endurance | 4000 cycles |
| Connection terminal | pillar terminal with clamp |
Technical Data
|
l Type: Electronic type |
|
l Residual current characteristics: AC |
|
l Pole No.: 1P，1P+N，2P，3P，3P+N，4P |
|
l Tripping curve: B, C, D |
|
l Rated short-circuit capacity Icn: 10kA |
|
l Rated current (A):1,2,3,4,6,10,16,20,25,32,40,50,63 |
|
l Rated voltage: 230/400V AC |
|
l Rated frequency: 50/60Hz |
|
l Rated residual operating current I△n: 0.03,0.1,0.3 |
|
l Tripping duration: instantaneous≤0.1s |
|
l Electro-mechanical endurance: 4000 cycles |
|
l Connection terminal: pillar terminal with clamp |
|
l Connection capacity: Rigid conductor 25mm² |
|
l Installation:On symmetrical DIN rail 35mm Panel mounting |

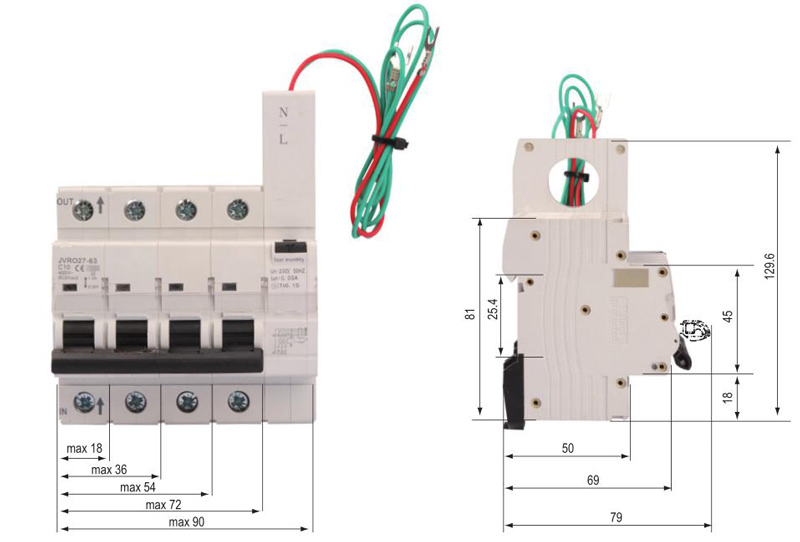

Overall & Installation Dimensions

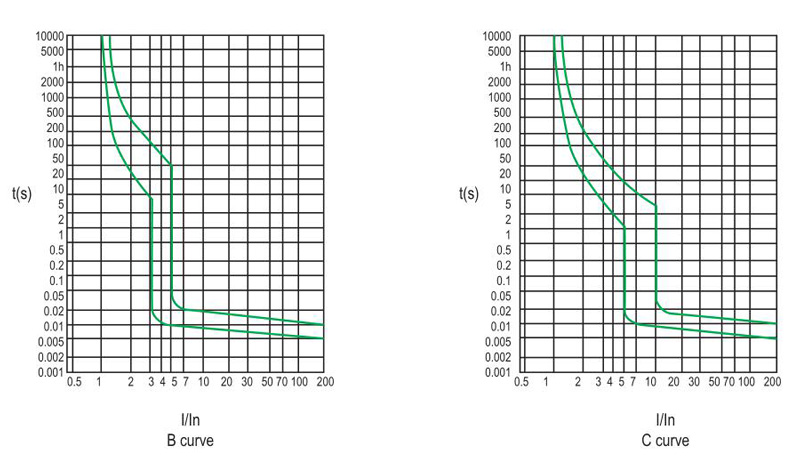

Characteristic Curve

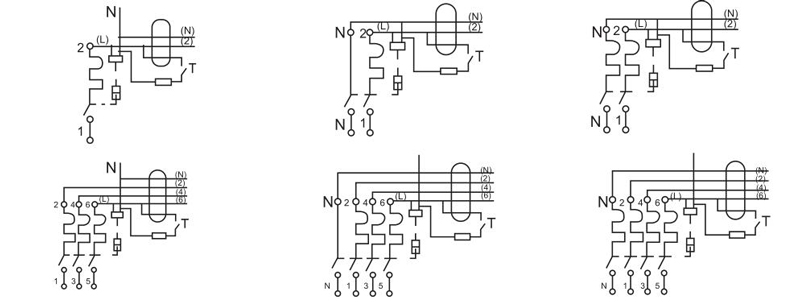

Wiring Diagram
