Overview
Quick Details
Place of Origin: Zhejiang, China
Model Number: JVRO9-50
Poles Number: 2P,3P+N,4P
Product name: 50A RCBO SUPER NARROW SPACE SAVER AUSTRALIA HOT SELLING
Standard: ICE61009-1
Breaking capacity: 6KA
Rated frequency: 50/60 Hz
Brand Name: sofielec
Type: rcbo
Rated current: 6A-50A
Certificate: CE CB ,SEMKO
Rated voltage: 240/415V
Endurance: 4000
Mounting ways: din rail pannel mounting
Supply Ability
10000pcs per 2 months
Packaging & Delivery
Packaging Details
white box and standard export carton with lable( depand on customer's requirement
Port
Ningbo/ shanghai

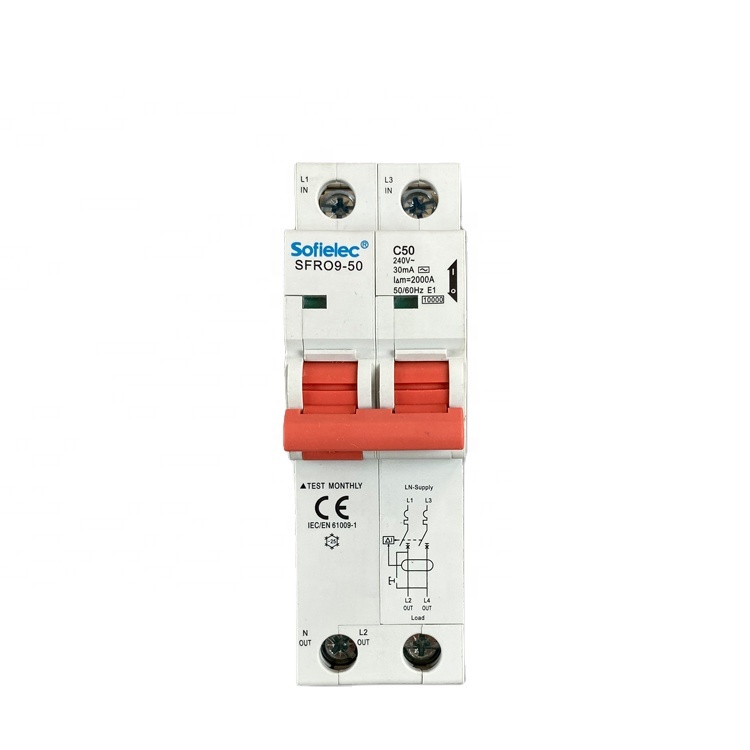

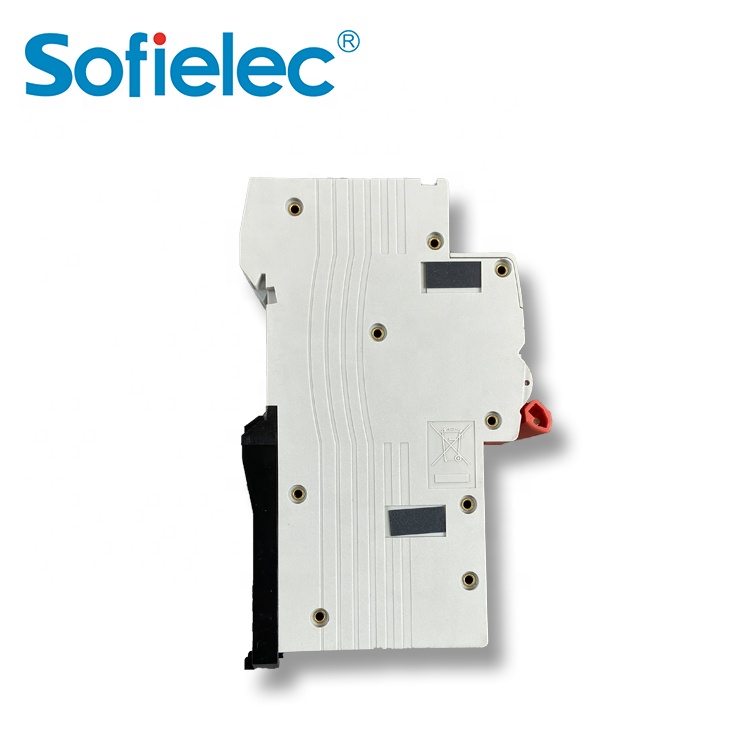

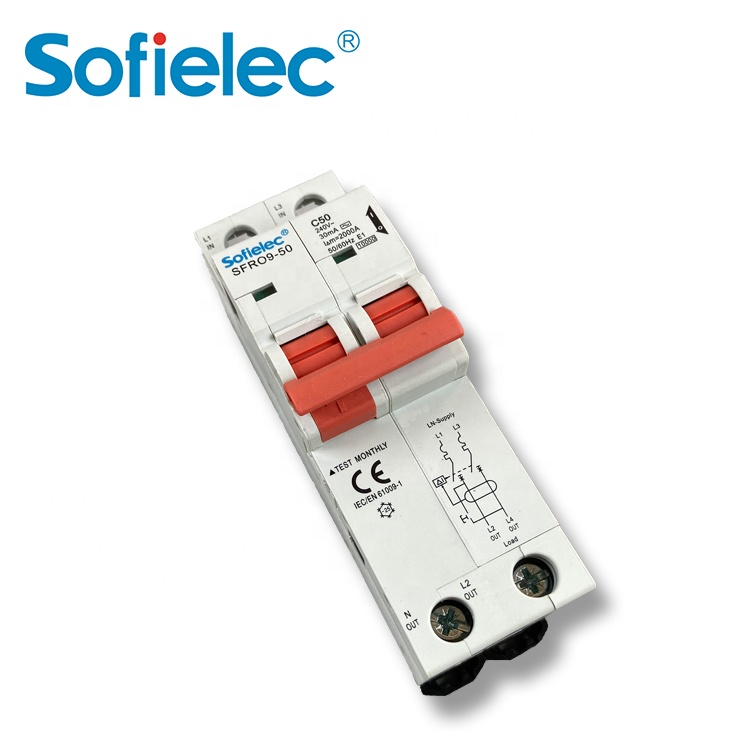

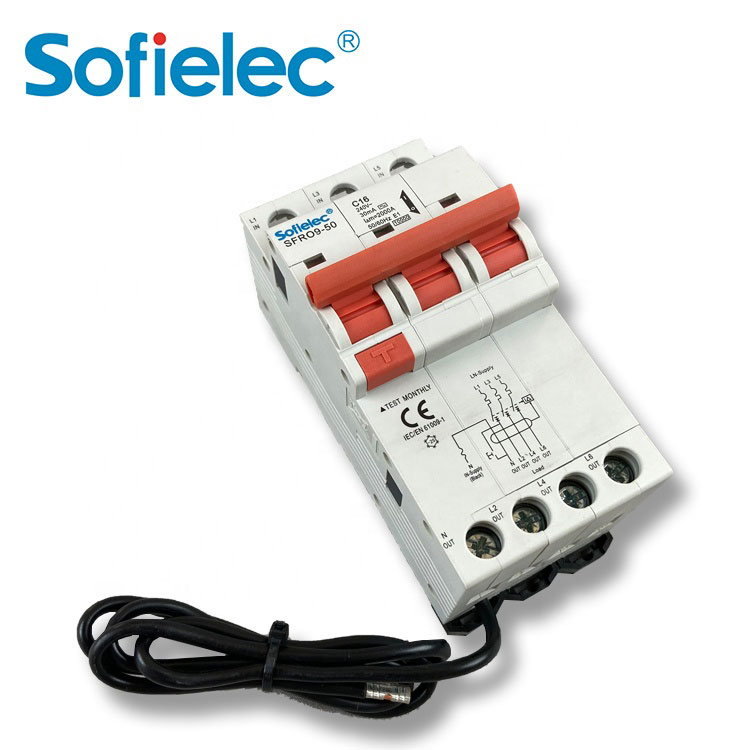

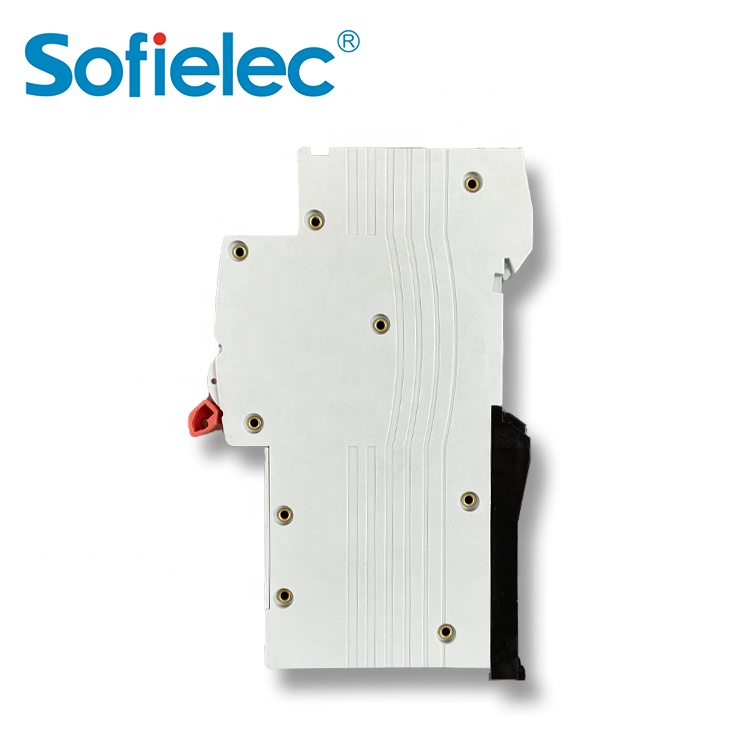

Product Show
SFRO16-32 RCBO circuit breaker is appropriate for the single electrical circuit of A 240V,50Hz,rated current 40A and under 40A ,with the protection function of leakage,overload,short circuit etc,main used in the protection of person electric shock,also used in preventing of equipment earth fault leading to fire disaster,and use the electrical-magnetic type or electronic releasing. This product is suitable for laypeople to use,also no need to maintain.
Construntion and Feature:
- Operating machanism adopt double contact with DPN form, N pole opening first, then breaking
- Leakage protecion adopt electronic type integrated circuit, Contact ON/OFF state display.
- Trigger has middle-position function and a clamshell to put tags in and characteristic stripes on both sides.
- Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation.
Technical Data:
| Residual current characteristics: | AC, A |
| Pole No.: | 2P,3P+N,4P |
| Tripping curve: | B, C |
| Rated short-circuit breaking capacity: | 10kA |
| Rated current (A): | 6, 10, 16, 20, 25, 32,40,50A |
| Rated voltage: | 240V |
| Rated frequency: | 50Hz |
| Rated residual operating current(Ma): | 30,100,300mA |
| Tripping duration: | Tripping duration: |
| Electro-mechanical endurance | 4000 cycles |
| Diameter of screw d(mm): | M4 |
| Degree of protection: | IP20 |
| Fastening torque: | 1.2N.m |
| On symmetrical DIN rail | 35mm |
| Terminal Connection Height: | H1=19mm H2=22mm |
