New technology new products. Wide band voltage / multi voltage 24V-110V new magnetic contactors. From 9A to 100A.

New technology new products. Wide band voltage / multi voltage 24V-110V new magnetic contactors. From 9A to 100A.
New technology new products. Wide band voltage / multi voltage 24V-110V new magnetic contactors. From 9A to 100A.



Supply Ability

10000pcs per 2 months



Packaging & Delivery

Packaging Details
white box and standard export carton with lable( depand on customer's requirement

Port
Ningbo/ shanghai




Product Show

Sofielec,YUEQING SOFIELEC ELECTRICAL CO., LTD.Professional production Circuit breaker and fuse

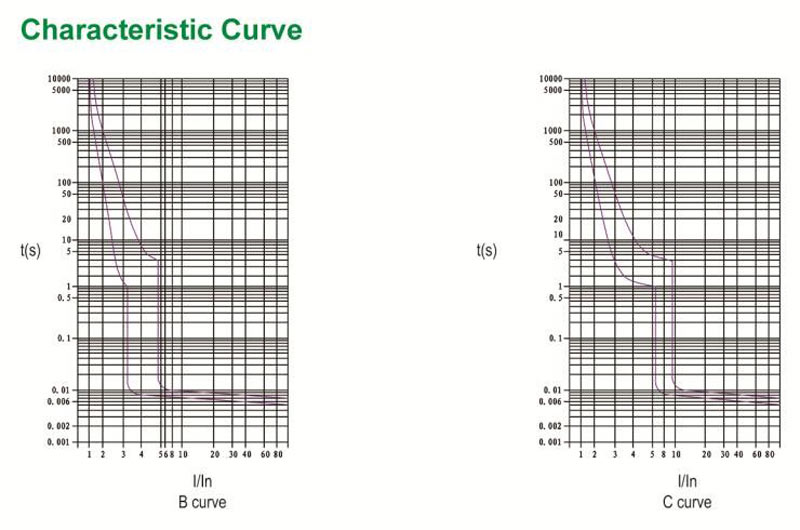

Characteristic Curve

SFRO16-32 RCBO circuit breaker is appropriate for the single electrical circuit of A 240V,50Hz,rated current 40A and under 40A ,with the protection function of leakage,overload,short circuit etc,main used in the protection of person electric shock,also used in preventing of equipment earth fault leading to fire disaster,and use the electrical-magnetic type or electronic releasing. This product is suitable for laypeople to use,also no need to maintain.



Construntion and Feature:

  1. Operating machanism adopt double contact with DPN form, N pole opening first, then breaking
  2. Leakage protecion adopt electronic type integrated circuit, Contact ON/OFF state display.
  3. Trigger has middle-position function and a clamshell to put tags in and characteristic stripes on both sides.
  4. Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation.



Technical Data:

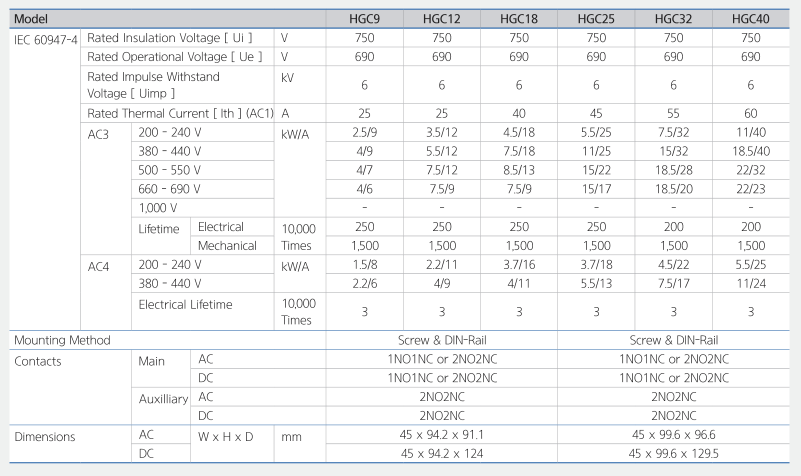

Technical Data:Model:HGC9,HGC12,HGC18,HGC25,HGC32,HGC40

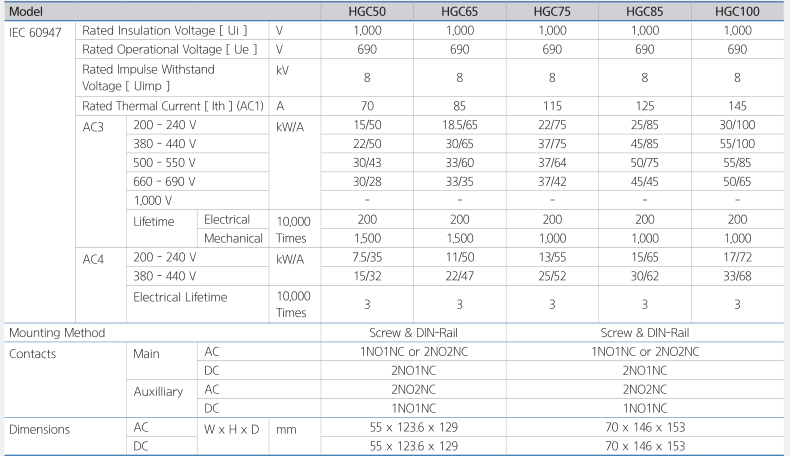

Model:HGC50,HGC65,HGC75,HGC85,HGC32,HGC100
