Categories：Contactor
Model：CJX2S-N
Technical index
Specifications
| Type | Rated operation current(Ie)(A) | Rated thermal current(Ith)(A) | Rated operational power in category AC-3(kW) | |
| 380V | 660V | |||
| CJX2s-09N | 9 | 20 | 4 | 5.5 |
| CJX2s-12N | 12 | 20 | 5.5 | 7.5 |
| CJX2s-18N | 18 | 32 | 7.5 | 10 |
| CJX2s-25N | 25 | 40 | 11 | 15 |
| CJX2s-32N | 32 | 50 | 15 | 18.5 |
| CJX2s-40N | 40 | 50 | 18.5 | 30 |
| CJX2s-50N | 50 | 60 | 22 | 33 |
| CJX2s-63N | 63 | 80 | 30 | 37 |
| CJX2s-80N | 80 | 95 | 37 | 45 |
| CJX2s-95N | 95 | 95 | 45 | 55 |

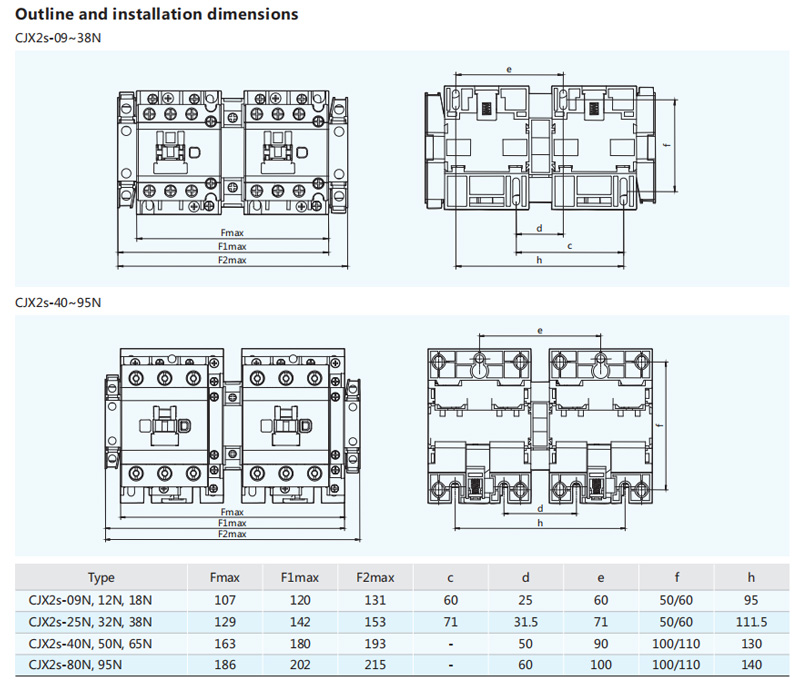

Shape and installation dimensions
