Categories
| Categories | Fuse |
| Model | SYPV |
| Rated voltage | 1500V DC |
| Classes | gPV |
| Rated breaking capacity | 25kA |
| Rated Current | 32 |

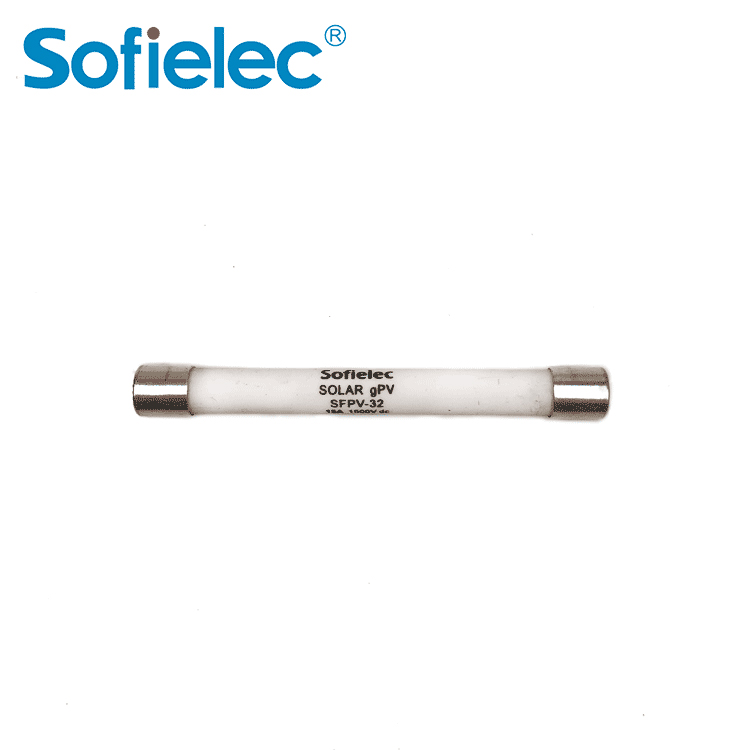

gPV Protection Fuse-link
| Model/Size | Rated Voltage | Rated Current | Current specitication | Overall Dimension |
| SYPV-30 | DC1500 | 30 | 2、3、5、6、8、10、12、15、16、20、25、30、32 | Fig |

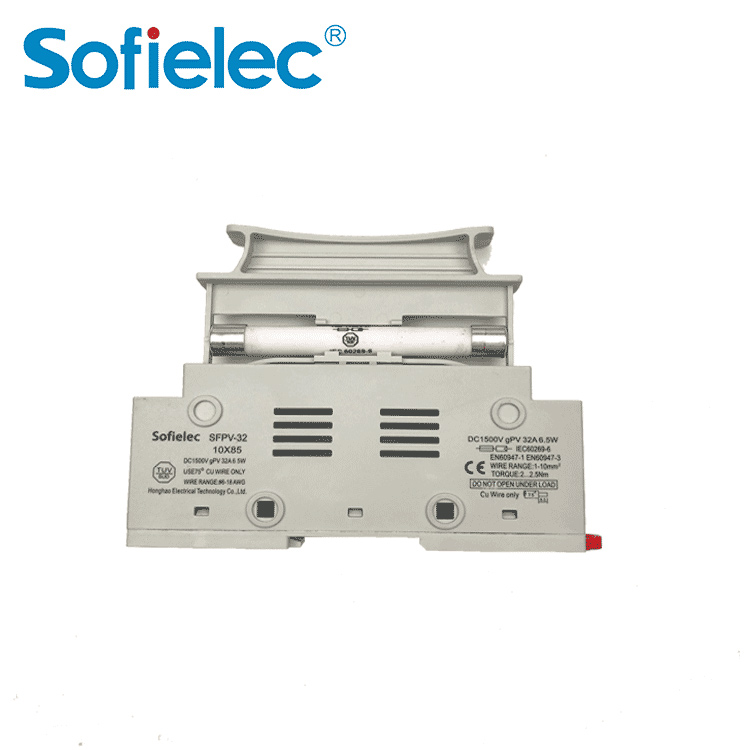

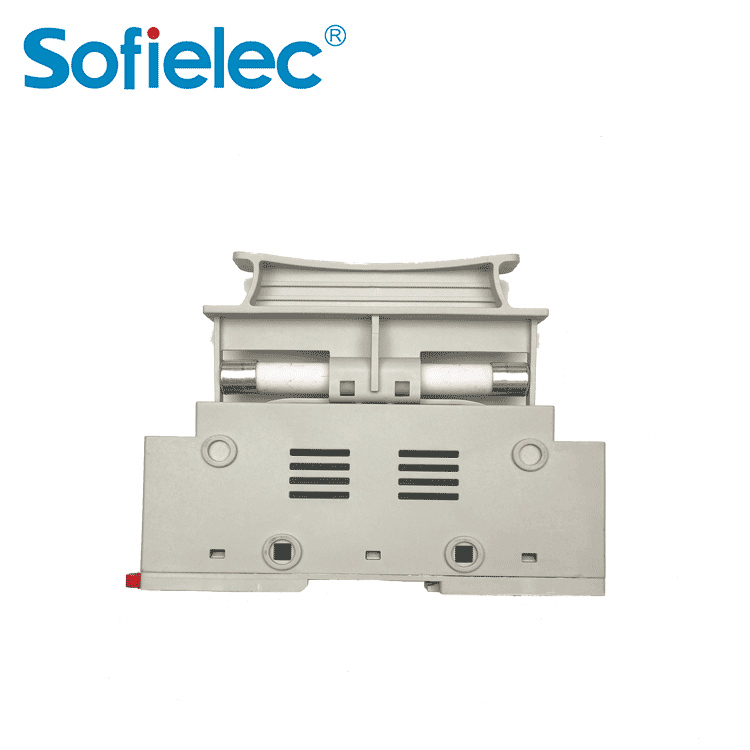

Fuse Holder For gPV Fuse Link

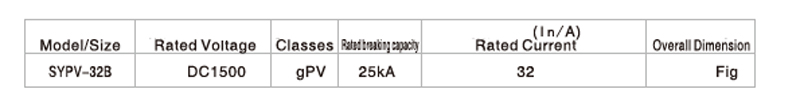

| Model/Size | Rated Voltage | Classes | Rated breaking | Rated Current (ln/A) | Overall Dimension |
| SYPV-32B | DC1500 | gPV | 25kA | 32 | Fig |
Fuse
| fuse | matchedwithfuse bodymeasurement | fated vitge(v) | rated current(A) |
| fast(gPV) | |||
| SYPV-30C | 10×38 | 1000Vdc | 32 |
| SYPV-30 | 10×85 | 1500Vdc | 32 |

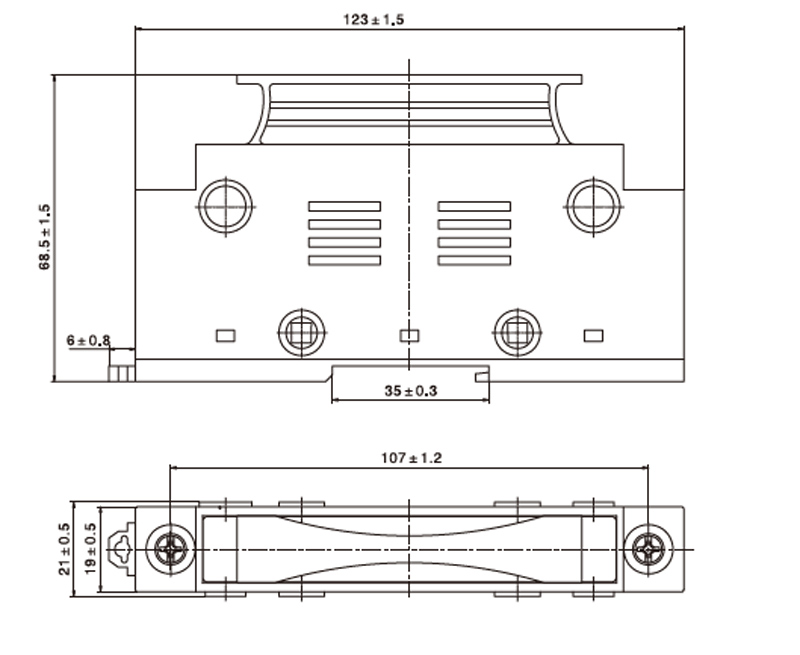

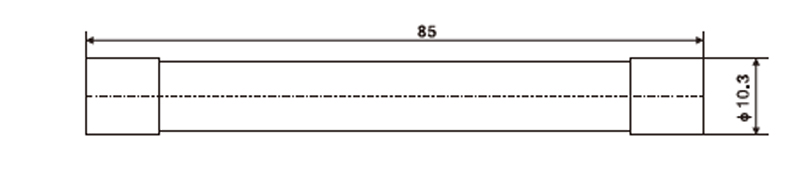

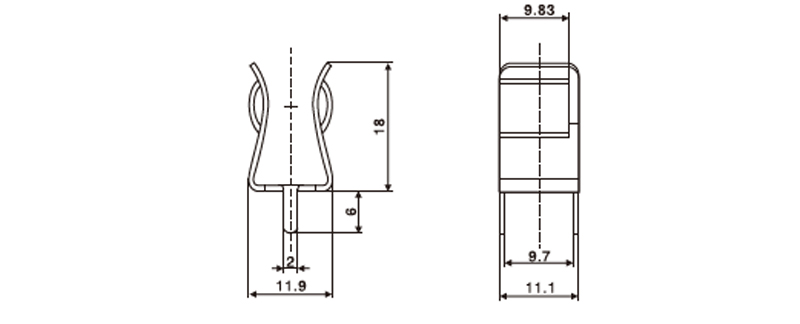

Dimensions
