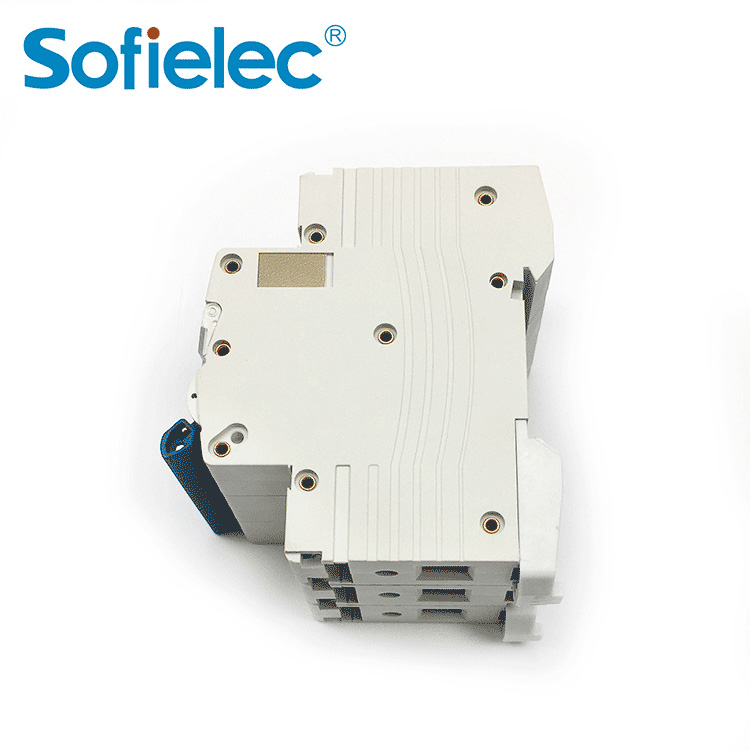

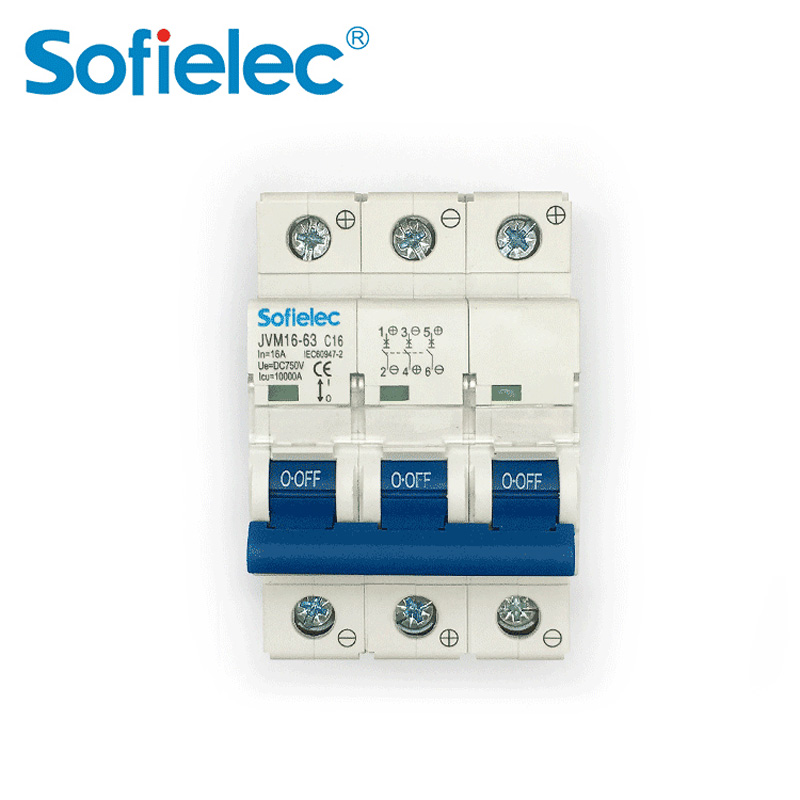

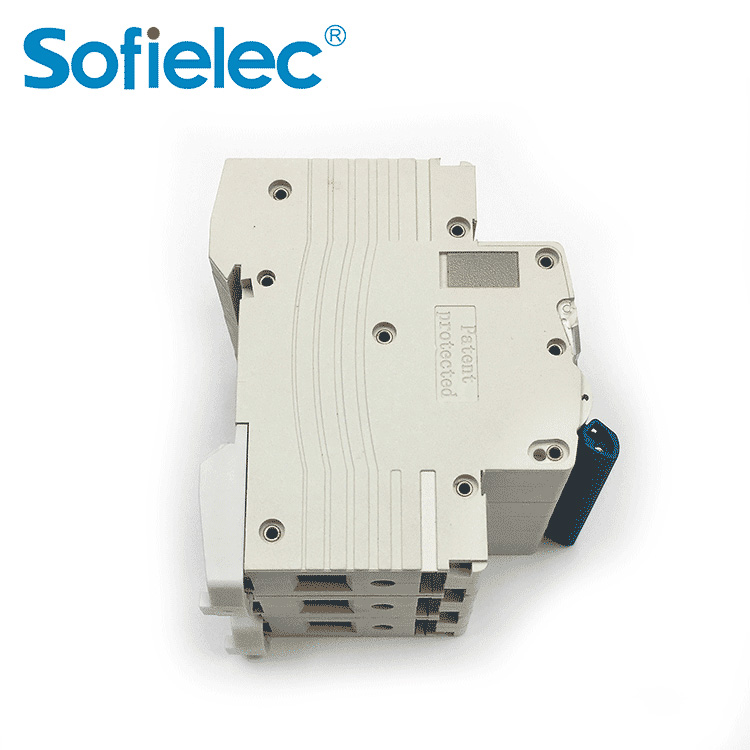

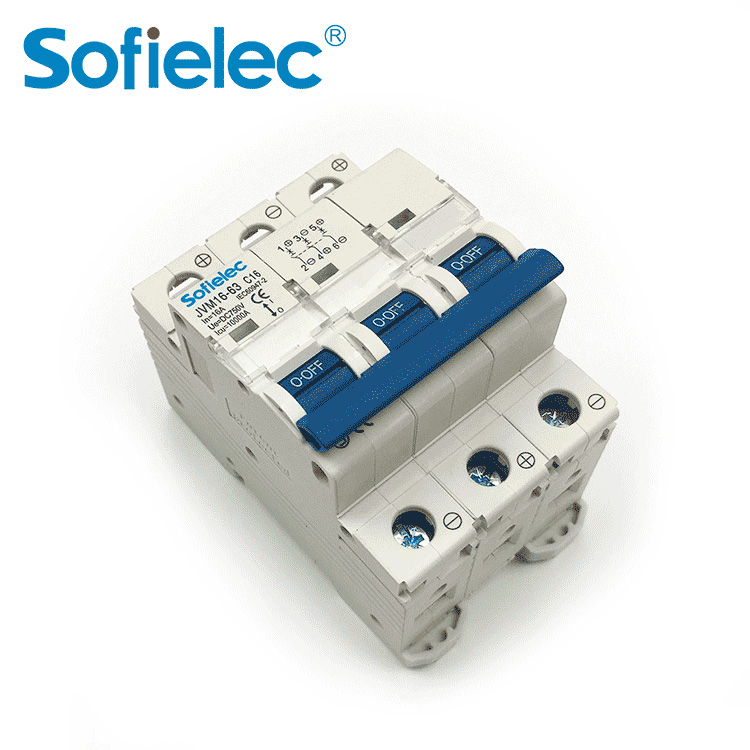

he state-of-art design
Elegant appearance; cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.
Handle central-staying function for circuit fault indicating
In case of overload, to protected circuit, MCB handle trips and stays at central
position, which enables a quick solution to the faulty line. The handle cannot stay in
such position when operatedmanually.
High short-circuit capacity
High short-circuit capacity 10KA for whole range and 15kA capacity for current rating
up to 40A thanks to the powerful electric arc extinguishing system.
Long electrical endurance up to 6000 cycles thanks to quick making mechanism.
Handle padlock device
MCB handle can be locked either at “ON” position or at“OFF” position to
prevent unwanted operation of the product.
Screw terminal lock device
The lock device prevents unwanted or casual dismounting of connected terminals
| Categories | DC Protection Series Circuit Breaker |
| Model | DC JVM16-63 |
| Pole No | 1,2 |
| Rated Voltage | 1P:250V 2P:500V |
| Rated Current in(A) | 1,2,3,4,6,10,13,16,20,25,32,40,50,63 |
| Tripping Curve | B,C |
| Rated short-circuit breaking capacity | 10KA |
| Rated impluse withstand voltage | 6.2KV |
| Eletro-mechanical | 10000 |
| Screw terminal | M5 |
| Rated torque | 2.0N.m |
Construction and Feature
The state-of-art design
Elegant appearance; cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.
Handle central-staying function for circuit fault indicating
In case of overload, to protected circuit, MCB handle trips and stays at central
position, which enables a quick solution to the faulty line. The handle cannot stay in
Such position when operated manually.
High short-circuit capacity
High short-circuit capacity 10KA for whole range and 15kA capacity for current rating
up to 40A thanks to the powerful electric arc extinguishing system.
Long electrical endurance up to 6000 cycles thanks to quick making mechanism.
Handle padlock device
MCB handle can be locked either at “ON” position or at“OFF” position to
prevent unwanted operation of the product.
Screw terminal lock device
The lock device prevents unwanted or casual dismounting of connected terminals.
Technical Data
■Pole No.:1,2
■Rated voltage:1P:250V 2P:500V
■Rated Current In(A):1,2,3,4,6,10,13,16,20,25,32,40,50,63;
■Tripping Curve:B,C
■Rated short-circuit breaking capacity:10kV
■Rated impulse withstand voltage:6.2KV
■Eletro-mechanical endurance:10000
■Screw terminal:M5
■Rated torque:2.0N.m

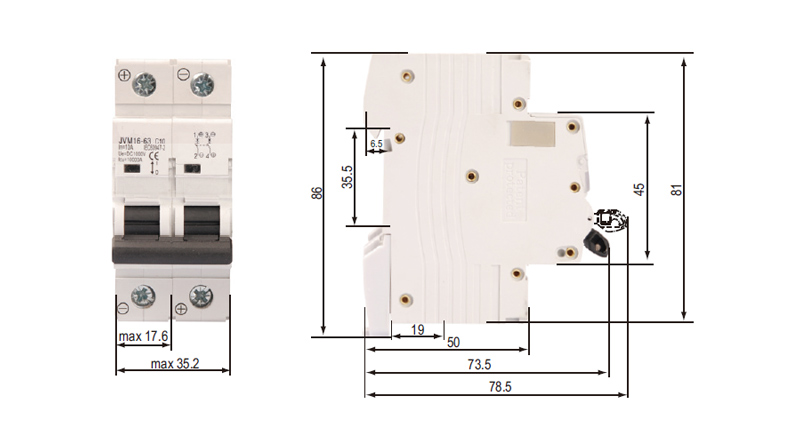

Overall & Installation Dimensions

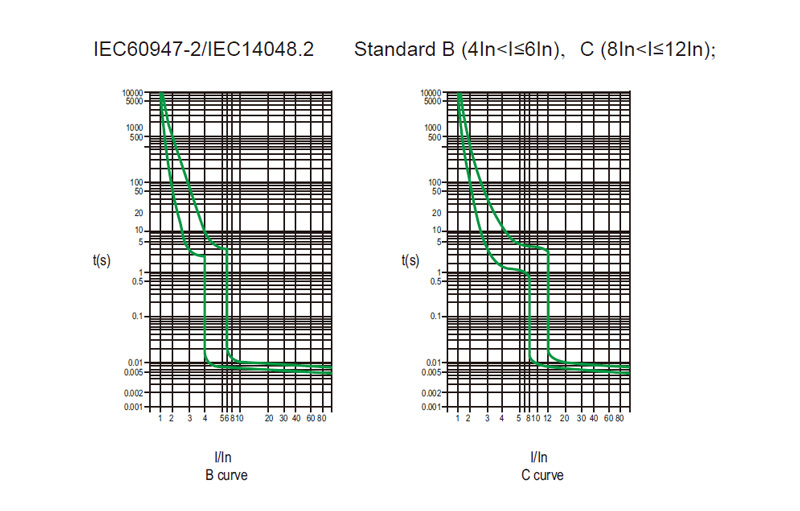

Characteristic Curve

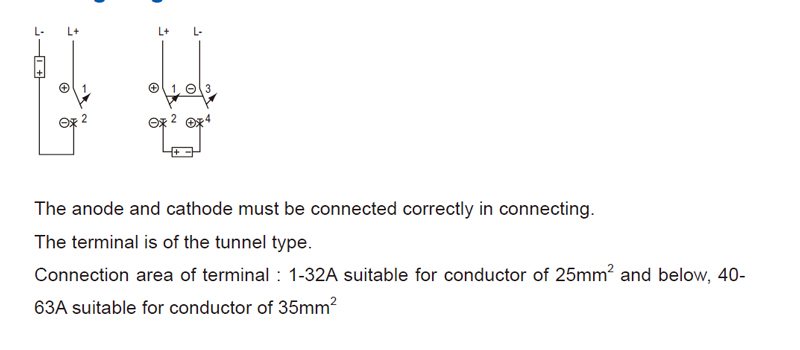

Wiring Diagram
Overload Current Protection Characteristics
| Test Procedure | Type | Initaial State | Test Current | Tripping or Non-tripping Time Limit | Expected Result | Remark |
| A | B,C | cold | 1.05In | t≥1h(In≤63A) t≥2H(In>63A) | no tripping | |
| B | B,C | after test a | 1.3In | t<1h(In≤63A) t<2h(In>63A) | tripping | Current in the 5 s in the increase of stability |
| C | B,C | cold | 2In |
10s 20s63A) |
tripping | |
| D | B | cold | 4In | t≤0.2s | no tripping | turn on the auxiliary switch to close the current |
| C | 8In | |||||
| E | B | cold | 6In | t<0.2s | tripping | |
| C | 12In |
