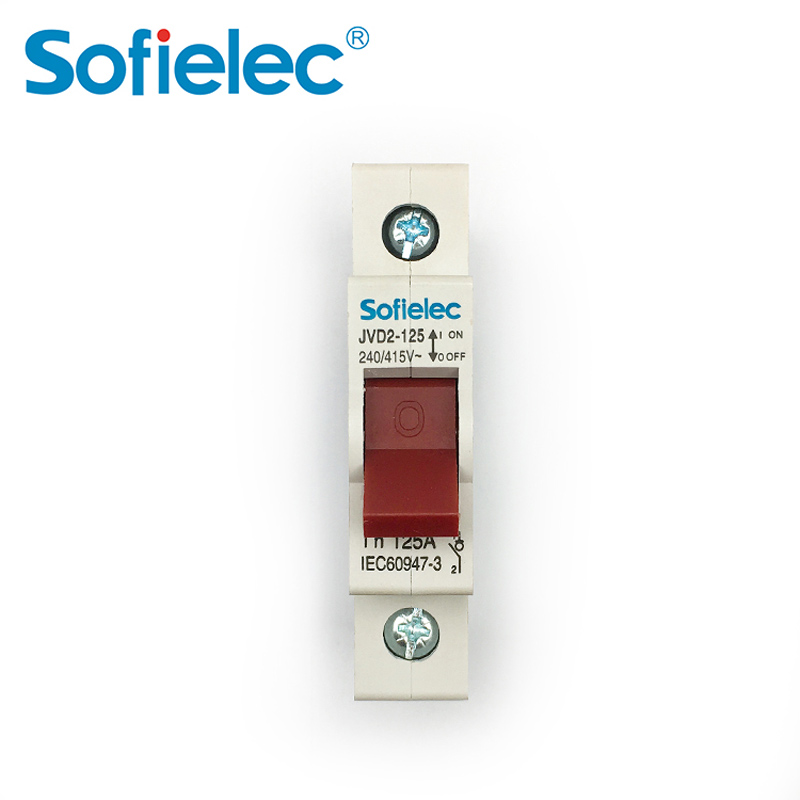

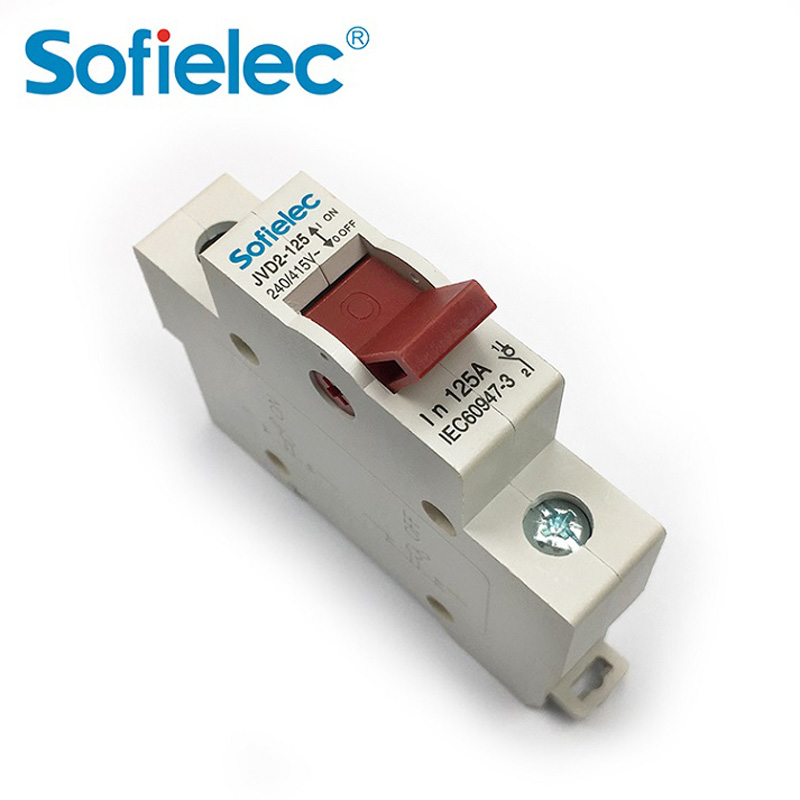

| Categories | DIN rail isolator |
| Pole No | 1,2,3, 4 |
| Rated curentA) | 16, 25, 40, 63,80,100,125 |
| Rated voltage | AC 230/400V |
| Rated frequency | 50/60H |
| Rated short-circuit making capacity | 3kA |
| Rated withstand current | 1.8kA within 1sec |
| Electro-mechanical endurance | 10000 cycles |
| Connection capacity | Rigid conductor 35mm² |
| Connection terminal | Pillar terminal with clam |
| Terminal Conection Height | H=21mm |
Technical Data
|
l Pole No.: 1, 2, 3, 4 |
|
l Rated current(A): 16, 25, 40, 63, 80, 100, 125 |
|
l Rated voltage: AC 230/400V |
|
l Rated frequency: 50/60Hz |
|
l Rated short-circuit making capacity: 3kA |
|
l Rated withstand current: 1.8kA within 1sec |
|
l Electro-mechanical endurance: 10000 cycles |
|
l Connection capacity: Rigid conductor 35mm ² |
|
l Connection terminal: Pillar terminal with clamp |
|
l Installation:On symmetrical din rail 35.5mm |
|
l Terminal Connection Height: H=21mm |

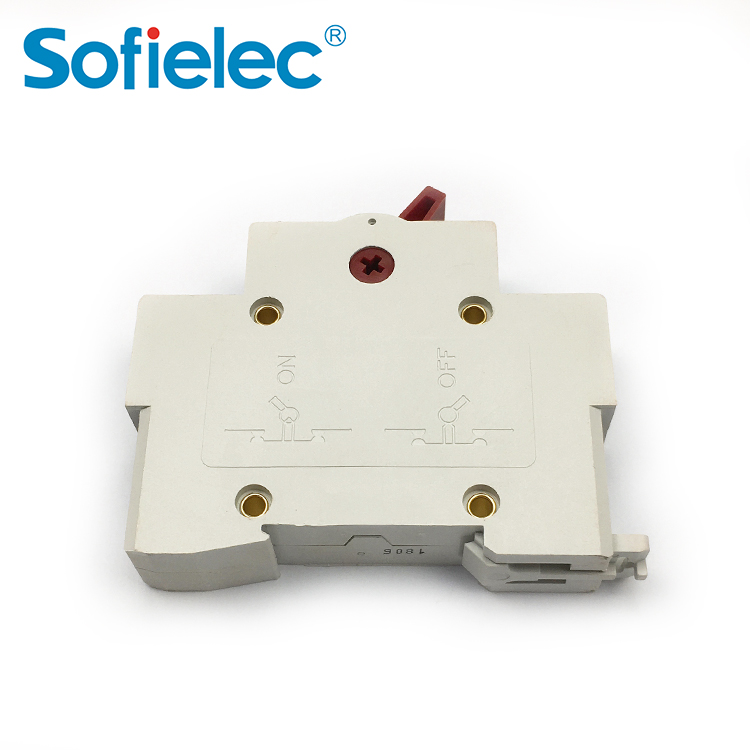

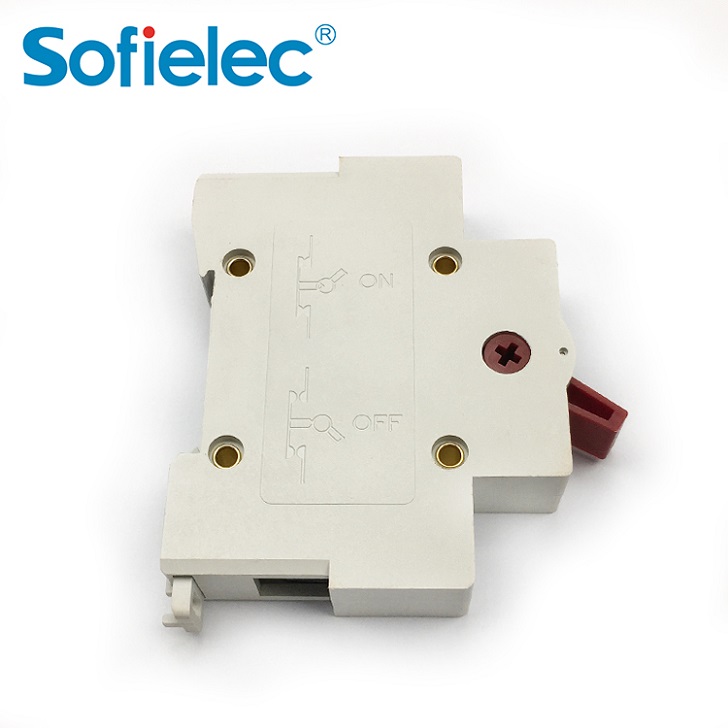

Construction and Feature
Capable of switch electric circuit with load
Provide function of isolation
Used as main switch for household and similar installation

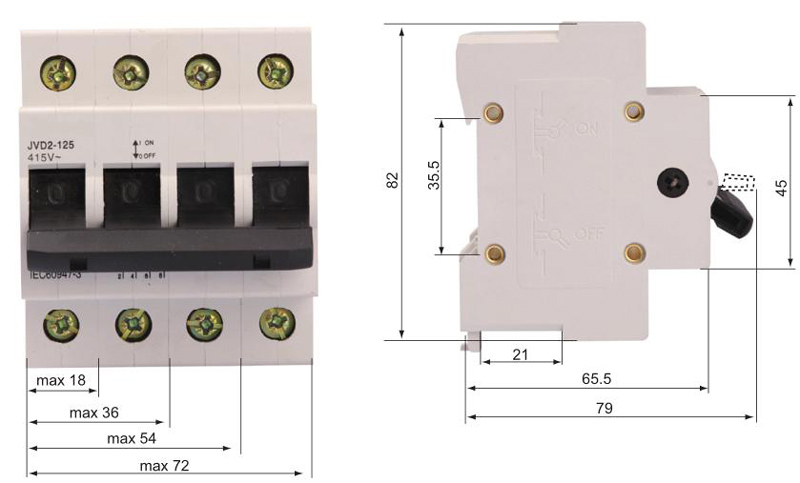

Overall & Installation Dimensions

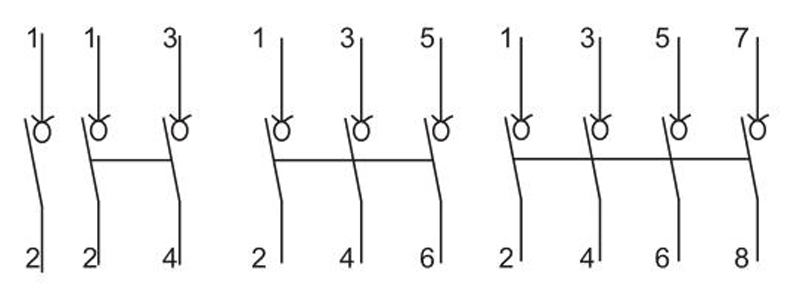

Wiring Diagram
