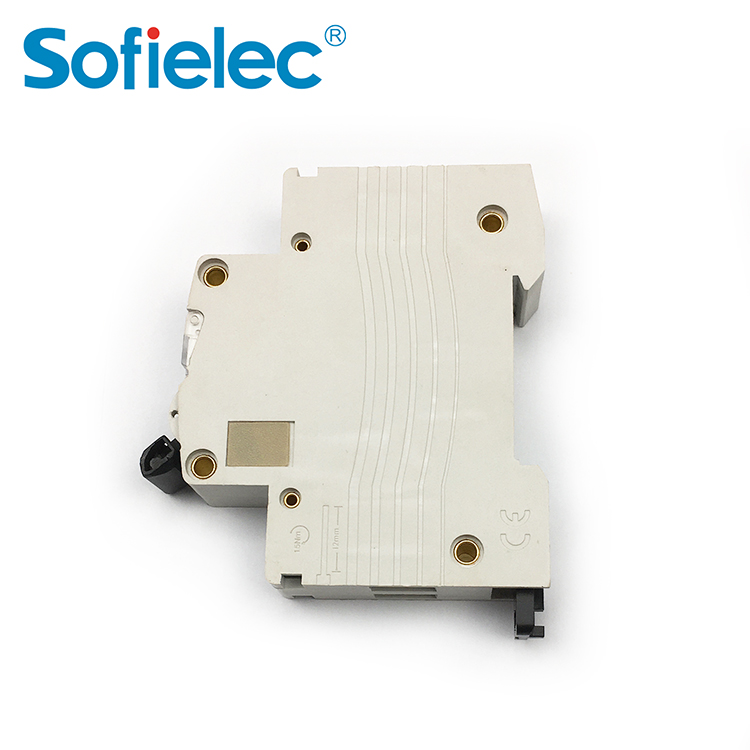

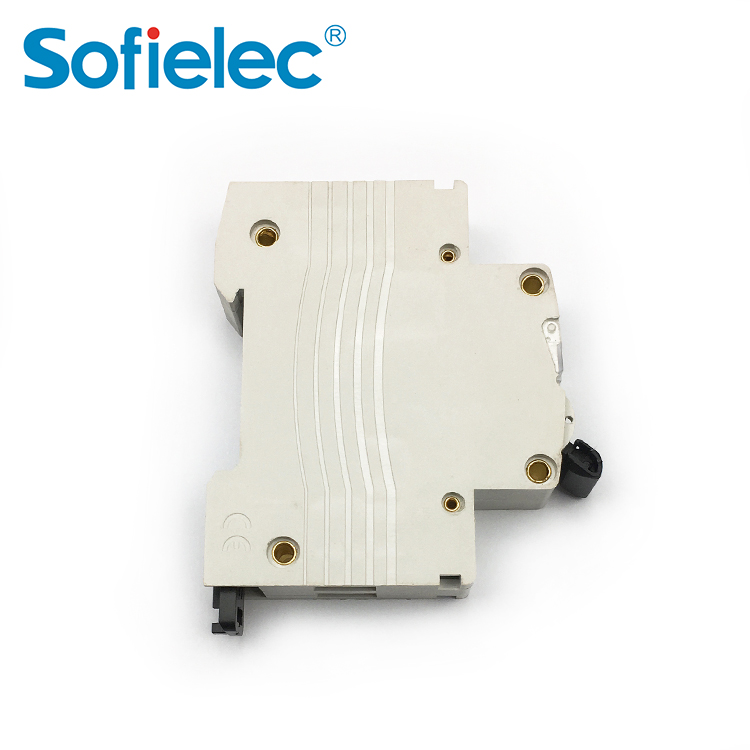

6kA JVM9-32 Factory OEM make 1P+N 25A DPN circuit breaker switch CE approval

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Economic 4.5KA, 6kA Regular Series Circuit Breaker
Model JVM9-32
Pole No 1P+N
Rated voltag AC 230V
Rated Current 3,6, 10, 16, 20, 25, 32
Tripping curve B,C,D
High shot-ciruit breaking capacity 4.5kA
Rated frequency 50/60Hz
Electro-mechanical endurance 4000
Terminal Connection Height H=21mm
Fastening torque 1 .2Nm
Connection terminal Pillar terminal with clamp
Terms of Payment L/C, Western Union, MoneyGram, T/T, Paypal







Characteristic Curve
