Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.



Categories Electrical Distribution Box
material metal
Product name 8 way distribution box
Certificate CE
Standard IEC60898
Rated voltage 230/400V
inside intallation terminal
IP grade IP20
Rated frequency 50/60 Hz
Mounting ways screw mounting on the wall
weisite www.sofielec.com

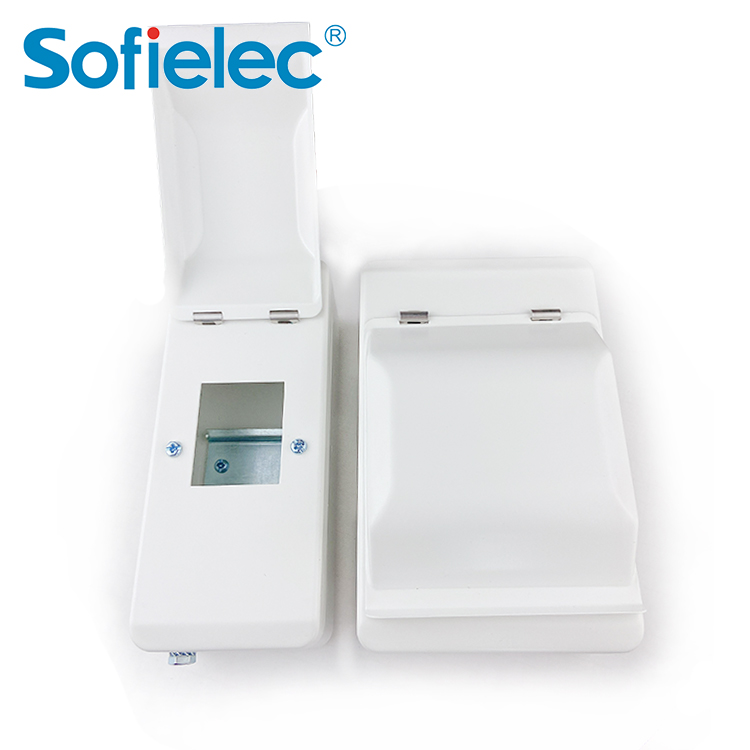

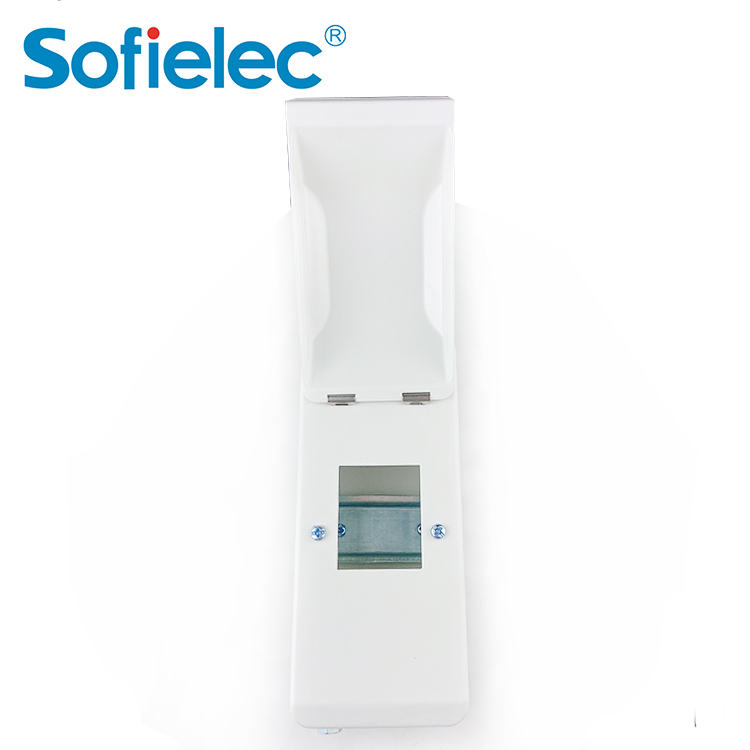

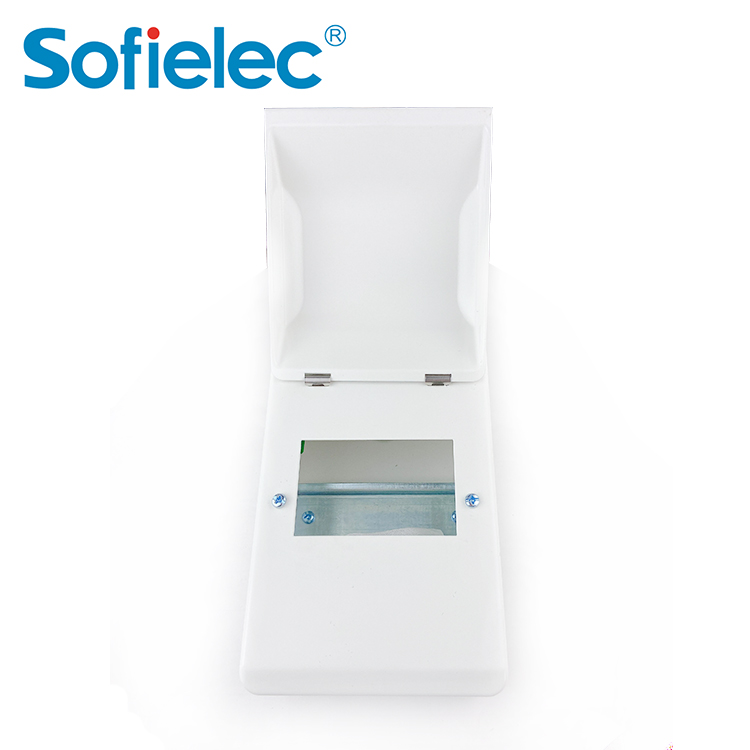

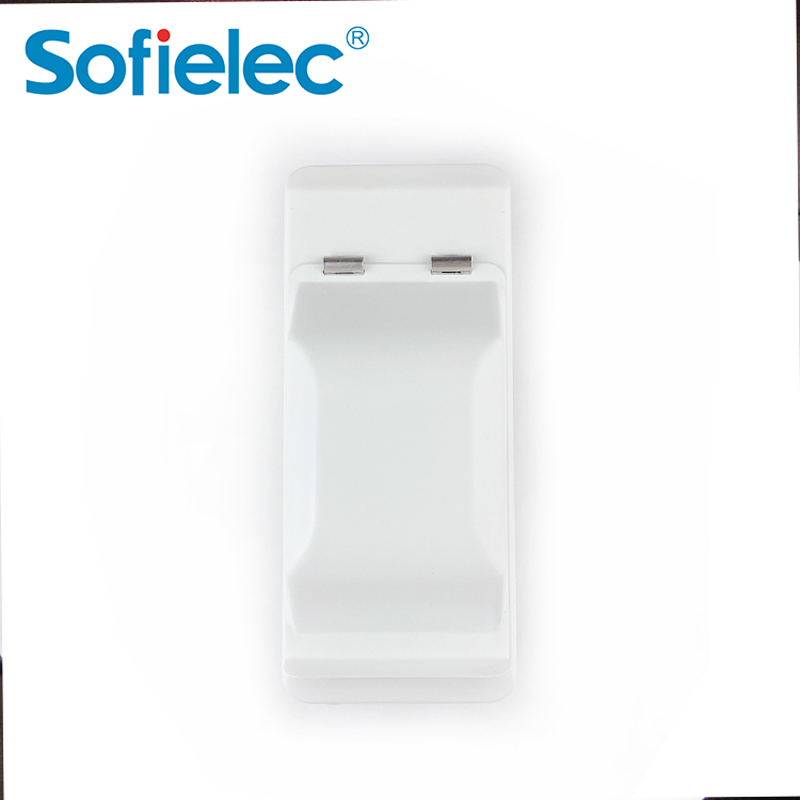

 Product picture

2 way England type IP20 Metal clad distribution box

General Characteristics

2MEC Series Metal consumer unit is designed for safe, reliable distribution and
control of electrical power as service entrance equipment in residential, commercial
and light industrial installations. It had reasonable design and economic cost.
1. Manufactured from powder coated sheet steel with Epoxy polyester coating.
2. Neutral & Earth terminal link bars assembled.
3. Preformed cables or Flexible wires connected on Ferruled terminals.
4. IP40 standard suit to indoor use only.
5. Standard: EN 60989 & EN 61008.

Technical Data

Metal clad Modular Enclosure Dimensions(mm)

Part No.

Height

Width

Depth

MEC2

145mm

80mm

62mm

MEC2M

145mm

80mm

62mm

MEC4

225mm

115mm

62mm

MEC4M

240mm

130mm

85mm(105mm inc lid)

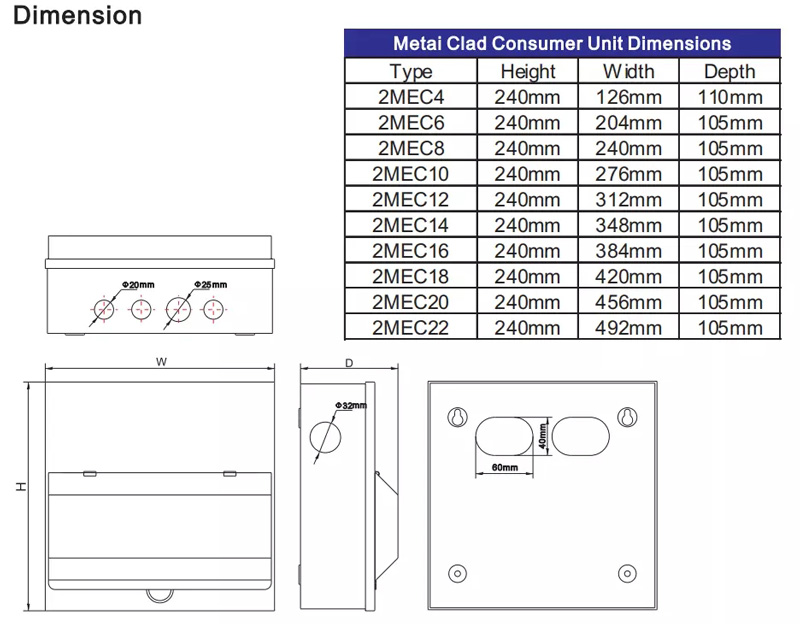

Dimension

Dimension:Metai Clad Consumer Unit Dimensoions,Type,Height,Width,Depth
