| Categories | Electrical Distribution Box |
| Model | 2MEC |

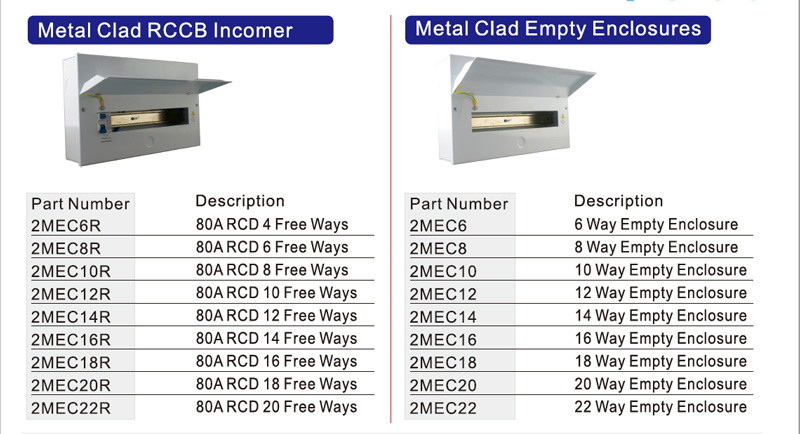

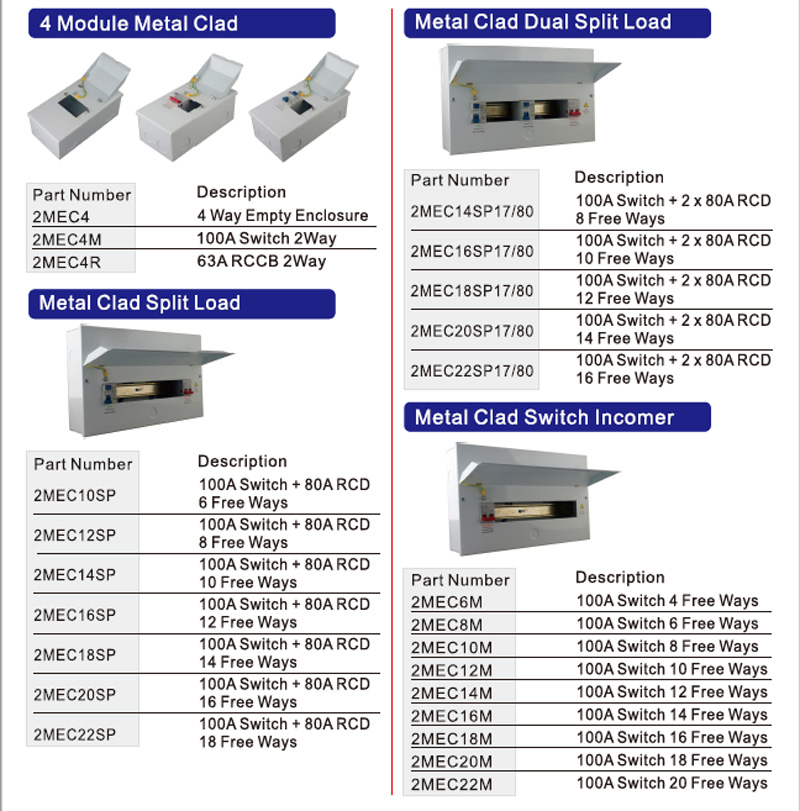

| 2MEC4 | 4 Way Empty Enclosure |

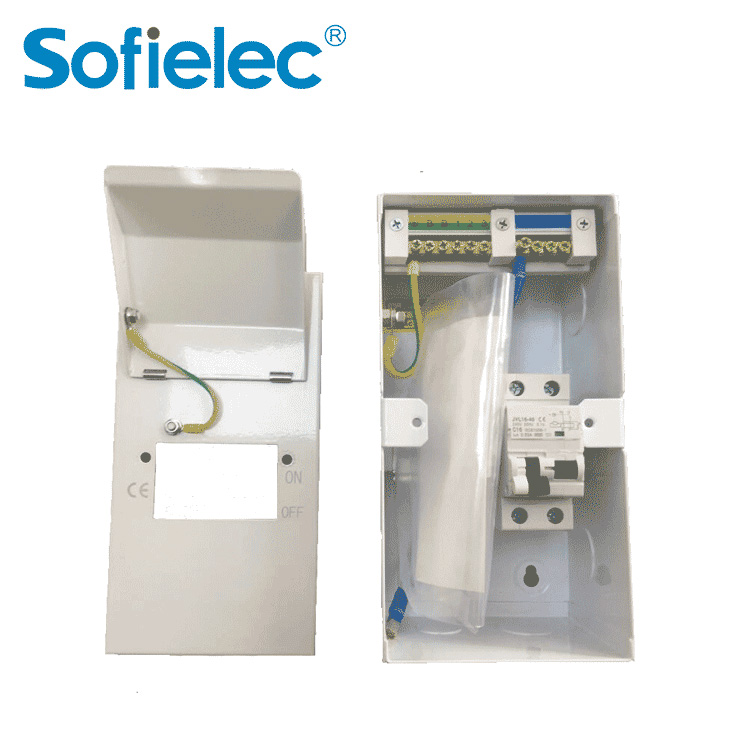

| 2MEC4M | 100A Switch 2Way |
| 2MEC4R | 65A RCCB 3Way |
| 2MEC N SP | 100A Switch+80A RCD N Free Ways |
| 2MEC N SP 17/80 | 100A Switch+2*80A RCD N Free Ways |
| 2MEC N M | 100A Switch N Free Ways |
| 2MEC N R | 80A RCD N Free Ways |
| 2MEC N | N Way Empty Enclosure |
General Characteristics

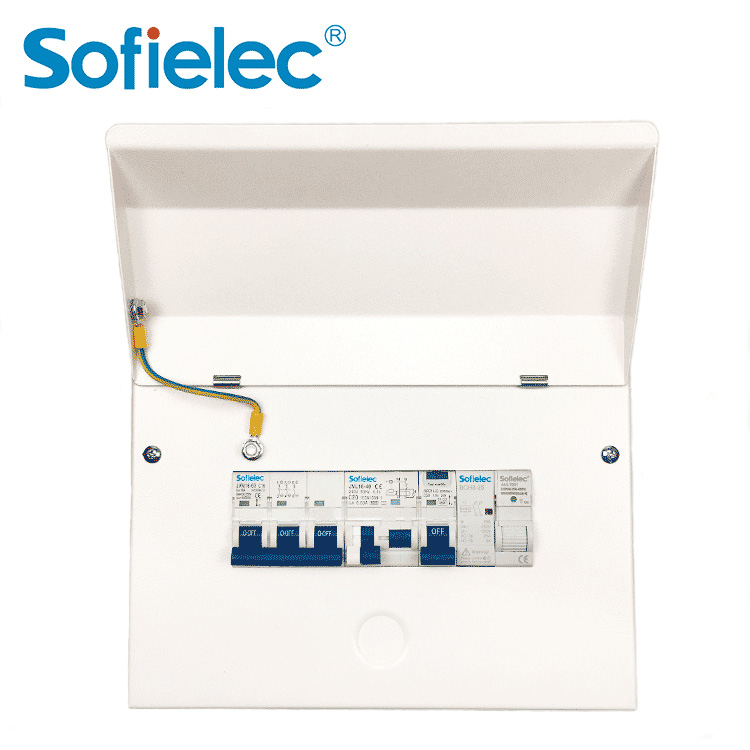

2MEC Series Metal consumer unit is designed for safe,reliable distribution and control of electrical power as service entrance equipment in residential,commercial and light industrial installations.It had reasonable design and economic cost.
|
Manufactured from powder coated sheet steel with Epoxy polywster coating |
|||
|

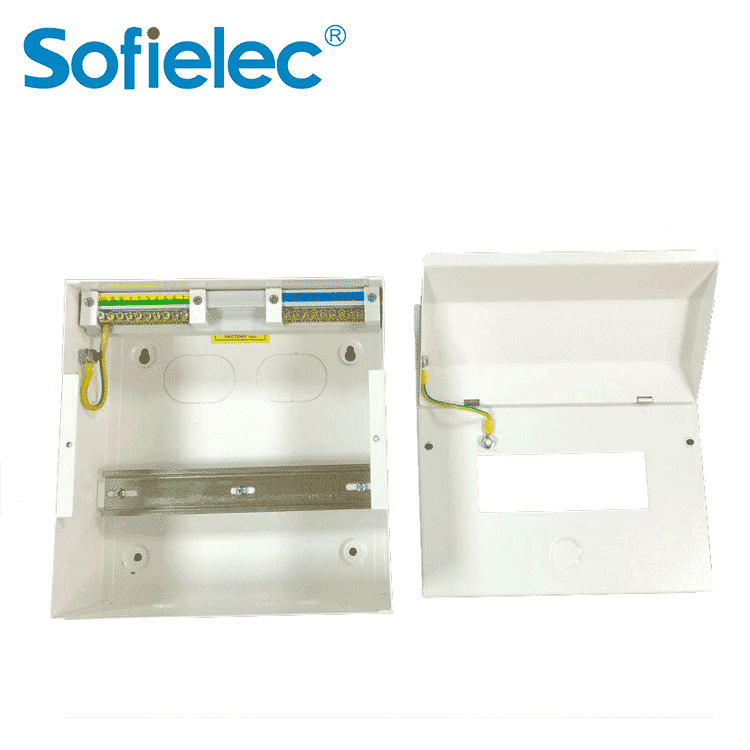

Neutral&Earth terminal link bars assembled |
|||
|
Preformed cables or Flexible wires connected on Ferruled terminals |
|||
|
IP40 standard suit to indoor use only |
|||
|
Standard:EN 60989 & EN61008 |
Installation Mode
| Metai Clad Consumer Unit Dimensions | |||
| Type | Height | Width | Depth |
| 2MEC4 | 240mm | 126mm | 110mm |
| 2MEC6 | 240mm | 204mm | 105mm |
| 2MEC8 | 240mm | 240mm | 105mm |
| 2MEC10 | 240mm | 276mm | 105mm |
| 2MEC12 | 240mm | 312mm | 105mm |
| 2MEC14 | 240mm | 348mm | 105mm |
| 2MEC16 | 240mm | 384mm | 105mm |
| 2MEC18 | 240mm | 420mm | 105mm |
| 2MEC20 | 240mm | 456mm | 105mm |
| 2MEC22 | 240mm | 492mm | 105mm |

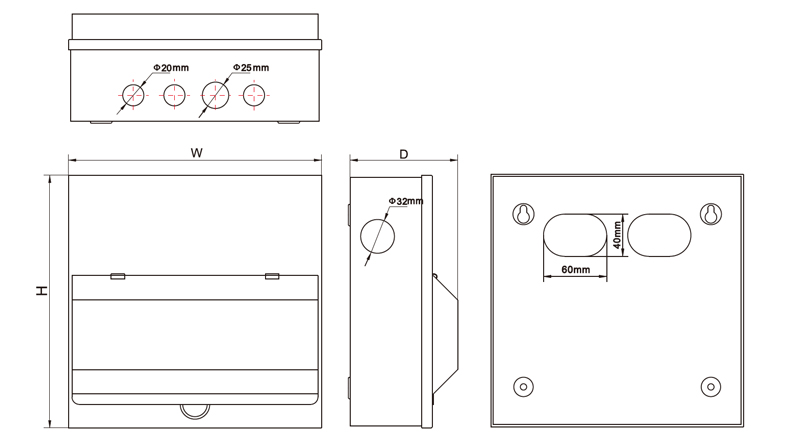

Dimension
