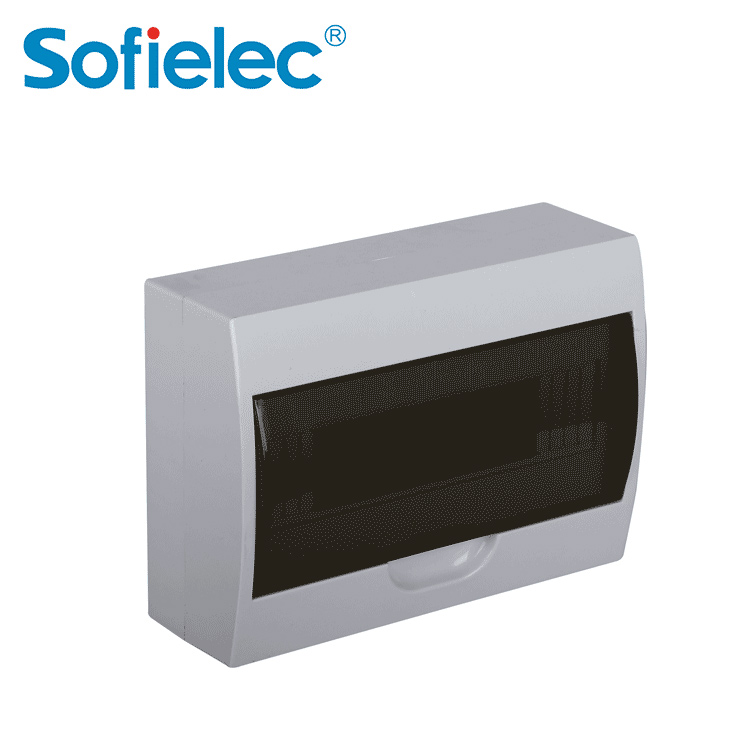

| Categories | Electrical Distribution Box |
| Model | TXM |
| Rated current | 63(A) |
| Short-circuit making current | 10 (KA) |
| Shell protection grade | IP30 |
| Shell material | ABS polymeric carbon |
| Color | White |
| Face covering | Transparent |

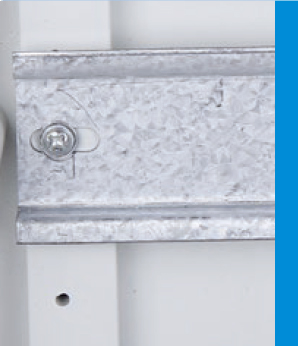

General

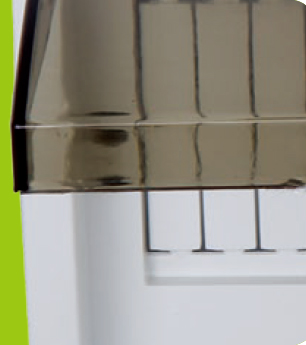

Overall panel design is luxury and attractive, the face covering colors are dark green and brown (provided according to the color
needs of the different interior residential designs except for thestandard colors). The design of the face covering gives a noble
and elegant feeling. Pure Ivory, high strength, never change color, transparent material is PC. Fixed frame, simple structure,
and easy installation.
Parameters
|
Rated current:63 (A) |
|
|
Short-circuit making current: 10 (KA) |
|
|
Shell protection grade: IP30 |
|
|
Color: White |
|
|
Face covering: Transparent |
|
|
Shell material: ABS polymeric carbon |

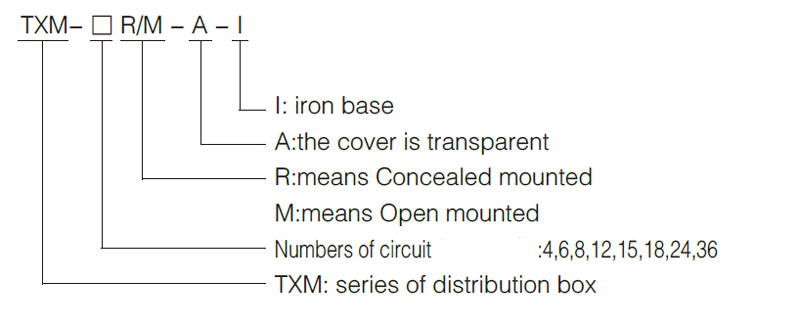

Model Description
Concealed mounted
| Model | Secret Installation | Dimensions | ||
| L(mm) | W(mm) | H(mm) | ||
| TXM-4RAI | 1BLOCK | 136 | 222 | 100 |
| TXM-6RAI | 1BLOCK | 170 | 222 | 100 |
| TXM-8RAI | 1BLOCK | 205 | 222 | 100 |
| TXM-12RAI | 1BLOCK | 280 | 222 | 100 |
| TXM-15RAI | 1BLOCK | 334 | 222 | 100 |
| TXM-18RAI | 1BLOCK | 400 | 255 | 100 |
| TXM-24RAI | 2BLOCK | 300 | 355 | 100 |
| TXM-36RAI | 2BLOCK | 481 | 300 | 100 |
Open mounted
| Model | Secret Installation | Dimensions | ||
| L(mm) | W(mm) | H(mm) | ||
| TXM-4MAI | 1BLOCK | 136 | 222 | 110 |
| TXM-6MAI | 1BLOCK | 170 | 222 | 110 |
| TXM-8MAI | 1BLOCK | 205 | 222 | 110 |
| TXM-12MAI | 1BLOCK | 285 | 222 | 110 |
| TXM-15MAI | 1BLOCK | 334 | 222 | 110 |
| TXM-18MAI | 1BLOCK | 400 | 255 | 110 |
| TXM-24MAI | 2BLOCK | 300 | 355 | 110 |
| TXM-36MAI | 2BLOCK | 481 | 300 | 110 |

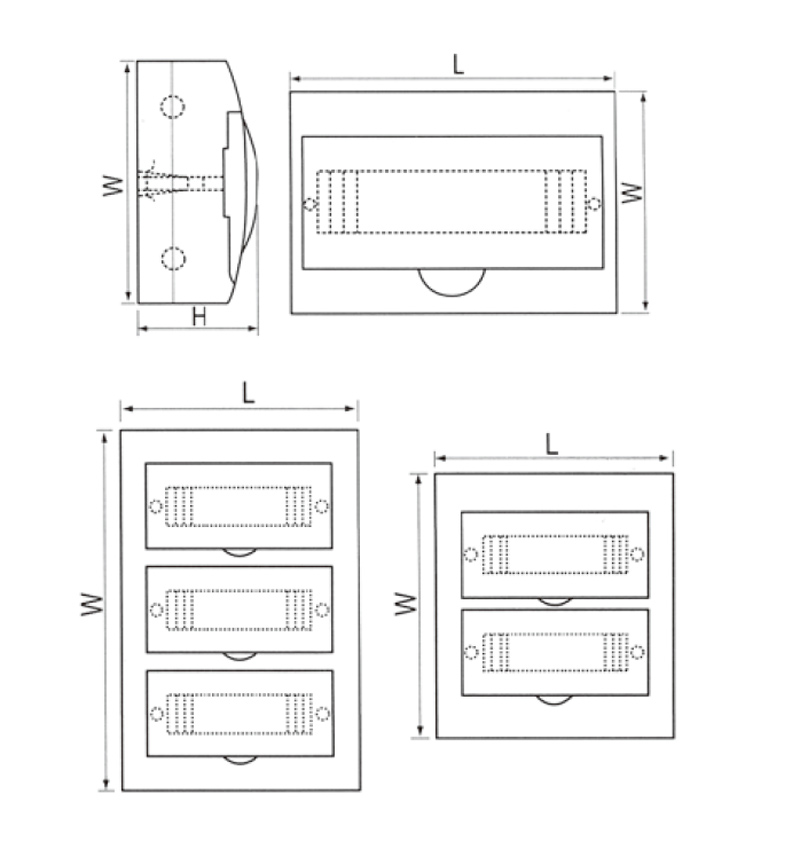

Dimension
