High Quality IP68 AC 220V HT-M15-6 FLOAT SWITCH

High Quality IP68 AC 220V HT-M15-6 FLOAT SWITCH
High Quality IP68 AC 220V HT-M15-6 FLOAT SWITCH

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.



Categories FLOAT SWITCH
Model HT-M15-6
Rated voltage AC110/220V
Max.Current AC 16(4)A
Frequency 50/60Hz
Max.Using temperature 60℃
Protection Degree IP68



TECHNICAL DATA

1.Rated voltage :AC 110/220V

2.Max.Current:AC16(4)A

3.Frequency:50/60Hz

4.Max.Using Temperature:60℃

5.Protection Degree:IP68



DESCRIPTIONS

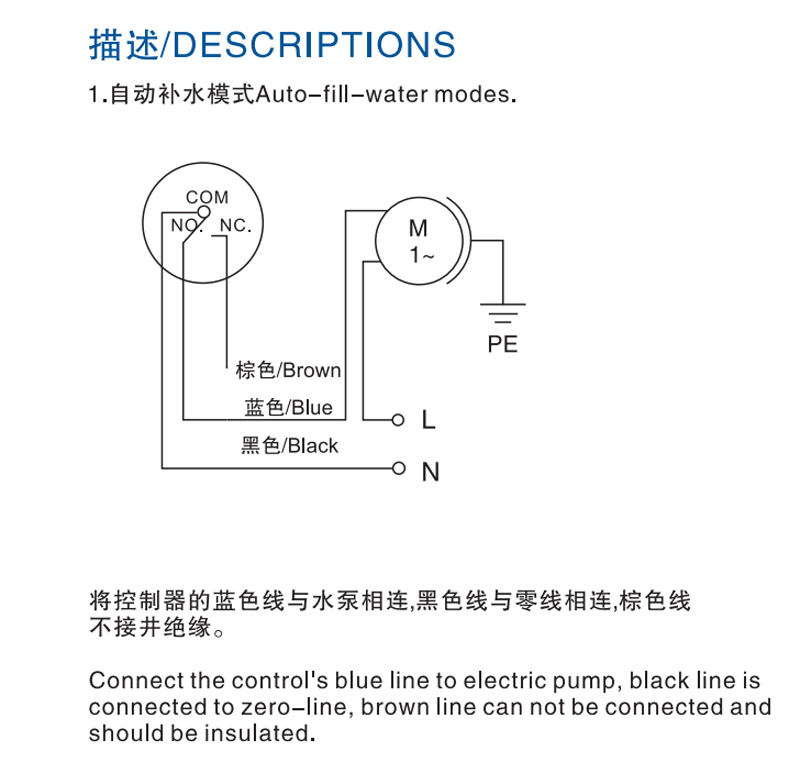

DESCRIPTIONS:Auto-fill-water modes

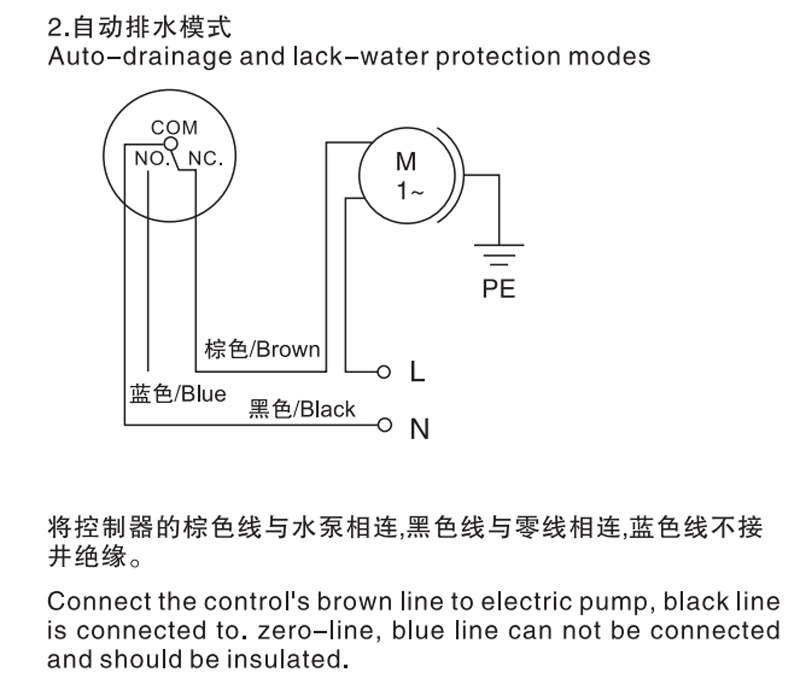

Auto-drainage and lack-water protection modes

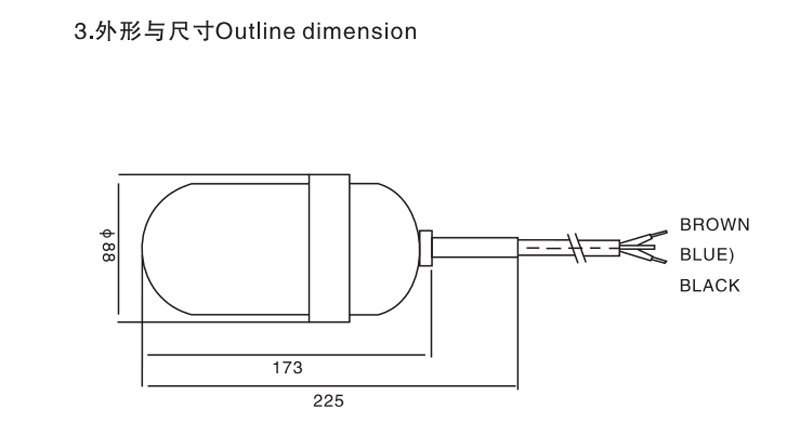

Outline dimension
