Categories
| Categories | Fuse |
| Model | Semiconductor |
| Rated voltage | 500V AC/DC |
| Rated Breaking Capacity | 120KA AC,50KA DC |
| Standard specifications | IEC60269-4-1 |

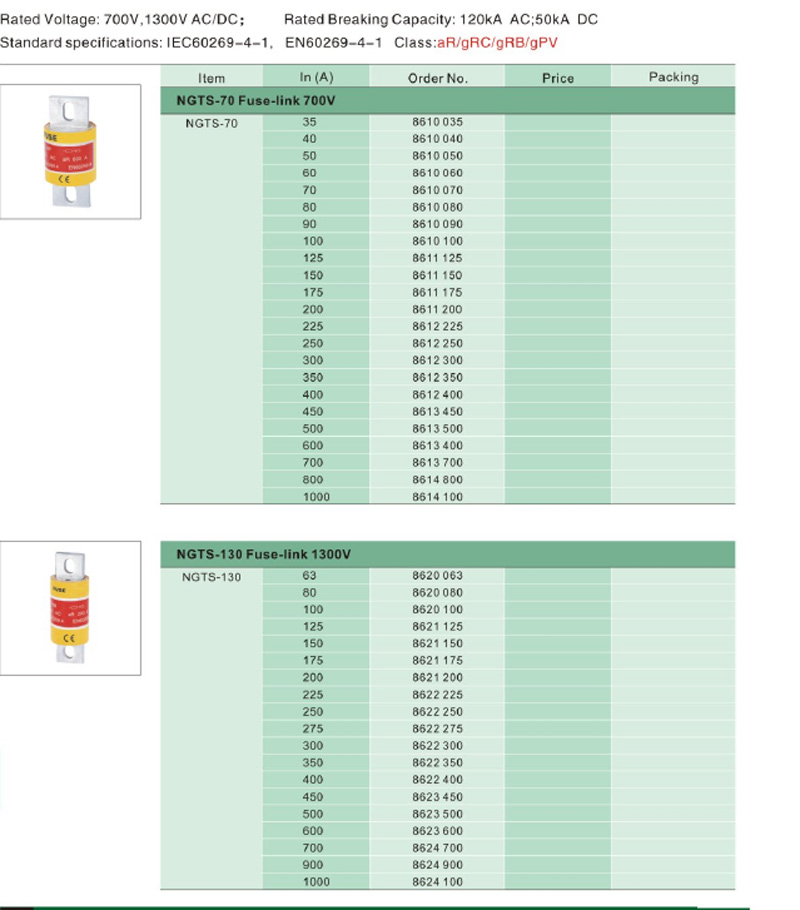

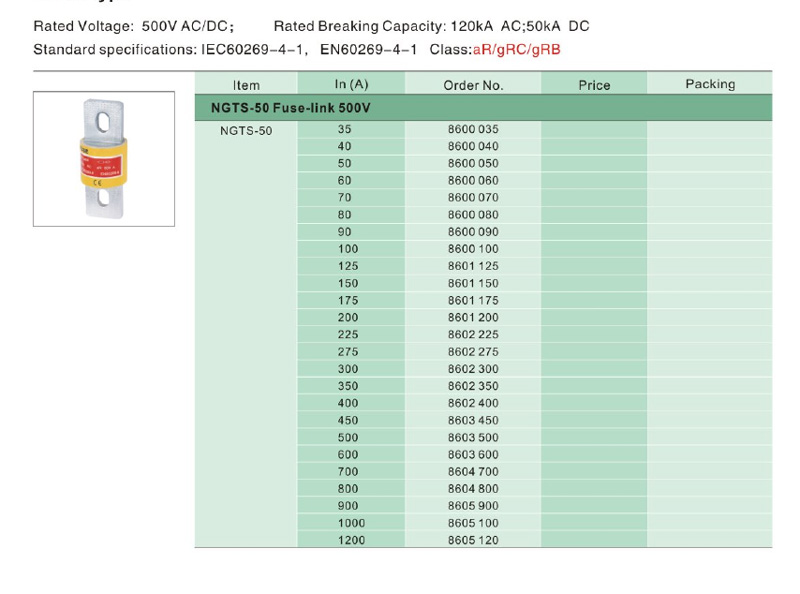

PRODUCT
NGTS Type

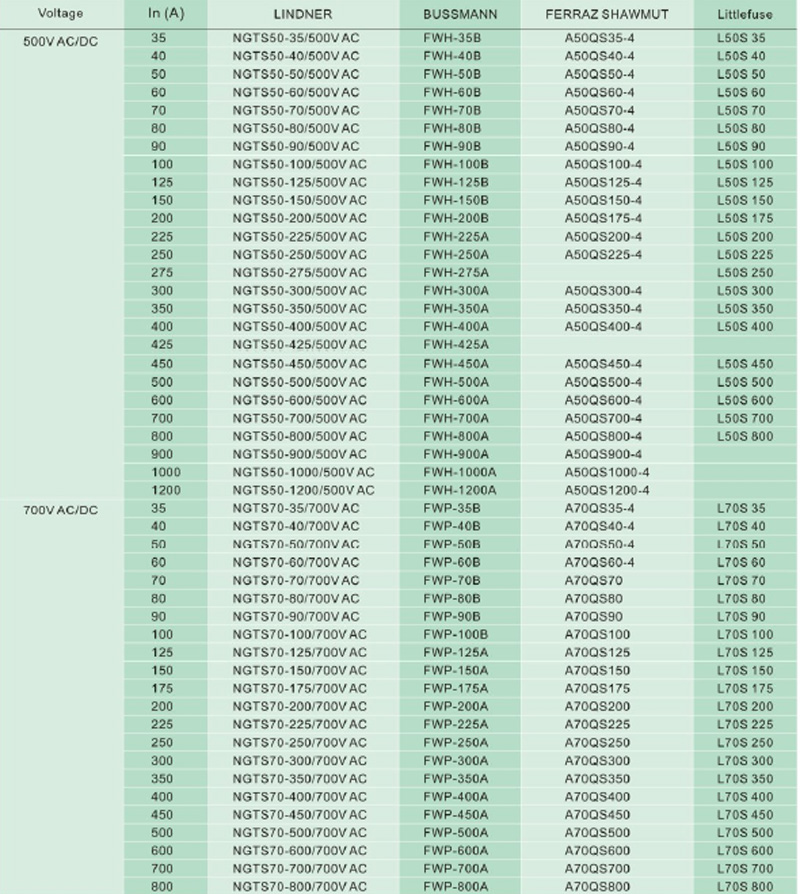

Compartives

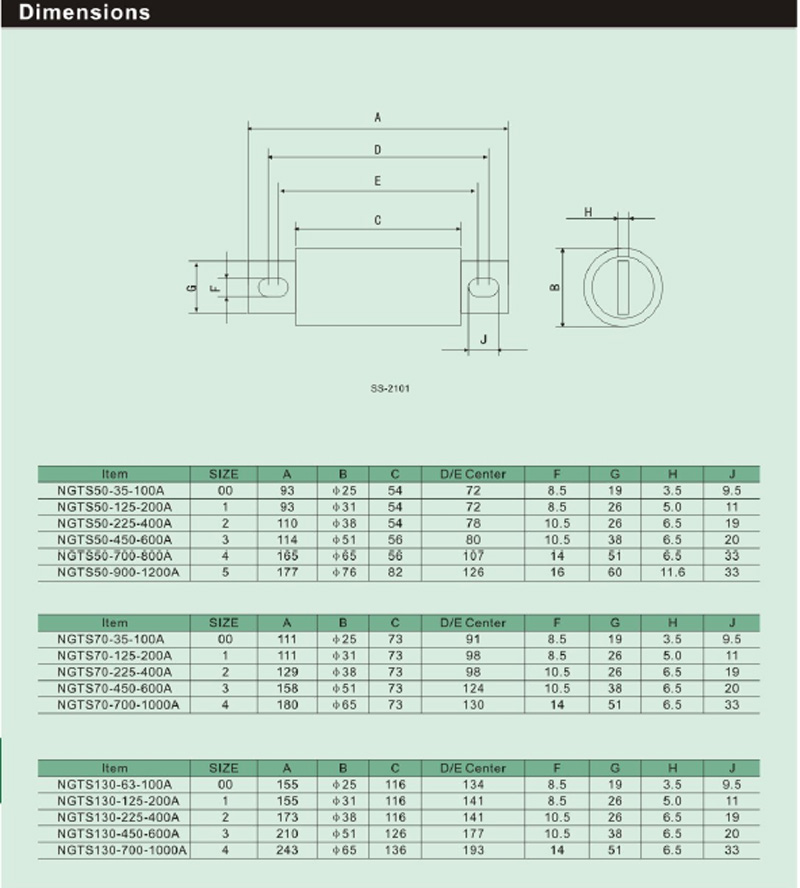

DIMENSIONS
