Categories
| Categories | Fuse |
| Model | Semiconduvtor |
| Rated Voltage | 240V AC,120V DC;690V AC,350V DC |
| Rated breaking capacity | 100KA |
| Standard specifications | IEC60269-4-1 BS88-4 |

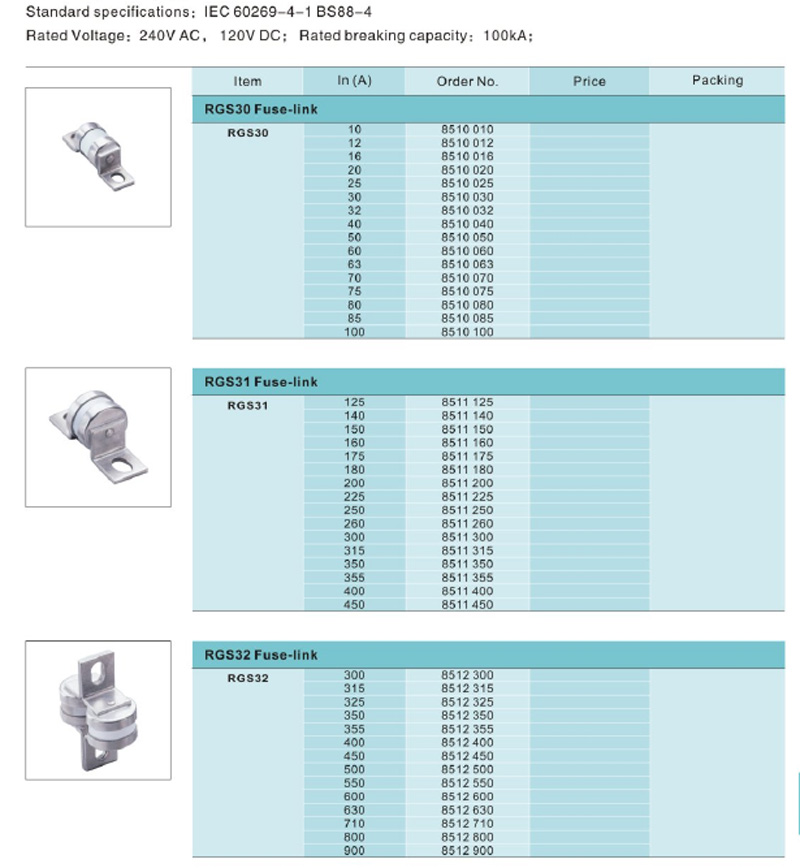

RGS3(LSCA)Type

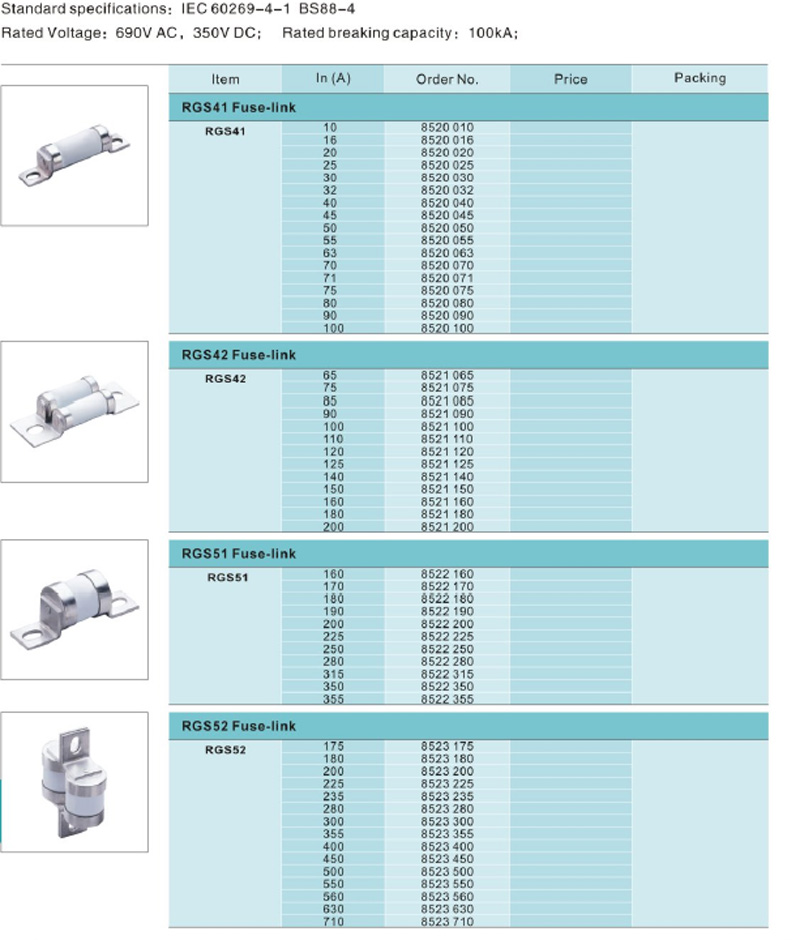

RGS4,RGS5(LSCB)Type
Comparatives
| LINDNER | LAWSON | BUSSMANN | SIBA | GE POWER | MEN | FERRAZ | DORMAN |
| 8510 010 | LSCA10 | LET10 | 10FNA | N076648 | DSL10 | ||
| 8510 016 | LSCA16 | LET16 | 16FNA | Q077650 | DSL16 | ||
| 8510 020 | LSCA20 | LET20 | 5005306/25 | GSA25 | 20FNA | L097507 | DSL20 |
| 8510 025 | LSCA25 | LET25 | 25FNA | R076651 | DSL25 | ||
| 8510 032 | LSCA32 | LET32 | 32FNA | DSL32 | |||
| 8510 040 | LSCA40 | LET40 | GSA40 | 40FNA | T076653 | DSL40 | |
| 8510 050 | LSCA50 | LET50 | 5005306/50 | GSA50 | 50FNA | V076654 | DSL50 |
| 8510 063 | LSCA63 | LET63 | 63FNA | Y08558 | |||
| 8510 080 | LSCA80 | LET80 | 80FNA | Z085559 | DSL100 | ||
| 8510 100 | LSCA100 | LET100 | 5005306/100 | GSA200 | 100FNA | Y08558 | |
| 8511 125 | LSCA125 | LET125 | GSA125 | ||||
| 8511 160 | LSCA160 | LMT160 | 160FPA | DST200 | |||
| 8511 200 | LSCA200 | LMT200 | 5005406/200 | GSA200 | 200FPA | R082466 | DST250 |
| 8511 250 | LSCA250 | LMT250 | GSA250 | 250FPA | N082468 | DST250 | |
| 8511 315 | LSCA315 | LMT315 | GSA315 | 315FPA | M082466 | ||
| 8511 350 | LSCA350 | LMT350 | GSA350 | DSTT400 | |||
| 8511 400 | LSCA400 | LMMT400 | GSA400 | 400FPA2 | H082462 | DSTT500 | |
| 8511 500 | LSCA500 | LMMT500 | GSA500 | 500FPA2 | G082461 | DSTT630 | |
| 8511 630 | LSCA630 | LMMT630 | GSA630 | 630FPA2 | F082460 | DSG10 | |
| 8520 016 | LSCB16 | 10ET | 5007306/10 | 10FRB | DSG15 | ||
| 8520 020 | LSCB20 | 15ET | 5007306/15 | GSGB16 | 16FRB | G75863 | DSG20 |
| 8520 025 | LSCB25 | 20ET | 5007306/20 | 20FRB | H075884 | DSG25 | |
| 8520 032 | LSCB32 | 25ET | 5007306/25 | GSB25 | 25FRB | J075885 | DSG32 |
| 8520 040 | LSCB40 | 32ET | 5007306/32 | GSGB30 | 32FRB | K075886 | DSG40 |
| 8520 050 | LSCB50 | 40ET | 5007306/40 | GSGB40 | 40FRB | M075888 | DSG56 |
| 8520 063 | LSCB63 | 56ET | 5007306/56 | GSB55 | 56FRB | Q075891 | DSG63 |
| 8520 080 | LSCB80 | 63ET | 5007306/63 | GSGB63 | 63FRB | R075892 | DSG80 |
| 8520 100 | LSCB100 | 80ET | 5007306/80 | GSB80 | 80FRB | T075892 | DSG80 |
| 8521 125 | LSCBT125 | 100ET | 5007306/100 | GSB100 | 100FRB | DSGG125 | |
| 8521 140 | LSCBT140 | 125ET | GSGB125 | 125FTB2 | B099959 | DSGG140 | |
| 8521 150 | LSCBT150 | 140ET | 140FTB2 | J075908 | |||
| 8521 160 | LSCBT160 | GSGB150 | DSGG160 | ||||
| 8521 180 | LSCBT280 | 160ET | GSGB160 | 160FTB2 | K705909 | ||
| 8521 200 | LSCBT200 | DSGG200 | |||||
| 8522 200 | LSCB200 | 200ET | GSGB200 | 200FTB2 | DSM200 | ||
| 8522 225 | LSCB225 | 200MT | 5007406/200 | GSB200 | 200FUB | T097169 | |
| 8522 250 | LSCB250 | 250MT | 5007406/250 | GSB250 | DSM250 | ||
| 8522 315 | LSCB315 | 315MT | 5007406/315 | 250FUB | W097171 | DSM315 | |
| 8522 355 | LSCB355 | 355MT | 5007406/355 | GSGB350 | 315FUB | B097176 | DSM355 |
| 8523 350 | LSCBD350 | 5007406/350 | GSB400 | 355FUN | C097177 | ||
| 8523 400 | LSCBD400 | 400MMT | 5007406/400 | GSB500 | 400FUB2 | T097284 | DSMM400 |
| 8523 630 | LSCBD500 | 500MMT | 5007406/500 | 500FUN2 | Z097289 | DSMM500 | |
| 8523 630 | LSCBD630 | 630MMT | 5007406/630 | 630FUB2 | B097291 | DSMM630 |

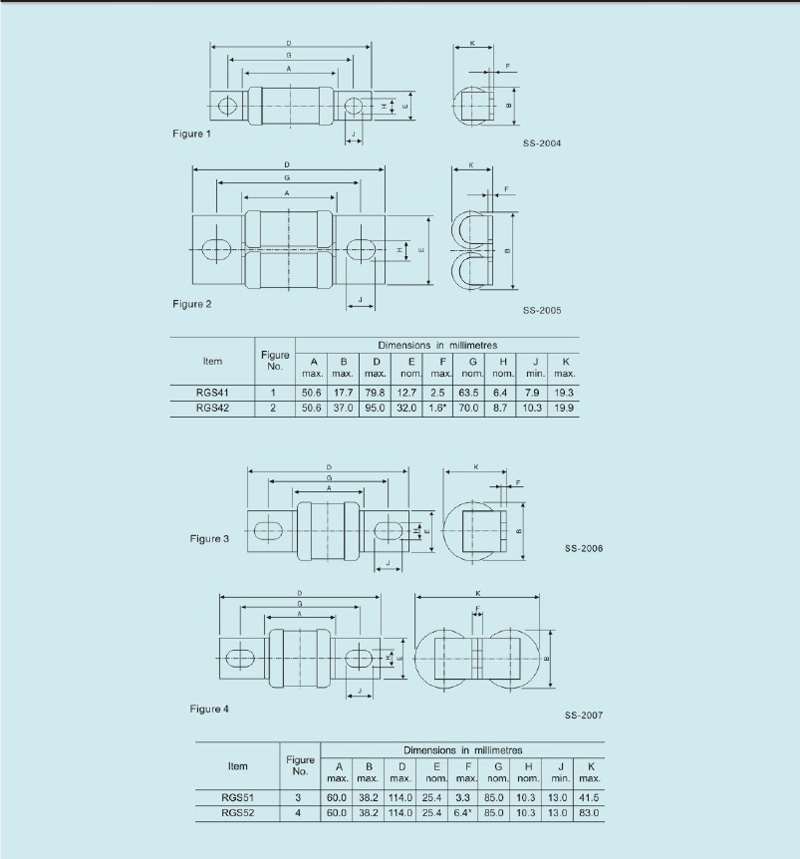

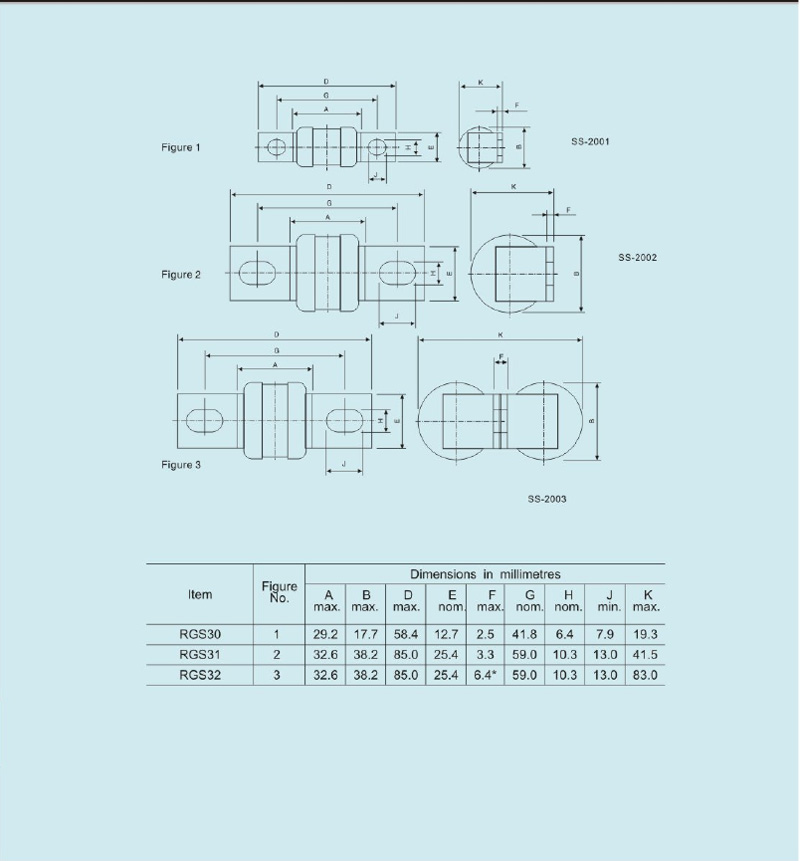

Dimensions
