Categories
| Categories | Fuse |
| Model | STI STC |
| Optional | 1.with indicator |
| Optional | 2.with striker |
| Optional | 1P,1P+N,2P,3P,3P+N,4P |
CYLINDRICAL FUSE FOR 10*38

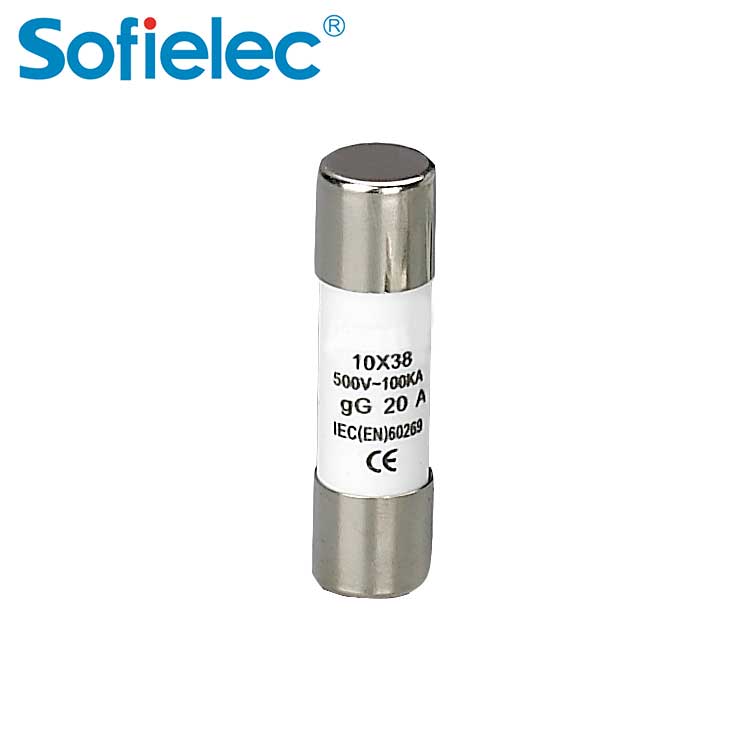

CYLINDRICAL FUSE-LINK
| 500/690V ac 80kA IEC60269 gG-gL,aM,aR/gR | ||||
| Fuse Link | ||||
| ltem | ln | class | ||
| 8.5×31.5 | 1-20A | gG-gL | - | - |
| 10×38 | 1-32A | gG-gL | aM | aR/gR |
| 14×51 | 2-63A | gG-gL | aM | aR/gR |
| 22×58 | 10-125A | gG-gL | aM | aR/gR |

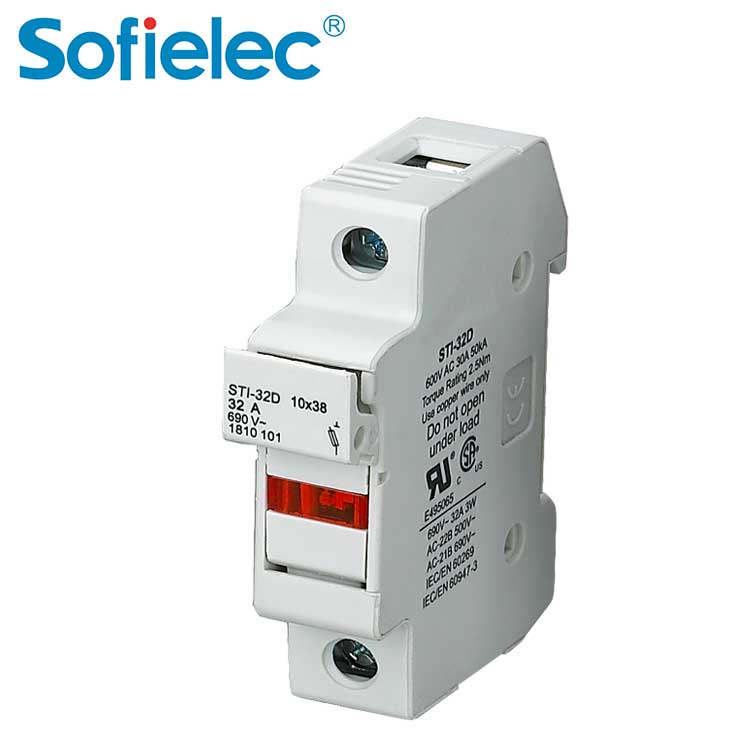

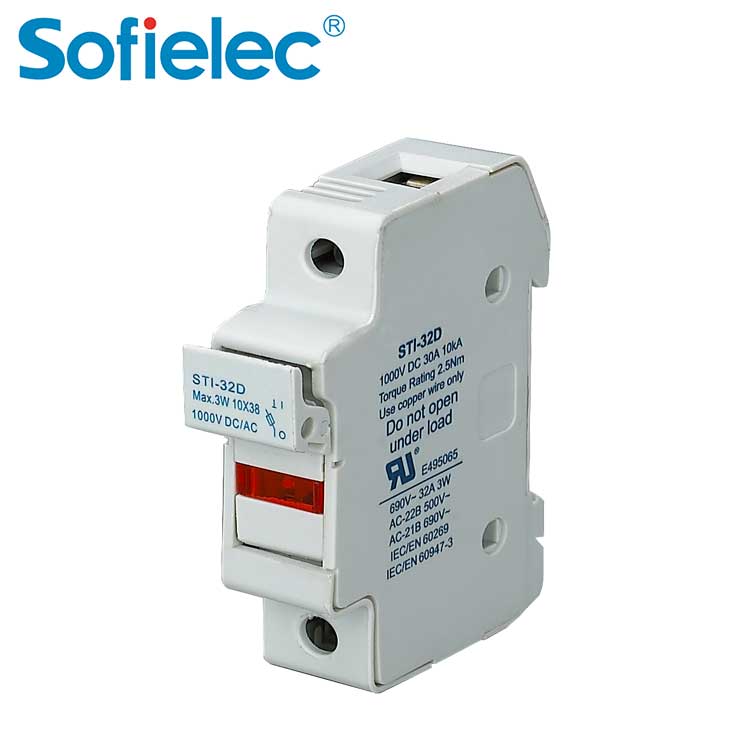

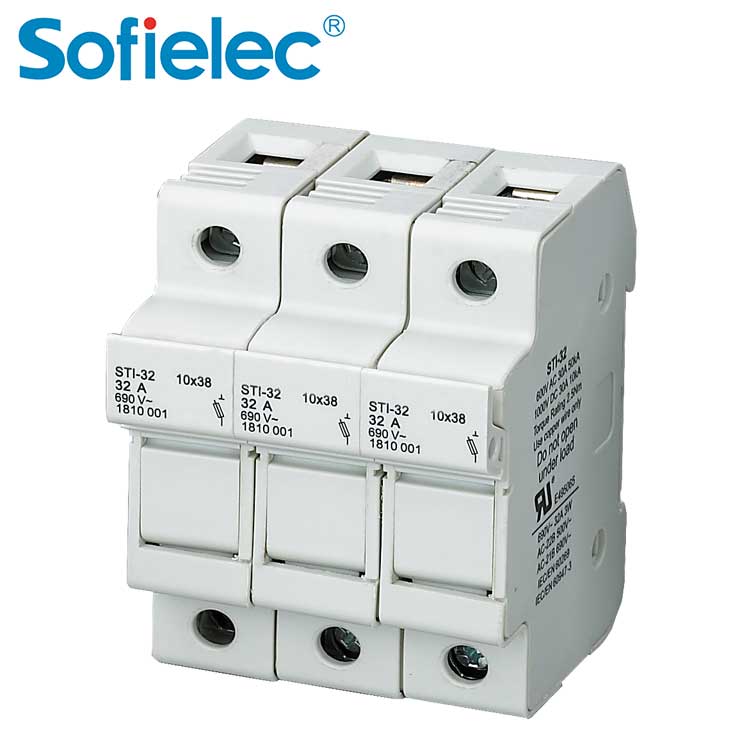

FUSE-HOLDER
| 690V ac up to 125A IEC60269-2 IEC60947-3 | |
| Fuse holder | |
| without lamp | with lamp |
| STI-32 | STI-3D |
| STI-63 | STI-63D |
| STI-125 | STI-125D |
CYLINDRICAL FUSE:NF STANDARD(for Frence)
fuse holder:for Espanol Market
