Ouline
SAK/JXB series combined terminal blocks mainly use Germany Woodmeler's con-nection Technology, and be designed and made at home. Technology targets conforms to the standard of IEC60947-1, IEC60947-7-1, GB14048.1. However, JXB is noly for mounting on, increase the high current terminal series.
Feature
1. reasonable installing aes1gn, surog v1 SAK type can be mounted on the guide of G and TH type.
2. small volume, full specification JXB's big current terminal use reinforced accessories to guarantee the contact reliable.
3. the stand uses creamed-yellow and grey uses color, the connecting-ground pedestal uses yellow and green color with more modern sense.

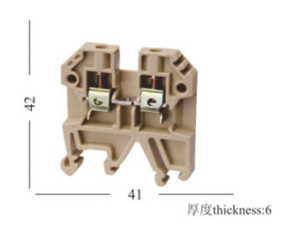

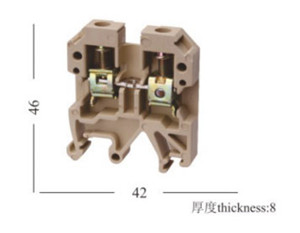

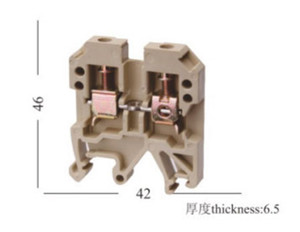

SAK-2.5EN | SAK-4EN | SAK-6EN |
0.2-2.5mm2 | 0.2-4mm2 | 0.2-6mm2 |
current: 24A voltage: 800V |
current: 32A voltage: 800V |
current: 41A voltage: 800V |

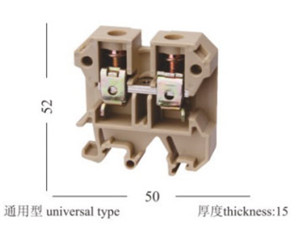

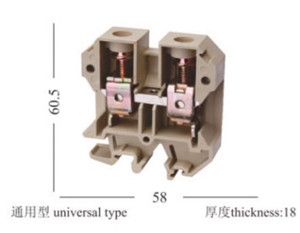

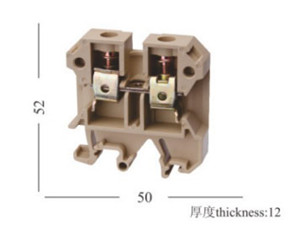

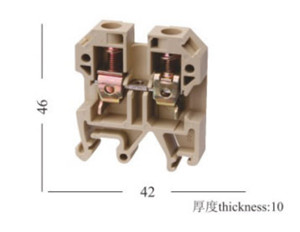

AP2.5 | AP4 | AP6 |
2.5EN 2.5Q2-10 | 4EN 4Q2-10 | 6ENQ2-10 |
EW35 | EW35 | EW35 |
DEK5(1…10) | DEK5(1…10) | DEK5(1…10) |
SAK-10EN | SAK-16EN | SAK-25EN |
0.2-10mm2 | 0.2-16mm2 | 0.2-25mm2 |
current: 57A voltage: 800V |
current: 76A voltage: 800V |
current: 100A voltage: 800V |

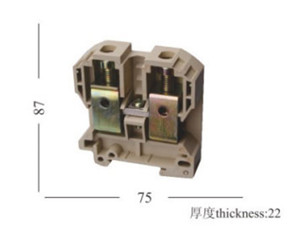

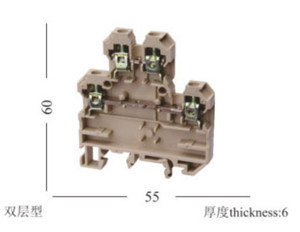

AP10 | AP16 | AP10 |
10ENQ2-10 | 16ENQ2-10 | 25ENQ2-10 |
EW35 | EW35 | EW35 |
DEK5(1…10) | DEK5(1…10) | DEK5(1…10) |
SAK-35EN | SAK-70EN | DK4Q/35 |
0.2-35mm2 | 0.2-95mm2 | 0.2-4mm2 |
current: 125A voltage: 800V |
current: 100A voltage: 800V |
current: 32A voltage: 500V |

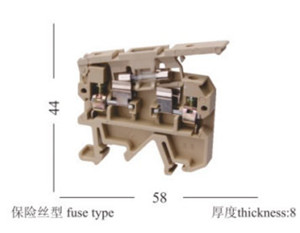

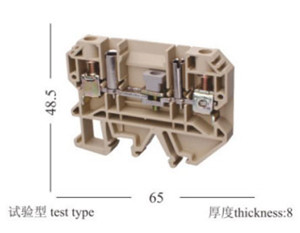

AP35 | AP95/35 | AP-DK4 |
35ENQ2-10 | 70Q Q2-10 | DK4Q2-10 |
EW35 | EW35 | EW35 |
DEK5(1…10) | DEK5(1…10) | DEK5(1…10) |
SAK-RD | SAK-WYL6/1 | JXB-2.5/35 |
0.2-4mm2 | 0.2-6mm2 | 0.2-2.5mm2 |
current: 6.3A voltage: 500V |
current: 41A voltage: 500V |
current: 24A voltage: 800V |

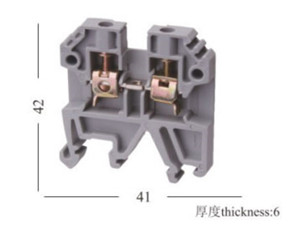

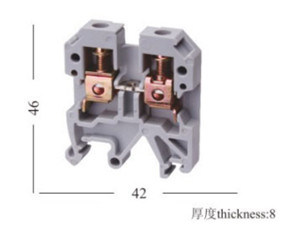

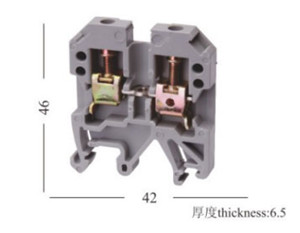

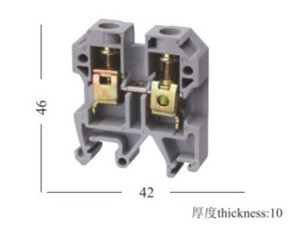

AP1.5 | AP-WTL | AP2.5 |
WTLQ2-10 | 2.5Q2-10 | |
EW35 | EW35 | EW35 |
DEK5(1…10) | DEK5(1…10) | DEK5(1…10) |
JXB-4/35 | JXB-6/35 | JXB-10/35 |
0.2-4mm2 | 0.2-6mm2 | 0.2-10mm2 |
current: 32A voltage: 800V |
current: 41A voltage: 800V |
current: 57A voltage: 800V |

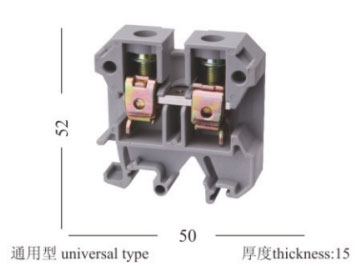

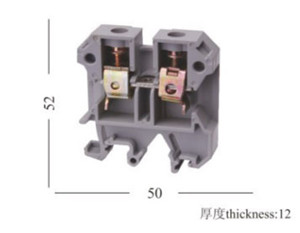

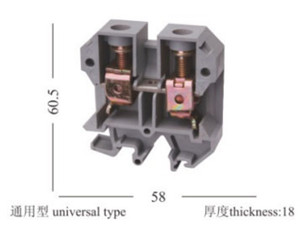

AP4 | AP6 | AP10 |
4Q2-10 | 6ENQ2-10 | 10ENQ2-10 |
EW35 | EW35 | EW35 |
DEK5(1…10) | DEK5(1…10) | DEK5(1…10) |
JXB-16/35 | JXB-25/35 | JXB-35/35 |
0.5-16mm2 | 10-25mm2 | 10-35mm2 |
current: 76A voltage: 800V |
current: 100A voltage: 800V |
current: 125A voltage: 800V |

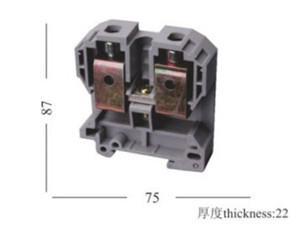

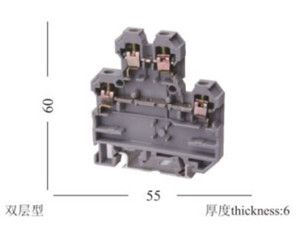

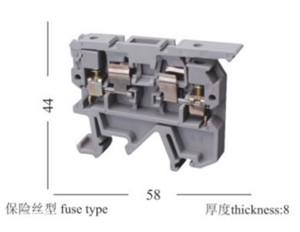

AP16 | AP25 | AP35 |
16ENQ2-10 | 25ENQ2-10 | 35ENQ2-10 |
EW35 | EW35 | EW35 |
DEK5(1…10) | DEK5(1…10) | DEK5(1…10) |
JXB-95/35 | JXB-4/35S1 | JXB-RD |
25-95mm2 | 0.2-4mm2 | 0.2-4mm2 |
current: 192A voltage: 800V |
current: 32A voltage: 500V |
current: 6.3A voltage: 500V |

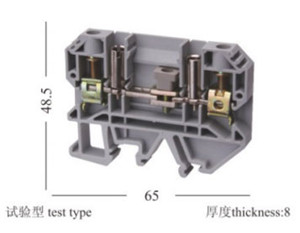

AP95/35 | AP-DK4 | AP1.5 |
70Q Q2-10 | DK4Q2-10 | |
EW35 | EW35 | EW35 |
DEK5(1…10) | DEK5(1…10) | DEK5(1…10) |
JXB-WTL6/1 | ||
0.2-6mm2 | ||
current: 41A voltage: 500V |
||
AP-WTL | ||
WTLQ2-10 | ||
EW35 | ||
DEK5(1…10) |
