| TBC-1006 (100A 6P) | TBC-10010 (100A 10P) | TBC-10012 (100A 12P) |
 |
 |
 |
| wire section: 0.5-25mm2 | wire section: 0.5-25mm2 | wire section: 0.5-25mm2 |
| rated current/voltage: 100A/660V | rated current/voltage: 100A/660V | rated current/voltage: 100A/660V |
| thick / wide / high: 153/43/37mm | thick / wide / high: 238/44/35mm | thick / wide / high: 285/43/35mm |

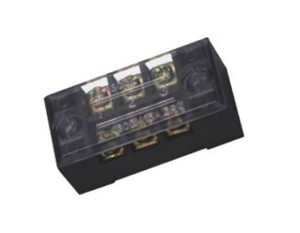

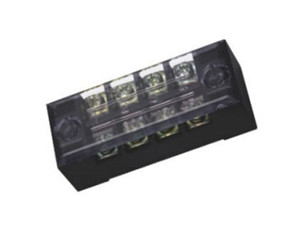

| TBC-1503 (15A 3P) | TBC-1504 (15A 4P) | TBC-10012 (15A 5P) |
 |
 |
 |
| wire section: 0.5-1.5mm2 | wire section: 0.5-1.5mm2 | wire section: 0.5-1.5mm2 |
| rated current/voltage: 15A/600V | rated current/voltage: 15A/600V | rated current/voltage: 15A/600V |
| thick / wide / high: 46.5/22/17.5mm | thick / wide / high: 55.5/22/17.5mm | thick / wide / high: 63.5/22/17.5mm |

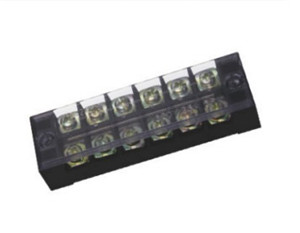

| TBC-1506 (15A 6P) | TBC-1508 (15A 8P) | TBC-1505 (15A 10P) |
 |
 |
 |
| wire section: 0.5-1.5mm2 | wire section: 0.5-1.5mm2 | wire section: 0.5-1.5mm2 |
| rated current/voltage: 15A/600V | rated current/voltage: 15A/600V | rated current/voltage: 15A/600V |
| thick / wide / high: 73.5/22/17.5mm | thick / wide / high: 90.3/22/17.5mm | thick / wide / high: 103/22/17.5mm |
| TBC-1506 (15A 6P) | TBC-1508 (15A 8P) | TBC-1510 (15A 10P) |
 |
 |
 |
| wire section: 0.5-1.5mm2 | wire section: 0.5-1.5mm2 | wire section: 0.5-1.5mm2 |
| rated current/voltage: 15A/600V | rated current/voltage: 15A/600V | rated current/voltage: 15A/600V |
| thick / wide / high: 73.5/22/17.5mm | thick / wide / high: 90.3/22/17.5mm | thick / wide / high: 103/22/17.5mm |

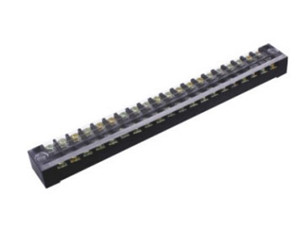

| TBC-1512 (15A 12P) | TBC-1515 (15A 15P) | TBC-1520 (15A 20P) |
 |
 |
 |
| wire section: 0.5-1.5mm2 | wire section: 0.5-1.5mm2 | wire section: 0.5-1.5mm2 |
| rated current/voltage: 15A/600V | rated current/voltage: 15A/600V | rated current/voltage: 15A/600V |
| thick / wide / high: 128/22/17.5mm | thick / wide / high: 150/22/18mm | thick / wide / high: 194/22/17.5mm |

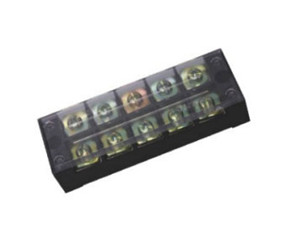

| TBC-2503 (25A 3P) | TBC-2504 (25A 4P) | TBC-2505 (25A 5P) |
 |
 |
 |
| wire section: 0.5-2.5mm2 | wire section: 0.5-2.5mm2 | wire section: 0.5-2.5mm2 |
| rated current/voltage: 25A/600V | rated current/voltage: 25A/600V | rated current/voltage: 25A/600V |
| thick / wide / high: 50/30/19mm | thick / wide / high: 67/30/19mm | thick / wide / high: 79/30/19mm |

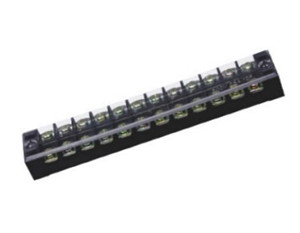

| TBC-2506 (25A 6P) | TBC-2510 (25A 10P) | TBC-2512 (25A 12P) |
 |
 |
 |
| wire section: 0.5-2.5mm2 | wire section: 0.5-2.5mm2 | wire section: 0.5-2.5mm2 |
| rated current/voltage: 25A/600V | rated current/voltage: 25A/600V | rated current/voltage: 25A/600V |
| thick / wide / high: 91/30/19mm | thick / wide / high: 140/30/19mm | thick / wide / high: 163/30/19mm |

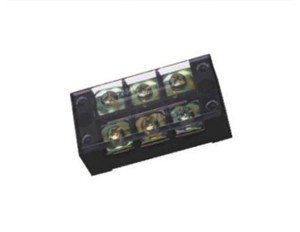

| TBC-2512 (25A 15P) | TBC-4503 (45A 3P) | TBC-4504 (45A 4P) |
 |
 |
 |
| wire section: 0.5-2.5mm2 | wire section: 0.5-4mm2 | wire section: 0.5-4mm2 |
| rated current/voltage: 25A/600V | rated current/voltage: 45A/600V | rated current/voltage: 45A/600V |
| thick / wide / high: 196/31/20mm | thick / wide / high: 70/38/23.5mm | thick / wide / high: 85/38/23.5mm |
| TBC-4505 (45A 5P) | TBC-4506 (45A 6P) | TBC-4510 (45A 10P) |
 |
 |
 |
| wire section: 0.5-4mm2 | wire section: 0.5-4mm2 | wire section: 0.5-4mm2 |
| rated current/voltage: 45A/600V | rated current/voltage: 45A/600V | rated current/voltage: 45A/600V |
| thick / wide / high: 100/38/23.5mm | thick / wide / high: 120/38/23.5mm | thick / wide / high: 202/38/23.5mm |
| TBC-4512 (45A 12P) | ||
 |
||
| wire section: 0.5-4mm2 | ||
| rated current/voltage: 45A/600V | ||
| thick / wide / high: 222/38/23.5mm |
