Instruction:
1. end cover thickness:1.5mm2 grey
2. 10 center connection-strips can be divided into 2 position 3 position
3. Isoiator bridge bar: 10-position, divisibic need cushion biock
4. Switch bar for 2 termnal blocks complete, add endcover between two terminals.
5. Separatingplate: be used for electricalsepatation ofneighbouring bridges
6. partition plate: thick 1.5mm
7. univfersal end fixed piece

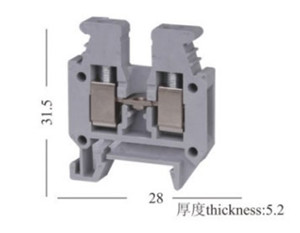

MBK3.E-Z | UK-1.5N | ||||||||||||||||
M3 | "...5" | 8mm | M2 | "...5" | 7mm | ||||||||||||
solid wire(mm2) 0.2-4 | solid wire(mm2) 0.14-1.5 | ||||||||||||||||
st randed wire 0.2-2.5 | st randed wire 0.14-1.5 | ||||||||||||||||
IEC 60947-7-1 | IEC 60947-7-1 | ||||||||||||||||
current: 32A | current: 17.5A | ||||||||||||||||
Voltage: 500V | Voltage: 500V | ||||||||||||||||
End cover | D-MBK3/5 | D-UK 1.5N | |||||||||||||||
Center short connection piece | FB1 10N5N | FB1 10-4 | |||||||||||||||
EB 2-5 EB 3-5 EB 10-5 |
ISSB1 10-4 IS-K4 |
||||||||||||||||
CDX1 USBR | |||||||||||||||||
end fixed picec | E/MBK1 | TS-K | |||||||||||||||
patrition plate | ATP-MBK | ATP-UK | |||||||||||||||
CDX1 USBR | E/UK | ||||||||||||||||

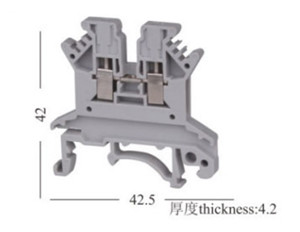

UK-1.5N | UK-1.5N | UK-1.5N | |||||||||||||||
M3 | "...6" | 8mm | M3 | "...5" | 8mm | M3 | "...6" | 8mm | |||||||||
solid wire(mm2) 0.2-4 | solid wire(mm2) 0.2-4 | solid wire(mm2) 0.2-6 | |||||||||||||||
st randed wire 0.2-2.5 | st randed wire 0.2-2.5 | st randed wire 0.2-4 | |||||||||||||||
IEC 60947-7-1 | IEC 60947-7-1 | IEC 60947-7-1 | |||||||||||||||
current: 32A | current: 32A | current: 41A | |||||||||||||||
Voltage: 800V | Voltage: 800V | Voltage: 800V | |||||||||||||||
D-UK 2.5N | D-UK 4/10 | D-UK 4/10 | |||||||||||||||
FB1 10-6 | FB1 10-5 | FB1 10-6 | |||||||||||||||
ISSB1 10-6 IS-K4 |
ISSB1 10-4 IS-K4 |
ISSB1 10-6 IS-K4 |
|||||||||||||||
CDX1 USBR | EB2-5/3-5/10-5 | USBR2-7 | |||||||||||||||
TS-K | TS-K | TS-K | |||||||||||||||
ATP-UK | ATP-UK | ATP-UK | |||||||||||||||
E/UK | TS-K | E/UK | |||||||||||||||
EB2-6/3-6/10-6 | EB2-6/3-6/10-6 | ||||||||||||||||

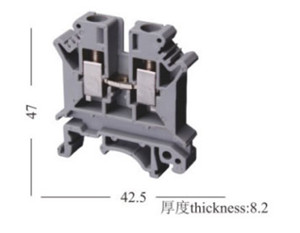

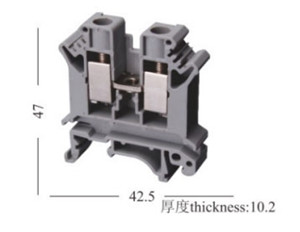

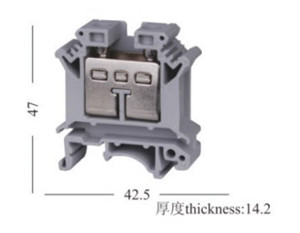

UK-6N | UK-10N | UK-16N | |||||||||||||||
M4 | "...8" | 10mm | M4 | "...10" | 12mm | M4 | "...10" | 12mm | |||||||||
solid wire(mm2) 0.2-10 | solid wire(mm2) 0.5-16 | solid wire(mm2) 2.5-25 | |||||||||||||||
st randed wire 0.2-6 | st randed wire 0.5-10 | st randed wire 4-16 | |||||||||||||||
IEC 60947-7-1 | IEC 60947-7-1 | IEC 60947-7-1 | |||||||||||||||
current: 57A | current: 76A | current: 101A | |||||||||||||||
Voltage: 800V | Voltage: 800V | Voltage: 800V | |||||||||||||||
D-UK 4/10 | D-UK 4/10N | D-UK 16 | |||||||||||||||
FB1 10-8 | FB1 10-10 | FB1 10-12 | |||||||||||||||
ISSB1 10-8 IS-K10 |
ISSB1 10-10 IS-K10 |
TS-K | |||||||||||||||
USBR2-8/13N | CDX1 USBR | ATP-UK | |||||||||||||||
TS-K | TS-K | E/UK | |||||||||||||||
ATP-UK | ATP-UK | EB 10-12 | |||||||||||||||
E/UK | E/UK | ||||||||||||||||
EB 2-8/3-8/10-8 | EB 2-10/3-10/10-10 | ||||||||||||||||

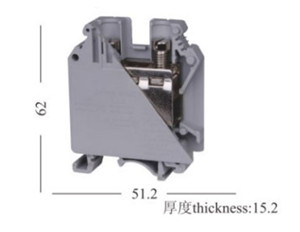

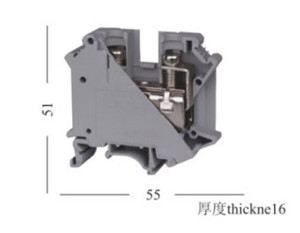

UK-25N | UK-35N (High Foot) | UK-35N (Bantam) | |||||||||||||||
M4 | "...10" | 14mm | M6 | "...10" | 16mm | M6 | "...10" | 16mm | |||||||||
solid wire(mm2) 2.5-25 | solid wire(mm2) 2.5-25 | solid wire(mm2) 2.5-25 | |||||||||||||||
st randed wire 4-16 | st randed wire 4-16 | st randed wire 4-16 | |||||||||||||||
IEC 60947-7-1 | IEC 60947-7-1 | IEC 60947-7-1 | |||||||||||||||
current: 110A | current: 125A | current: 125A | |||||||||||||||
Voltage: 800V | Voltage: 800V | Voltage: 800V | |||||||||||||||
D-UK 25 | |||||||||||||||||
FB1 10-14 | FB1 12-15 FB1 13-15 |
FB1 12-15 FB1 13-15 |
|||||||||||||||
TS-K | TS-K | TS-K | |||||||||||||||
ATP-UK | block shell, no end cover | block shell, no end cover | |||||||||||||||
E/UK | E/UK | E/UK | |||||||||||||||
EB 10-12 | EB 10-15 | EB 10-15 | |||||||||||||||

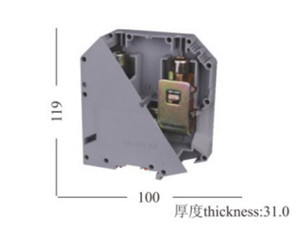

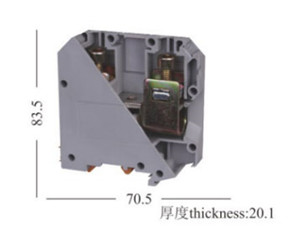

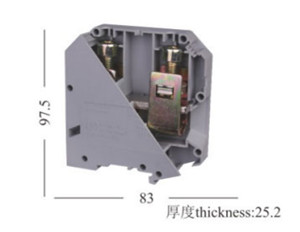

UK-50N | UK-95 | UK-150 | |||||||||||||||
M6 | "...14" | 24mm | M8 | "...22" | 33mm | M10 | "...22" | 40mm | |||||||||
solid wire(mm2) 16-50 | solid wire(mm2) 25-95 | solid wire(mm2) 2.5-25 | |||||||||||||||
st randed wire 25-50 | st randed wire 35-95 | st randed wire 4-16 | |||||||||||||||
IEC 60947-7-1 | IEC 60947-7-1 | IEC 60947-7-1 | |||||||||||||||
current: 150A | current: 232A | current: 309A | |||||||||||||||
Voltage: 800V | Voltage: 1000V | Voltage: 1000V | |||||||||||||||
FB1 2-20 FB1 3-20 |
FB1 2-25 FB1 3-25 |
FB1 2-31 FB1 3-31 |
|||||||||||||||
Edge plug-in shorting piece, fully insulated, inserted into the terminal clamp body and embedded in the terminal shell with 2 positions and 3 positions. Terminal Fixture: E/AL-NS 35 |
2 positions | E/AL-NS 32 E/AL-NS 35 |
E/AL-NS 32 E/AL-NS 35 |
||||||||||||||
3 positions | |||||||||||||||||
end fixed picec | end fixed picec | end fixed picec | |||||||||||||||
(2) End fixed picec: for UK50 and 95 and 150, 240 type terminal fixing | End fixed picec: for UK50 and 95 and 150, 240 type terminal fixing | End fixed picec: for UK50 and 95 and 150, 240 type terminal fixing | |||||||||||||||

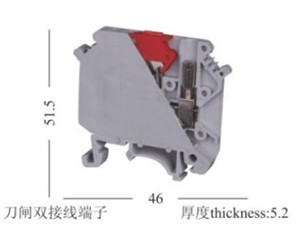

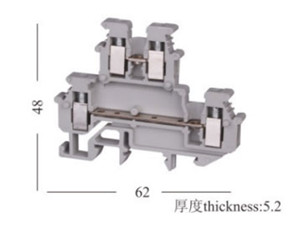

UK-240A | UDK4 | MTKP-P | |||||||||||||||
M10 | "...22" | 40mm | M3 | "...6" | 8mm | M3 | "...5" | 7mm | |||||||||
solid wire(mm2) 70-240 | solid wire(mm2) 0.2-4 | solid wire(mm2) 0.2-4 | |||||||||||||||
st randed wire 70-240 | st randed wire 0.2-2.5 | st randed wire 0.2-2.5 | |||||||||||||||
IEC 60947-7-1 | IEC 60947-7-1 | IEC 60947-7-1 | |||||||||||||||
current: 415A | current: 32A | current: 16A | |||||||||||||||
Voltage: 1000V | Voltage: 690V | Voltage: 400V | |||||||||||||||
EB2-36 EB3-36 |
D-UDK4 | Description: Breaking terminals between knives, with test socket nails on both sides. | |||||||||||||||
E/AL-NS 32 E/AL-NS 35 |
Center short connection piece | FB1 10-6 | end plate | D-MTK | |||||||||||||
end fixed picec | Insulation block shorting piece | ISSBI 10-6 | EBL2-5' EBL3-5' |
||||||||||||||
End fixed picec: for UK50 and 95 and 150, 240 type terminal fixing | Shorting piece insulation block | IS-K4 | 10-position side plug-in shorting piece | ||||||||||||||
Switchable short circuit between two terminals | USBR2-7 | Grouping partitions | ATS-MTK | ||||||||||||||
bead | TS-KK3 EB2-6/3-6/10-6 |
||||||||||||||||

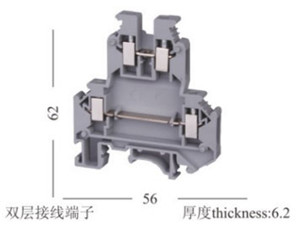

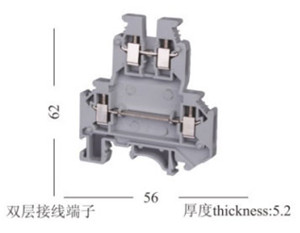

UKK3 | UK-150 | UK-150 | |||||||||||||||
M3 | "...5" | 8mm | M3 | "...5" | 7mm | M3 | "...6" | 8mm | |||||||||
solid wire(mm2) 0.2-4 | solid wire(mm2) 0.2-4 | solid wire(mm2) 0.2-4 | |||||||||||||||
st randed wire 0.2-2.5 | st randed wire 0.2-2.5 | st randed wire 0.2-4 | |||||||||||||||
IEC 60947-7-1 | IEC 60947-7-1 | IEC 60947-7-1 | |||||||||||||||
Current:32A | Current:24A | Current:32A | |||||||||||||||
Voltage: 500V | Voltage: 500V | Voltage: 500V | |||||||||||||||
end plate | D-UKK3/5 | MBKKB2.5 | end plate | D-UKK3/5 | |||||||||||||
Space Compensation End Plate | DG-UKK3/5 | FBRNI10-5 | Space Compensation End Plate | DG-UKK3/5 | |||||||||||||
space compensation board | DP-UKK3/5 | 2 position 3 position 10-position side plug-in shorting piece |
EB 2-5 EB 3-5 EB 10-5 |
Space compensation board | DP-UKK3/5 | ||||||||||||
Center Shorting | DB1 10-5 | bead | TS-KK3 | Center Shorting | DB1 10-6 | ||||||||||||
Insulation block shorting piece | ISSBI 10-5 | E/UK | Insulation block shorting piece | ISSBI 10-6 | |||||||||||||
EBL 10-5 | EBL 2-6/3-6/10-6 | ||||||||||||||||

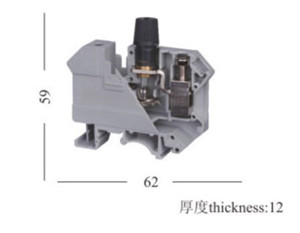

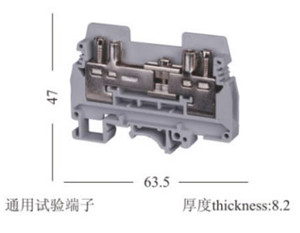

URTK-6S | UK-150 | UK-150 | |||||||||||||||
M4 | "...8" | 10mm | M3 | "...8" | 8mm | M3 | "...10" | 11mm | |||||||||
solid wire(mm2) 0.5-10 | solid wire(mm2) 0.2-4 | solid wire(mm2) 0.5-16 | |||||||||||||||
st randed wire 0.5-6 | st randed wire 0.2-4 | st randed wire 0.5-16 | |||||||||||||||
IEC 60947-7-1 | IEC 60947-7-1 | IEC 60947-7-1 | |||||||||||||||
Current:57A | Current:6.3A | Current:10A | |||||||||||||||
Voltage: 500V | Voltage: 500A | Voltage: 500A | |||||||||||||||
Description: Knife switch test terminal, test socket screw on both sides | EB2-8/3-8/10-8 | EB2-8/3-8/10-8 | |||||||||||||||

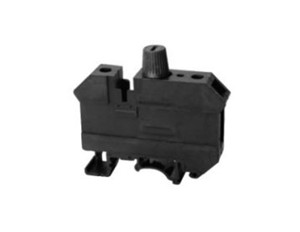

End plate | D-URTK/S | UK5-HESI | UK10-DREHS1 | ||||||||||||||
Center Shorting | FB10-URTK/S | ||||||||||||||||
Grouping spacer | ATS-RTK | ||||||||||||||||
Switch the shorting piece inwards | USB2-URTK/S | ||||||||||||||||
Switch the shorting piece outwards | ASB2-URTK/S |
