ZN63(VS1)-12 Series Side Mounted High Voltage Vacuum Circuit Breakers

Overview

ZN63(VS1)-12 series side-mounted high-voltage vacuum circuit breaker is an indoor high-voltage switchgear, suitable for a three-phase power system with a rated voltage of 12kV and a frequency of 50Hz. It is used as protection and control appliances. Due to the special advantages of vacuum circuit breakers , Especially suitable for places that require frequent operation at rated current, or break short-circuit current many times.

ZN63(VS1)-12 series side-mounted high-voltage vacuum circuit breaker adopts fixed installation and is mainly used for fixed switch cabinets. The circuit breaker can be used alone or in ring network power supply, box-type substations or various non-standard systems.

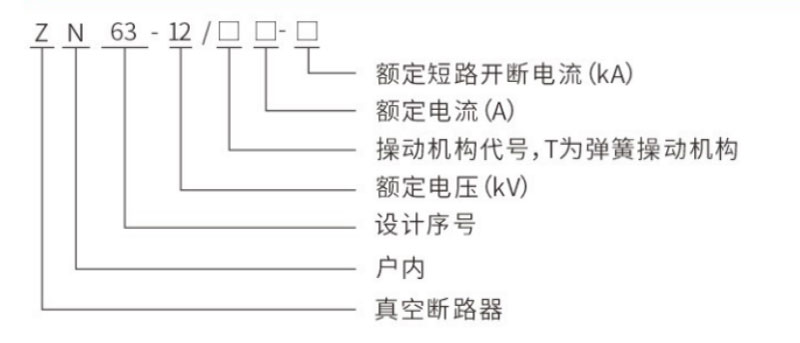

Model Meaning

Normal Use Environment

1. Ambient temperature: the ambient temperature is not greater than +40°C, not lower than -10°C (storage and transportation are allowed at -30°C);

2. Altitude: the altitude does not exceed 1000;

3. Relative humidity: the daily average is not more than 95%. The monthly average is not more than 90%, the daily average of saturated vapor pressure is not more than 2.2×10-3MPa, and the monthly average is not more than 1.8×10-3MPa;

4. Earthquake intensity: no more than 8;

5. Use place: place without fire, explosion, serious pollution, chemical corrosion and violent vibration.

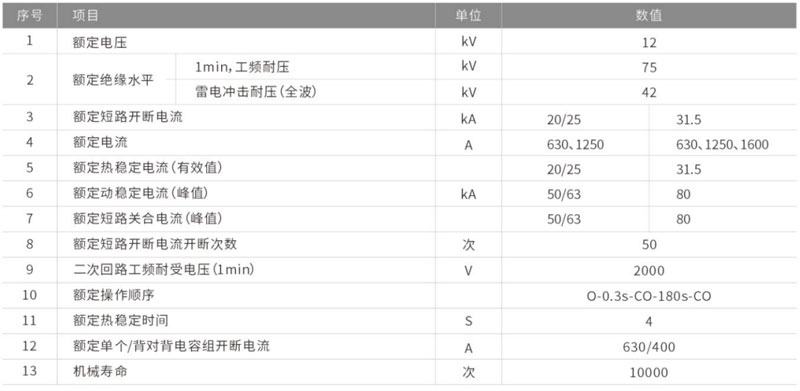

Technical Parameters

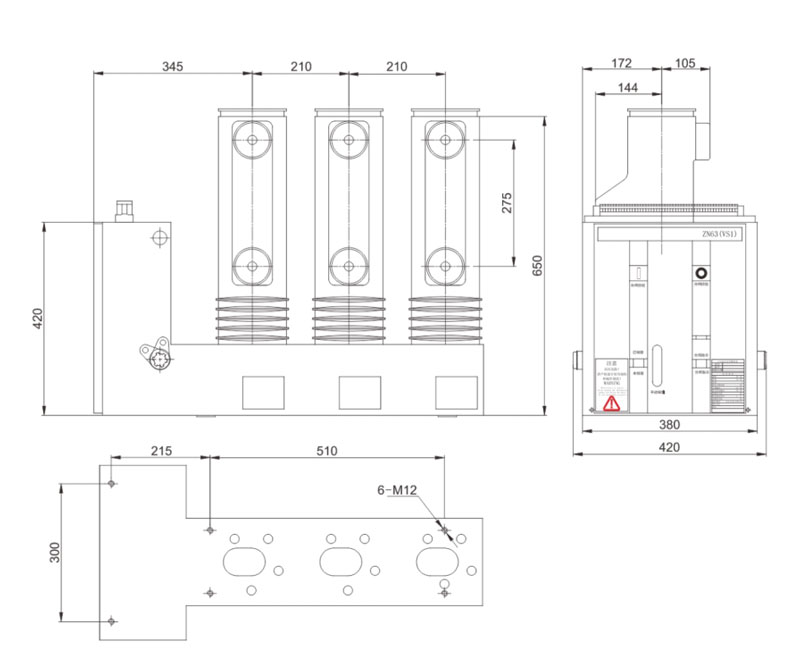

Installation Dimensions
