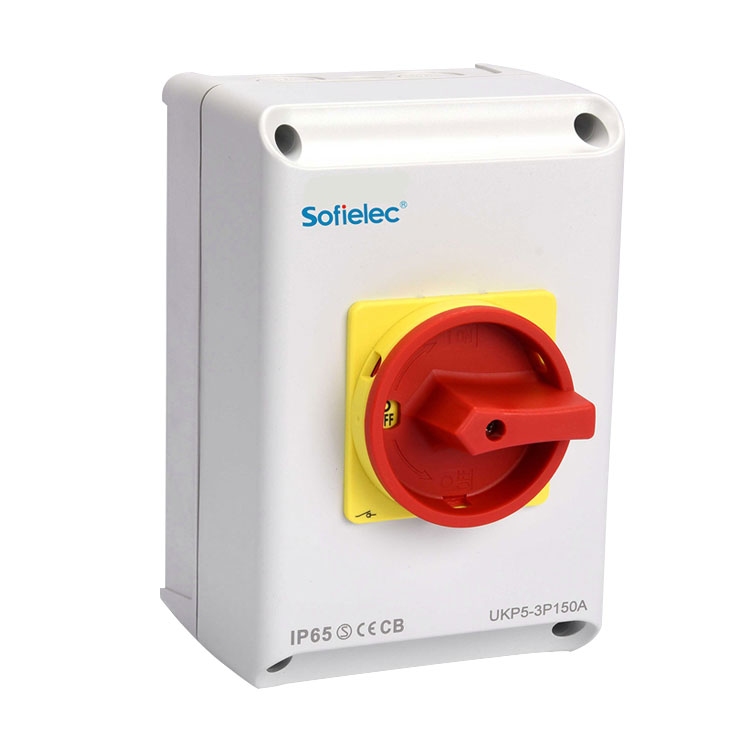

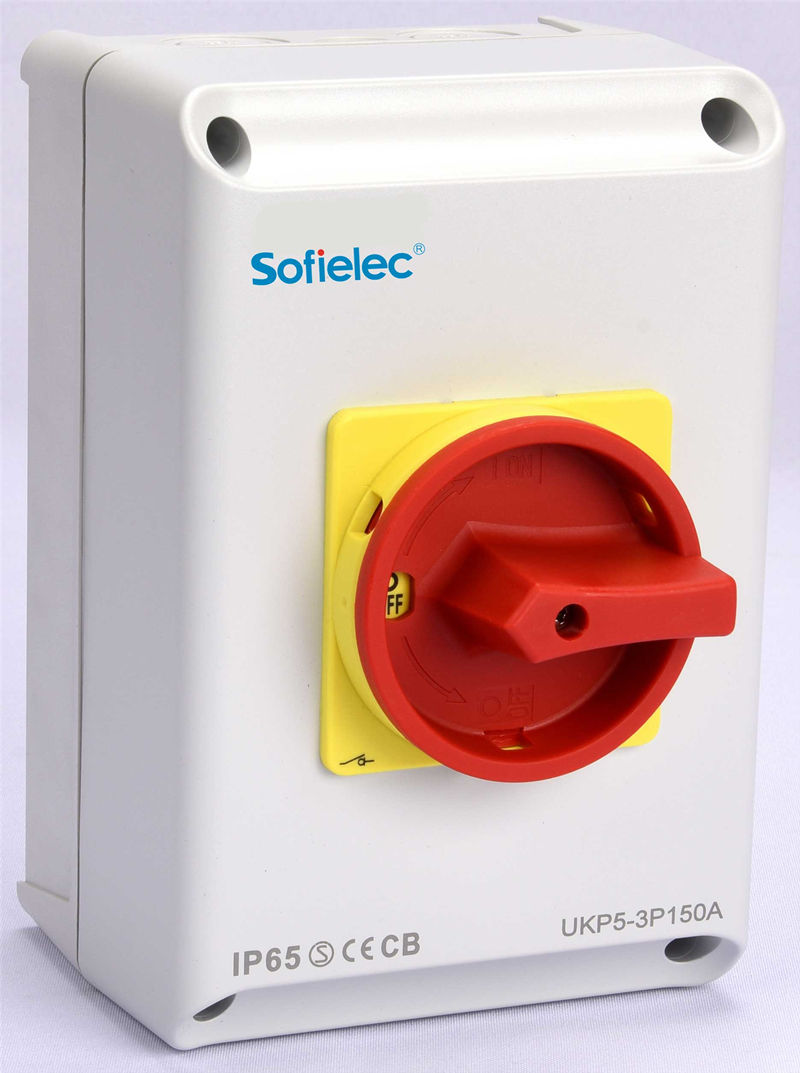

IP65 rotary isolator switch with PC plastic enclsoure 4P 150A



Categories isolating switch
Pole No 3, 4
Rated current(A) 150A
Rated voltage AC 230/400V
Rated frequency 50/60Hz
waterproof level:  IP65
size 160-280(mm)
Material Stainless steel
Product name  UKPN5
website www.sofielec.com
Technical Data

l Pole No.: 3, 4

l Rated current(A): 10A-150A

l Rated voltage: AC 230/400V

l Rated frequency: 50/60Hz

waterproof level: IP65

Material: Stainless steel

SIZE: 160-280(mm)

l Product name: UKPM5

 Construction and Feature

It provides the switching capacity with load operation. Many current specifications and large frame size are provided for your selection. There is color signal indication window for indicating the contact position state.

Application

The switch disconnector has high dynamic and thermal stability, has opening and closing state indication. The product is suitable for distribution and control circuits of AC50Hz/60Hz and voltage up to and including 400V, is mainly used as main switch for terminal combination electrical equipment.
