Application

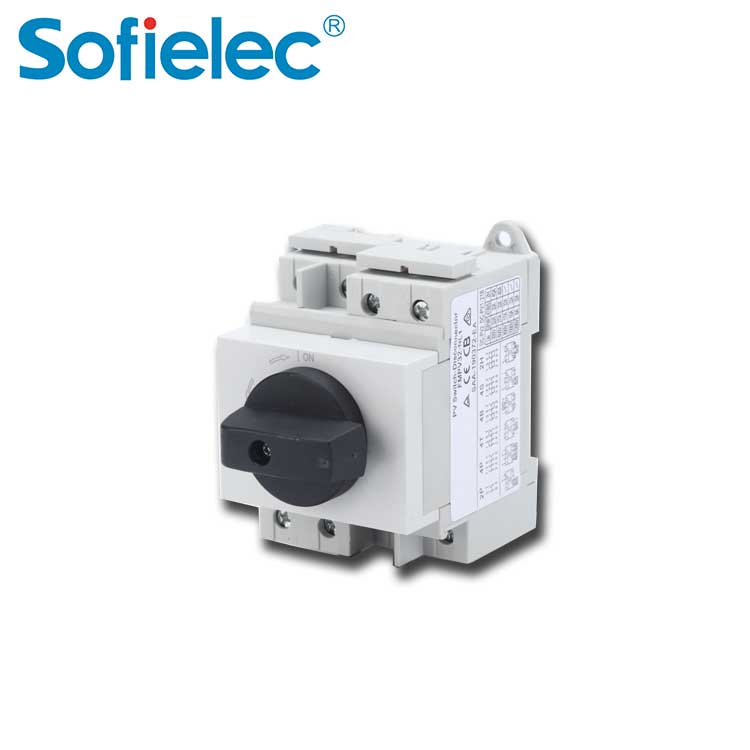

NL1 Series DC Isolator Switch is applied to 1~20 KW
residential or commercial photovoltaic system,placed between photovoltage modules and inverters.Arcing time isless than 8ms,that keeps solar system more safe. To ensure its stability and long service life, our products are made by components with optimum quality.Max voltage is up to 1200V DC.It holds a safe lead among similar products.
Feature
● IP20 Protection Level

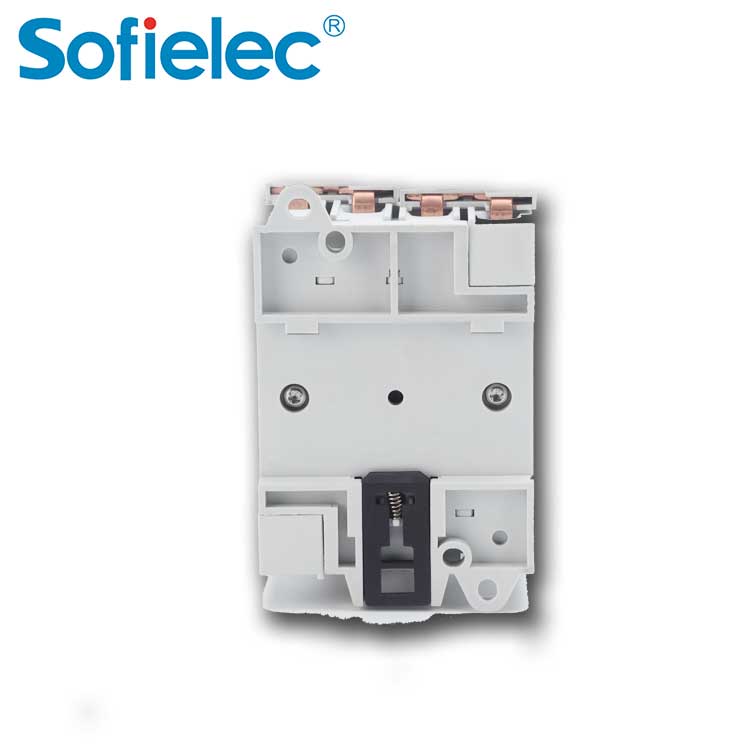

●Din rail mounted
● Switch body for 4P CB4N or CB8N

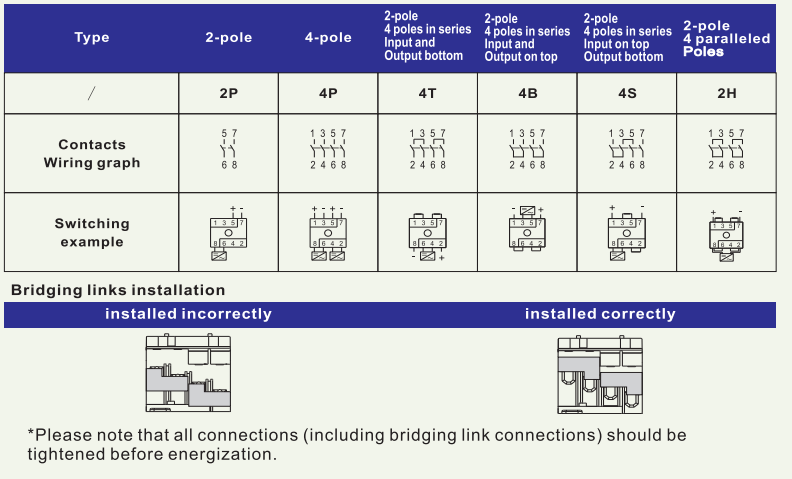

●2 Pole,4 Poles are viable (Single IDouble String)
●Standard:IEC60947-3,AS60947.3
●DC-PV2,DC-PV1,DC-21B
●16A, 25A,32A, 1200V DC

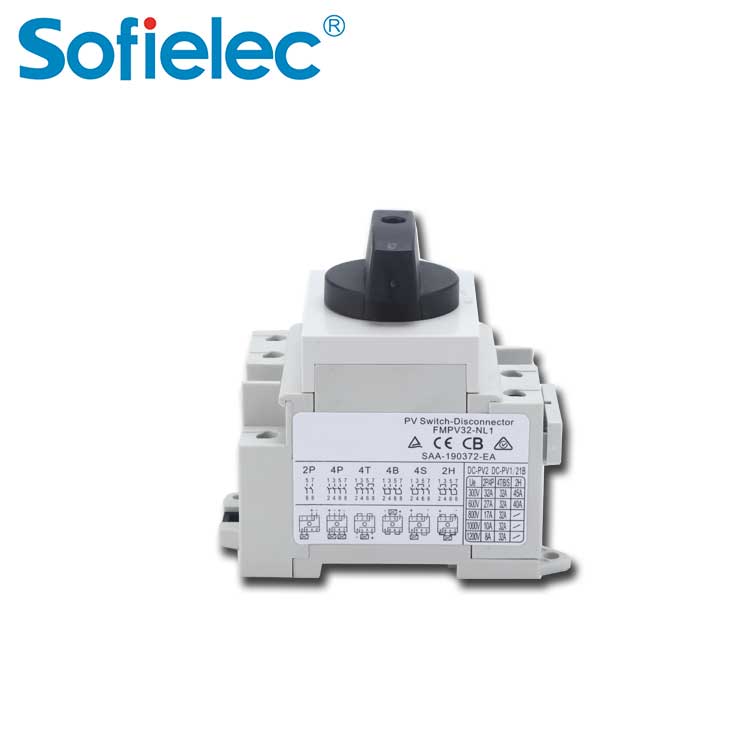

| Type | FMPV16-NL1,FMPV25-NL1,FMPV32-NL1 |
| Function |
lsolator, Control |
| Standard | IEC60947-3,AS60947.3 |
| Utilization category |
DC-PV2/DC-PV1/DC-21B |
|
Pole |
4P |
|
Rated frequency |
DC |

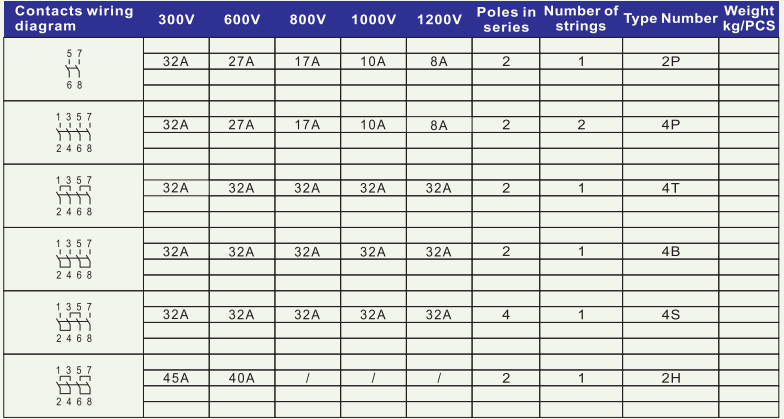

| Rated operational voltage(Ue) | 300V,600V,800V,1000V,1200V |
|
Rated insulation voltage (U) |
1200V |
