Categories | isolating switch |
Pole No | 1,2,3, 4 |
Rated current(A) | 16,25,40,63,125A |
Rated voltage | AC 230/400V |
Rated frequency | 50/60Hz |
Rated short-circuit making capacity | 6kA |
Rated withstand current | 1kA within 1sec |
Electro-mechanical endurance | 10000 cycles |
Product name | 63a isolator switch |
Certificate | CE CB |
website | www.sofielec.com |

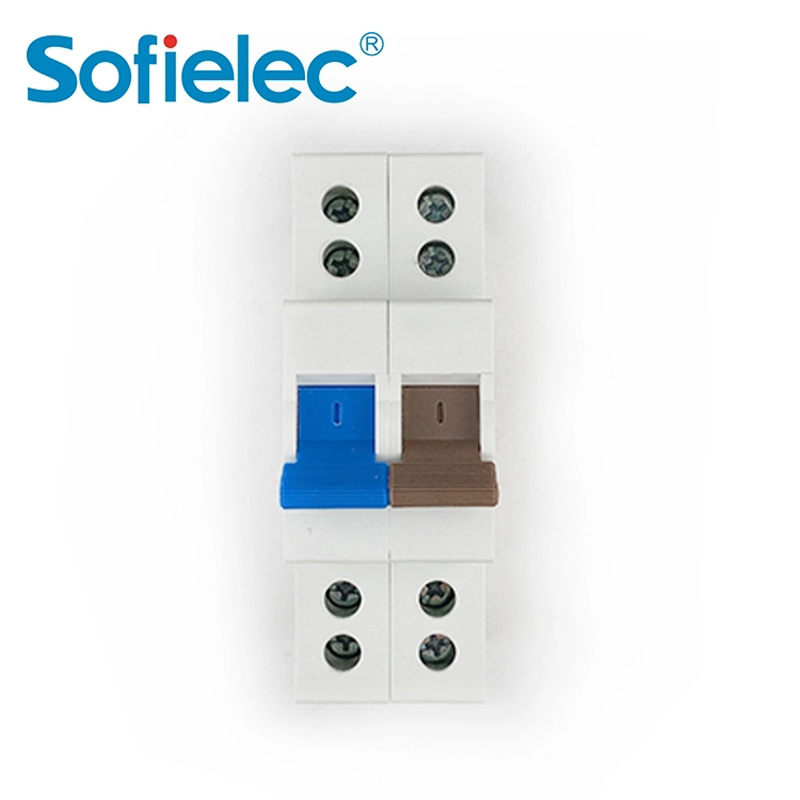

Technical Data
![](/upload/1c/202107/england-type-fast-wiring-safe-and-reliable-isolating-switch-4.jpg)
l Pole No.: 1, 2, 3, 4 |
l Rated current(A): 63, 80, 100, 125 |
l Rated voltage: AC 230/400V |
l Rated frequency: 50/60Hz |
l Rated short-circuit making capacity: 6kA |
l Rated withstand current: 1200A(Within 1Sec) |
lRated making and breaking capacity: 2500A |
l Degree of protection:Not less than 10000 times |
l Connection capacity:Rigid conductor 35mm2 |
l Product name: XZGL-125 |

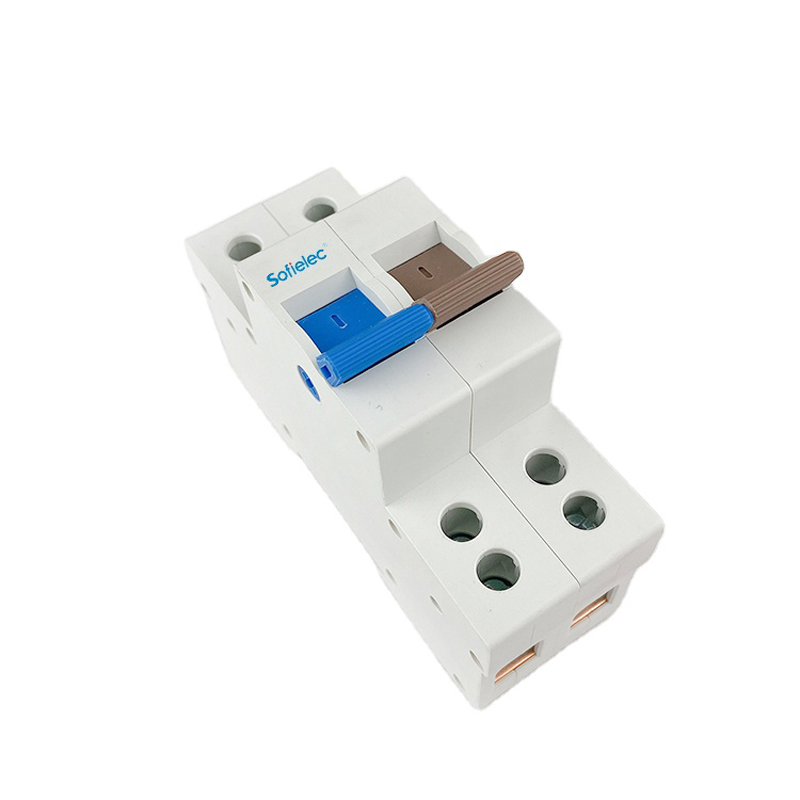

Construction and Feature
![](/upload/1c/202107/england-type-fast-wiring-safe-and-reliable-isolating-switch-5.jpg)
It provides the switching capacity with load operation
Many current specifications and large frame size are provided for your selection
There is color signal indication window for indicating the contact position state.
Application

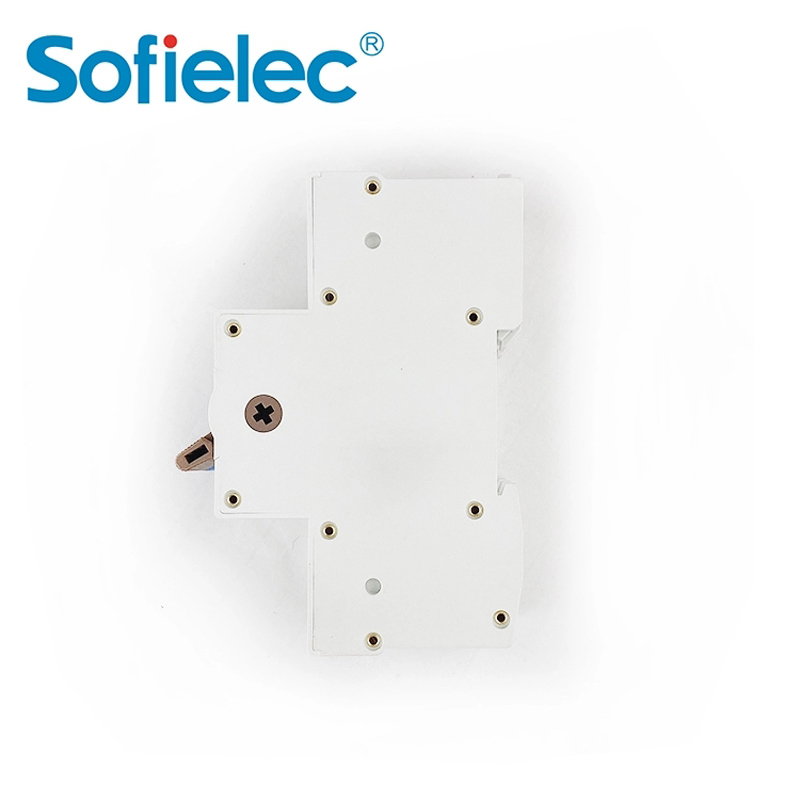

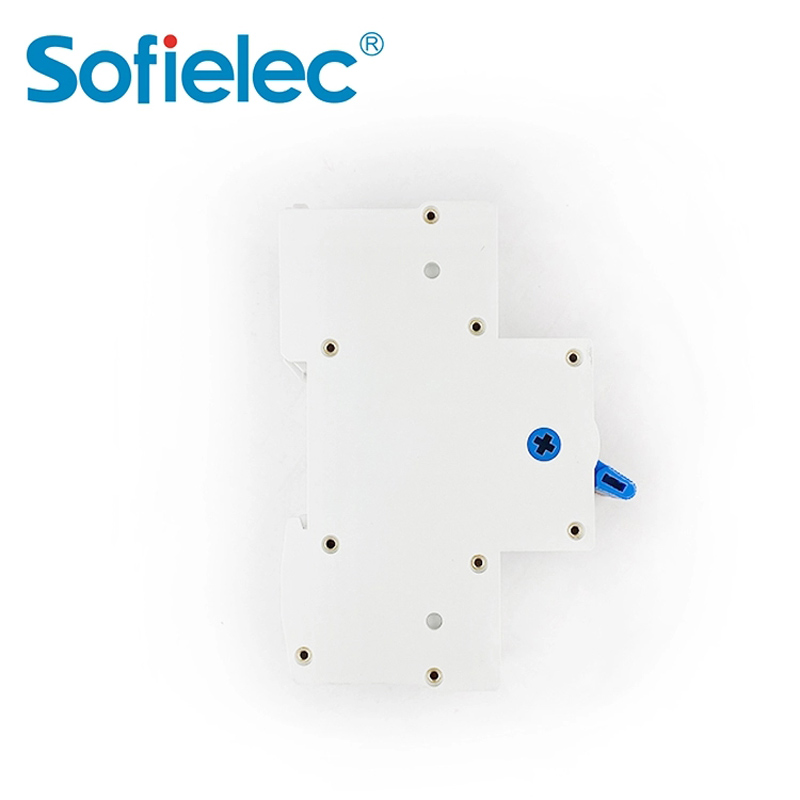

Side
![](/upload/1c/202107/england-type-fast-wiring-safe-and-reliable-isolating-switch-6.jpg)
![](/upload/1c/202107/england-type-fast-wiring-safe-and-reliable-isolating-switch-7.jpg)
