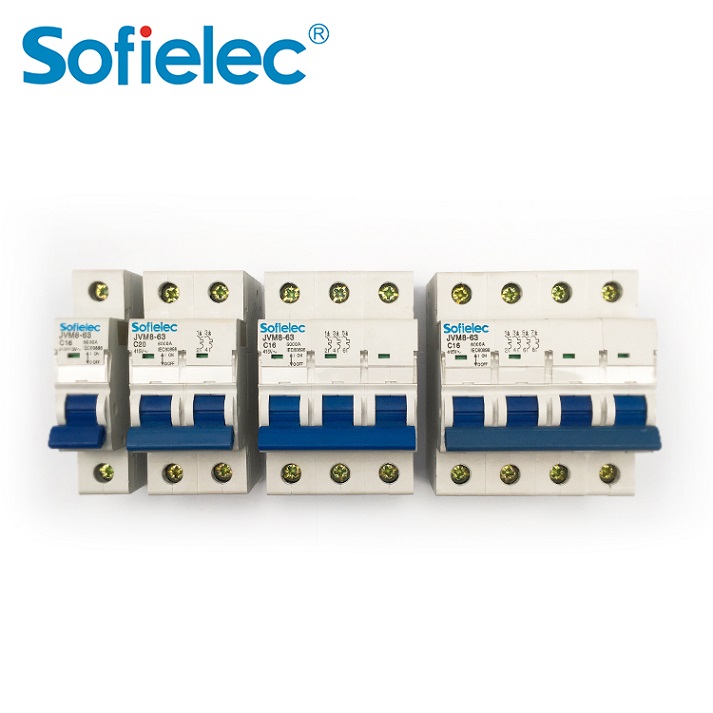

B C D Curve MCB 6KA Miniature Circuit Breaker JVM8-63

B Curve MCB
B Curve MCB
C Curve MCB
D Curve MCB
MCB 6KA
6kA JVM8-63 2017 new design b c d curve circuit breaker

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

B C D Curve MCB (Miniature Circuit Breaker) JVM8-63 Features

Exquisite appearance, with short-circuit and overload double protection performance, high breaking capacity (6kA), contact position indication window, easy and reliable installation.



B C D Curve MCB 6KA Miniature Circuit Breaker JVM8-63 Parameter

Categories Economic 4.5KA, 6kA Regular Series Circuit Breaker
Model JVM8-63
PoleNo 1P. 2P. 3P. 4P
Rated current(A 6. 10. 16. 20. 25. 32. 40. 50. 63
Rated working woltage 240/415V
Rated Frequency 50/60Hz
Rated insulation voltage 500V
Rated short-circuit capacity 6000A
Mechanical life 15000 times
Degree of protection IP20
Wiring Heigh 21.5mm
Terms of Payment L/C, Western Union, MoneyGram, T/T, Paypal, Alibaba Assurance
B Curve MCB

B C D Curve MCB 6KA Miniature Circuit Breaker JVM8-63 Technical Data



l Pole No.;1P. 2P. 3P, 4P

l Rated current(A):6. 10. 16. 20, 25, 32, 40. 50, 63

l Rated working voltage: 240/415V

l Rated Frequency: 50/60Hz

l Rated insulation voltage: 500V

l Rated short-circuit capacity:6000A

l Instantaneous tripping current:5ln(Btype)10ln(C type)20ln(D type)

l Instantaneous non-tripping current:3ln(B type)5ln(C type)10ln(D type)

l Mechanical life: 15000 times

l Degree of protection: IP20

l Wiring connection mode: upward line

l Connection conductor: 1~16mm²

l Wiring Height:21.5mm

C Curve MCB

B C D Curve MCB 6KA Miniature Circuit Breaker JVM8-63 Construction



Fine and unique appearance,advanced design

Short-circuit and overload dual-protection performance

High-breaking capacity (6KA ) that is leading among the world similar products

Unique labelsContact position indication window

Convenient and reliable installation

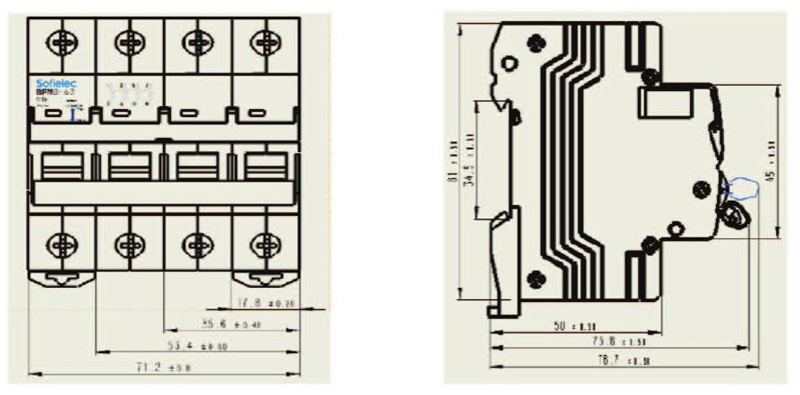

B C D Curve MCB 6KA Miniature Circuit Breaker JVM8-63 Overall & Installation Dimensions

Overall & Installation Dimensions

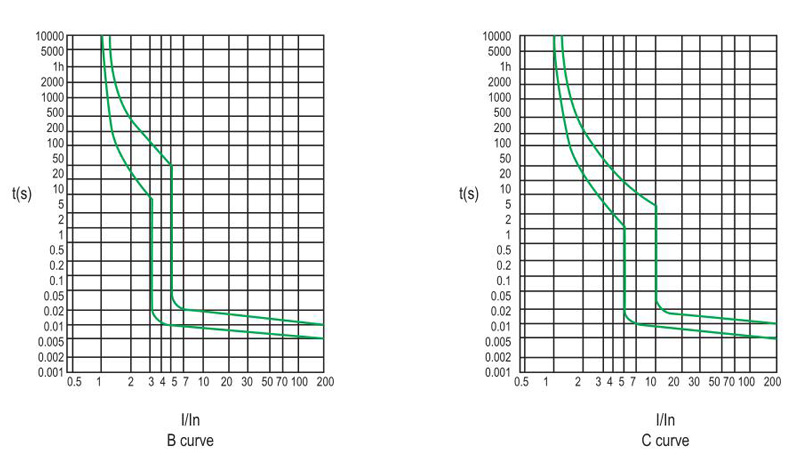

Characteristic Curve
Characteristic Curve
