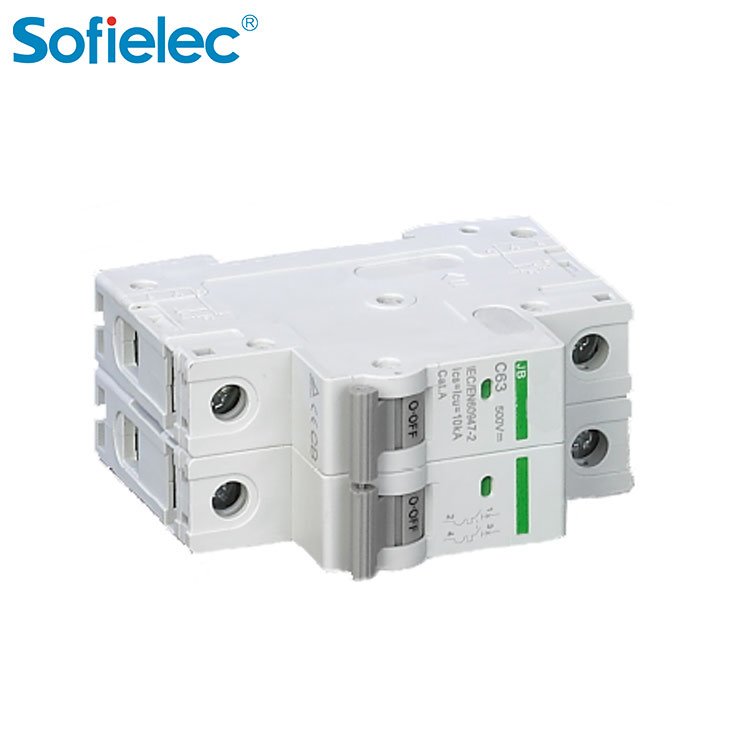

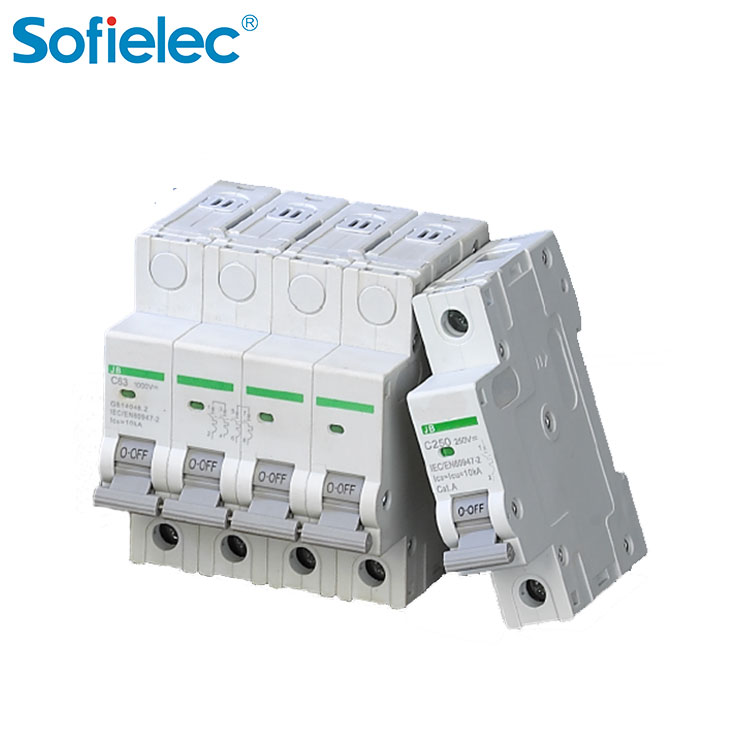

DC Miniature Circuit Breaker Protection Parameter
| Categories | DC Protection Series Circuit Breaker |
| Model | JB Type |
| Rated insulation voltage | 1000V DC |
| Breaking capacity | 10kA |
| Impluse voltage | 4kV |
| Electrical connection | By the bottom for In and Out |
| Number of poles | 1P 2P 3P 4P |
| Rated service breaking capacity | 100 % of the Icu |
| Mechanical | 20,000 cycles |
| Degree of pollution | 2 |
| Category | A (no delay in accordance with IEC / EN 60947-2 st |
| Tropicalisation | Relative humidity: 95 % at 55°C in accordance with |
| Terms of Payment | L/C, Western Union, MoneyGram, T/T, Paypal |

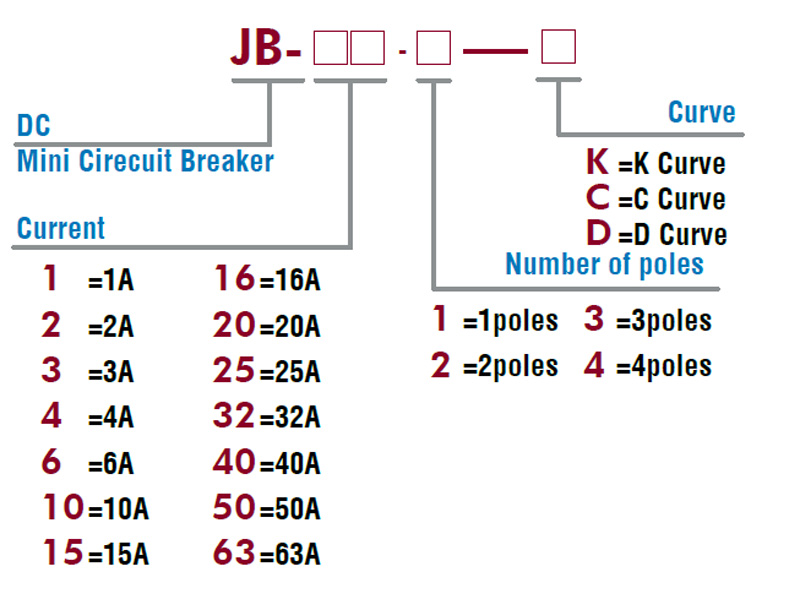

DC MCB Circuit Breaker For Motor Protection Meaning and classification models
DC MCB Circuit Breaker For Motor Protection Main characteristics
| Operating voltage(Ue) |
1P=250V DC,2P=500V DC 3P=750V DC,4P=1000V DC |
|
| Rated insulation voltage(Ui) | 1,000V DC | |
| Breaking capacity(Icu) | 10kA | |
| Impulse voltage(Uimp) | 4kV | |
| Electrical connection | By the bottom for In an Out | |
| Number of poles | 1P,2P,3P,4P | |
| Standards |
IEC 60947-2 EN 60947-2 |
|
| Rated service breaking capacity(Ics) | 100% of the Icu | |
| Endurance(O-C) | Electrical | 1,500 cycles(where L/R =ms) |
| Mechanical | 20,000 cycles | |
| Nechnical | 20,000cycles | |
| Degree of pollution | 2 | |
| Category | A(on delay in accordance with IEC/EN 60947-2 standards) | |
|
Degree of protection (IEC 60529) |
Device in modular Enclosure |
IP40 |
| Trioicallsation |
Relative humidity:95% at 55℃ in accordance with IEC 60068-2 and GB 14048.2 standards |
|
| Temperature | Operating | -25℃ to 70℃ |
| Storage | -40℃ to 85℃ | |
32 AMP Circuit Breaker Protection Diagrams

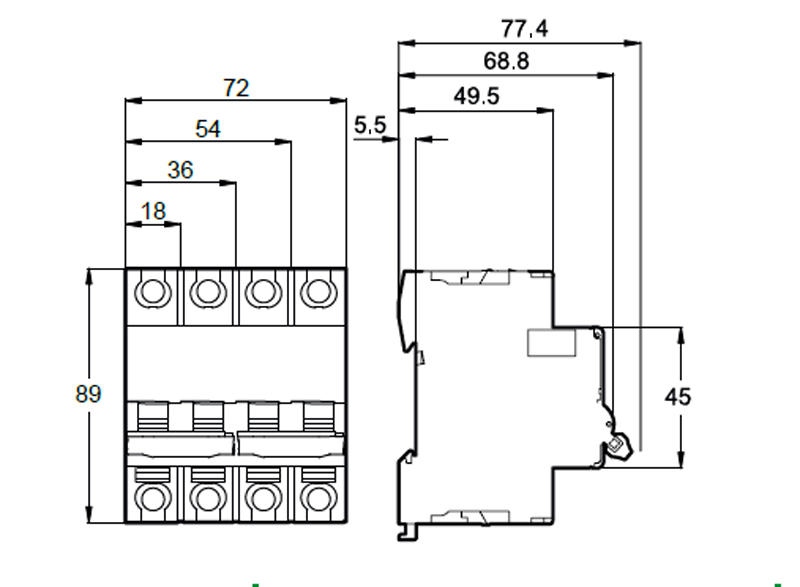

DC MCB Circuit Breaker For Motor Protection Dimensions

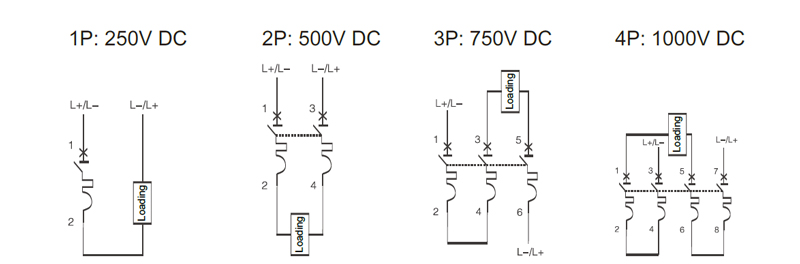

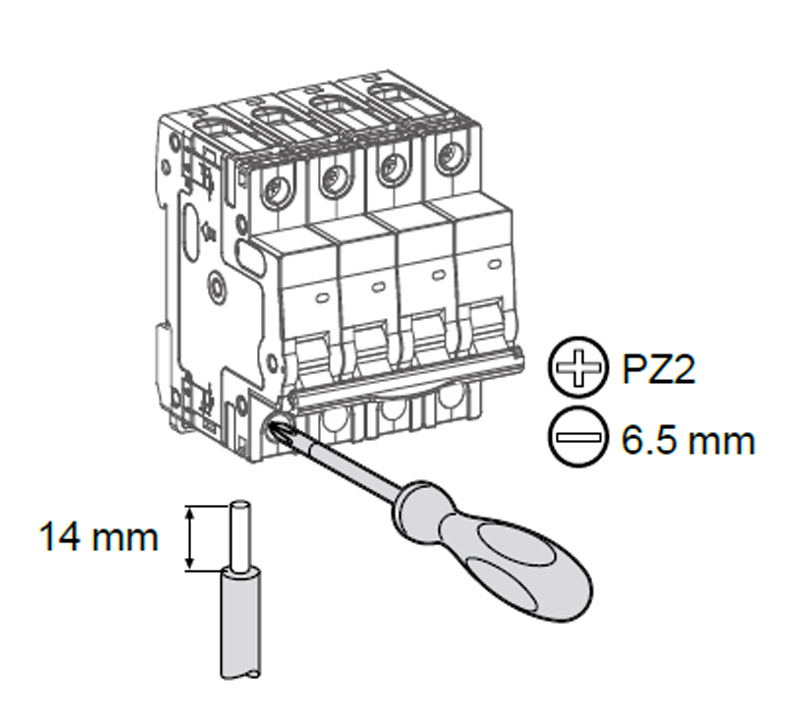

Connection

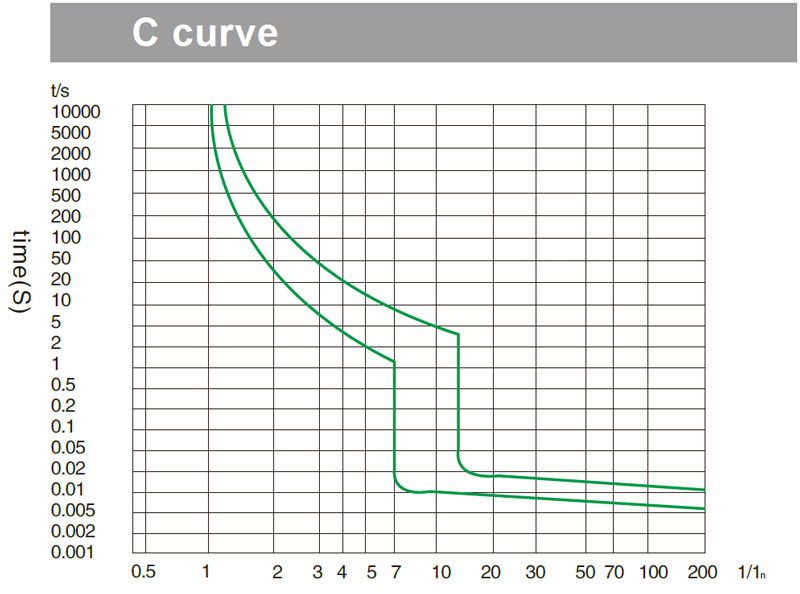

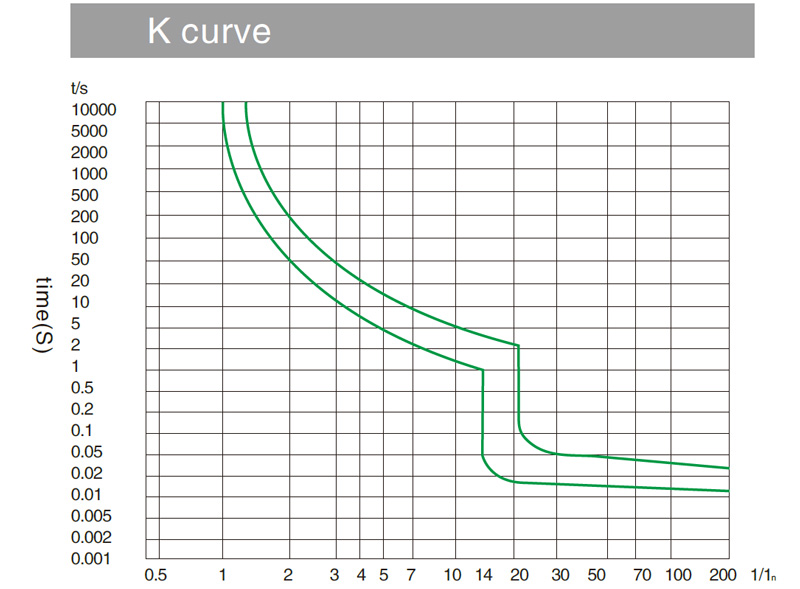

Curve
