Smart WiFi automatic circuit breaker can be used for short circuit and overvoltage protection, the miniature circuit breaker produced by Sofielec Electrical has passed the required industry standard certification: IEC CB, SEMKO, CE, CCC, SAA, KEMA, TUV, UL. can provide customers with ODM. It is characterized by automatic overload and short circuit protection, with an energy monitor, and is widely used in families, student dormitories, enterprises, municipal engineering, street lights, farms, rental houses, etc.
Wifi MCB 6KA 1P 3P Miniature Circuit Breaker Parameter
| Categories | Smart High Technology Series Circuit Breaker |
| Model | WIFI MCB 1P 3P |
| Conforming to standard | GB 10963. l;IEC60898-1. |
| Rated voltage | AC 230V 1P 2P. AC 400V 3P 4P. |
| Frequency | 50Hz |

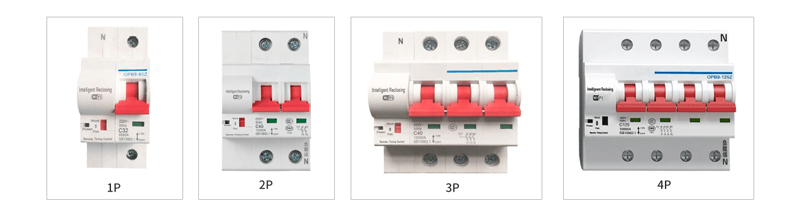

| Quantity: | 1P 2P 3P 4P |
| Class of pollution | 2style |
| Protection grade | IP20 |
| Rating current of shell frame | 125A |
| Rated curret | 32A. 40A. 63A. 80A. 100A. 125A. |
| Rated shon eincuit brcuking capacity | 6kA |
| ARated impact tolerance voltage | 6kV |
INTELLIGENT WIFI RECLOSER CIRCUIT BREAKER
Wifi MCB 6KA 1P 3P Miniature Circuit Breaker Application
Intelligent remote control of Household, Dornitory,Enterprise, Project, Farm, Street light, Pump, ground heater, water heater, etc.
Connect the zero lines of product and distribution systemwhen using 1P and 3P products.

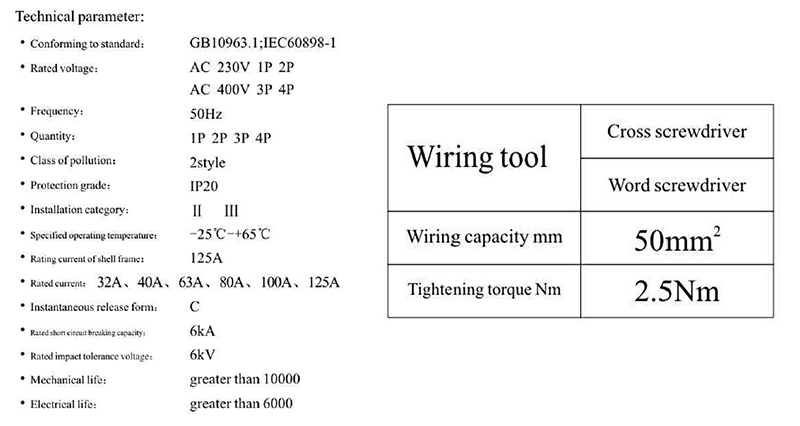

Wifi MCB 6KA 1P 3P Miniature Circuit Breaker Technical parameter＆Wiring diagram

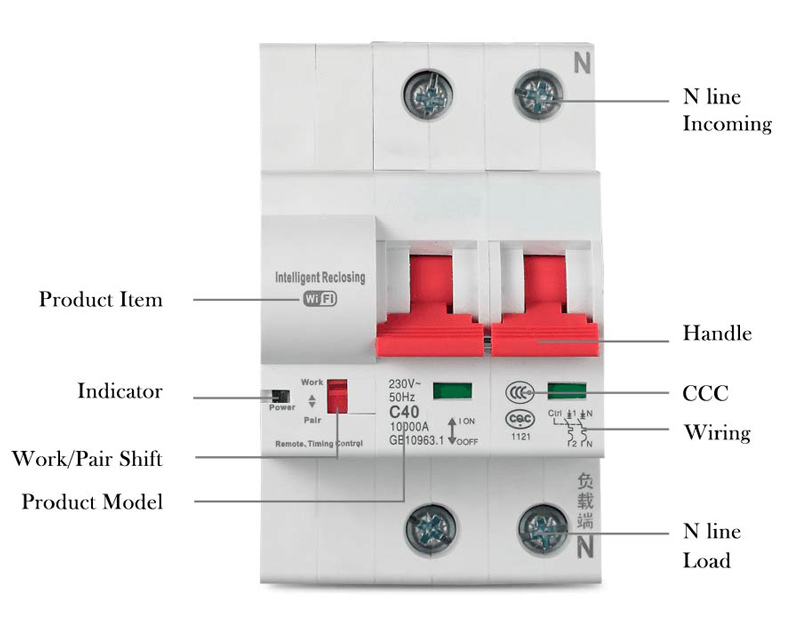

STRUCTURE

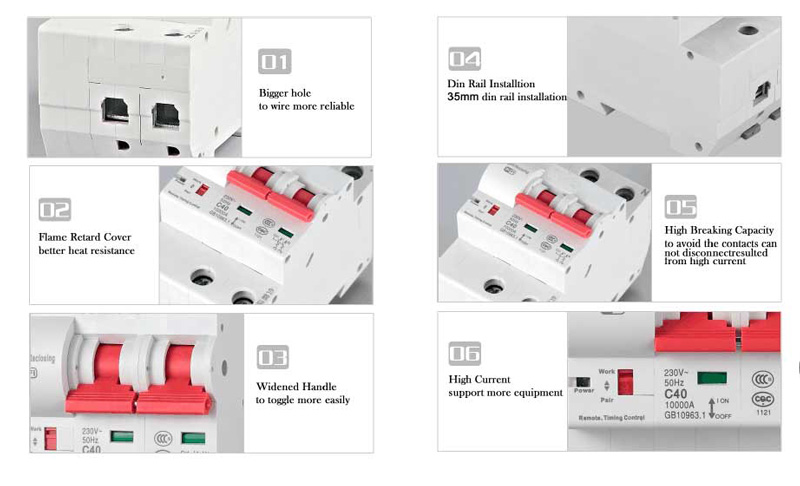

Wifi MCB 6KA 1P 3P Miniature Circuit Breaker Detail ADVANTAGES
Application
