Sofielec factory outlet STM6EL 1250A Residual Current Operated mccb 3P 4P Circuit Breakers RCCB

STM6EL 1250A Residual Current Operated mccb 3P 4P Circuit Breakers RCCB
STM6EL 1250A Residual Current Operated mccb 3P 4P Circuit Breakers RCCB
STM6EL 1250A Residual Current Operated mccb 3P 4P Circuit Breakers RCCB
STM6EL 1250A Residual Current Operated mccb 3P 4P Circuit Breakers RCCB
STM6EL 1250A Residual Current Operated mccb 3P 4P Circuit Breakers RCCB
STM6EL 1250A Residual Current Operated mccb 3P 4P Circuit Breakers RCCB

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories MCCB
Model STM6EL
Rated current(A) 10-630A
Rated operating voltage(Ue) 400V
Rated Insulation Voltage(Ui) 1000V
Rated impact withstand voltage(Uimp) 8kV
Product name STM6EL
Rated limit short circuit capacity 50
Rated operatingshort circuit capacity 35
Pole 2P, 3p, 4p
website www.sofielec.com
Brand sofielec

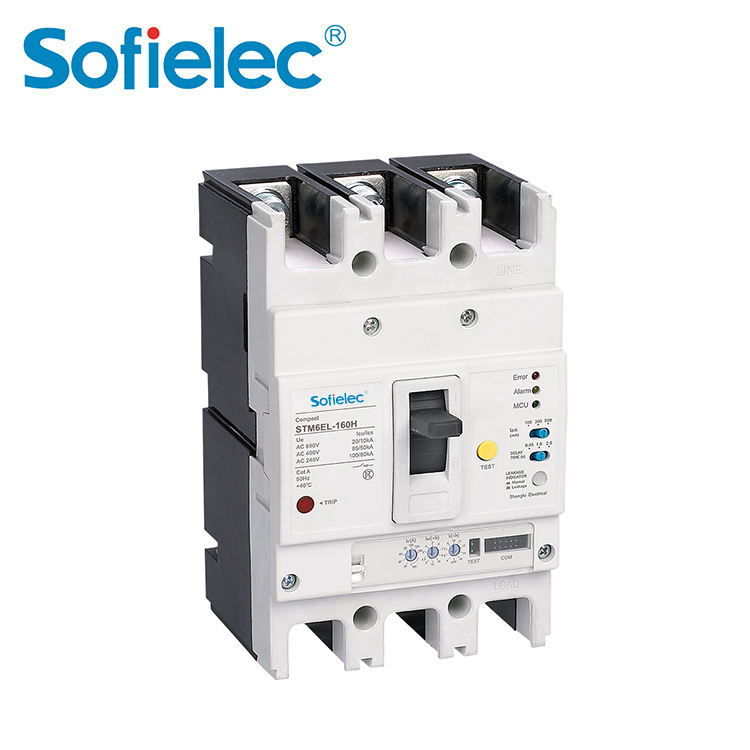

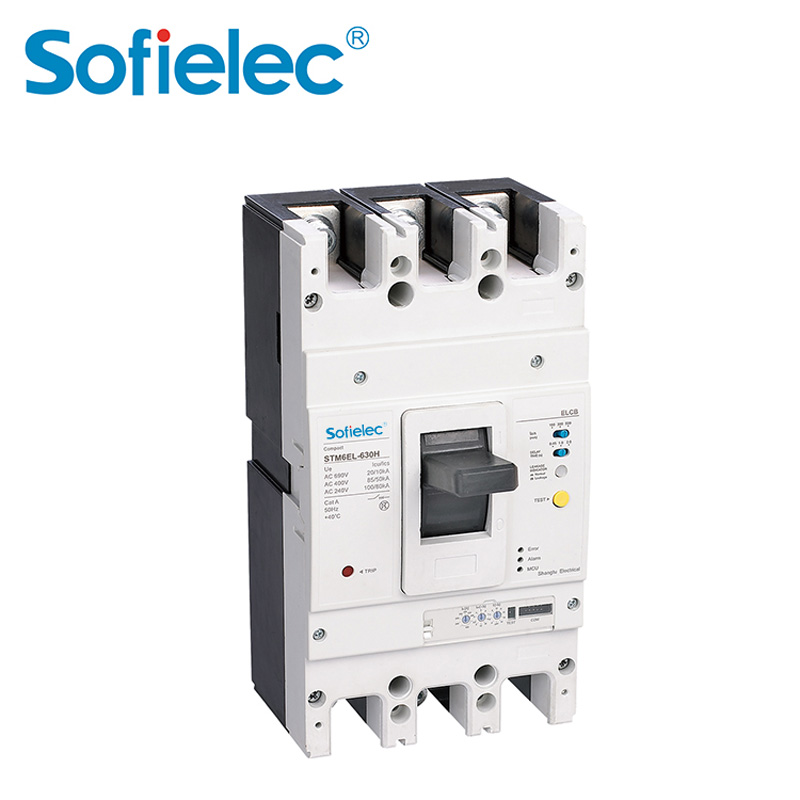

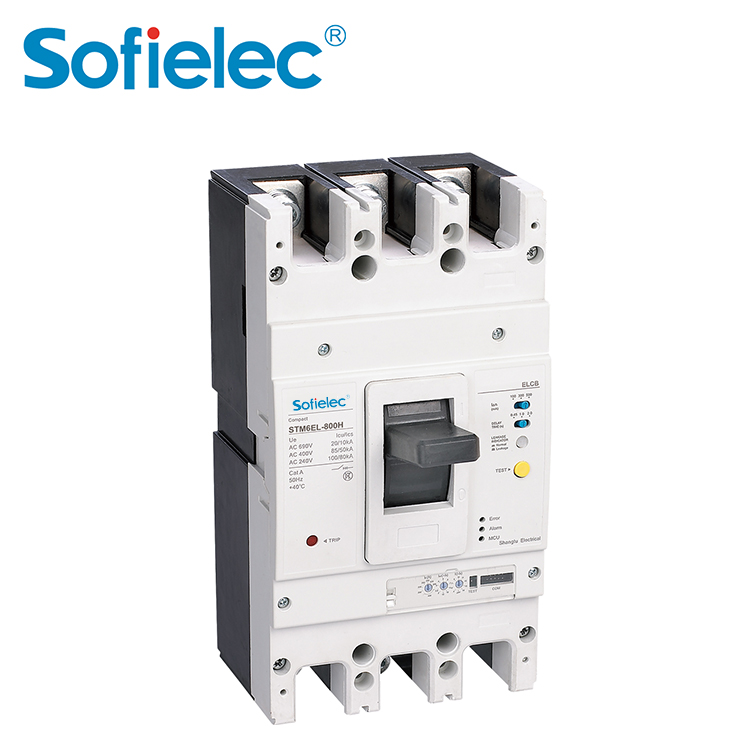

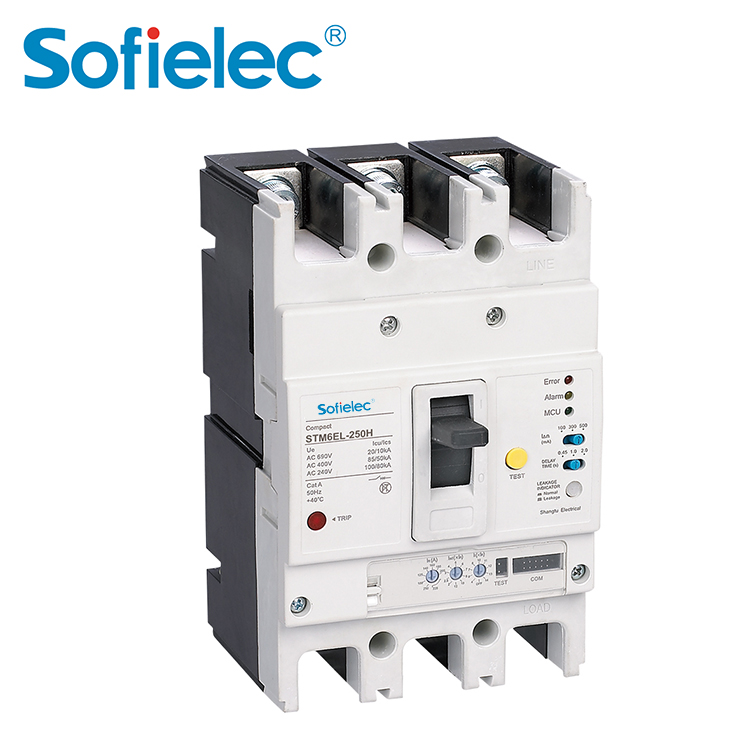

Product show

STM6EL 1250A Residual Current Operated mccb 3P 4P Circuit Breakers RCCB

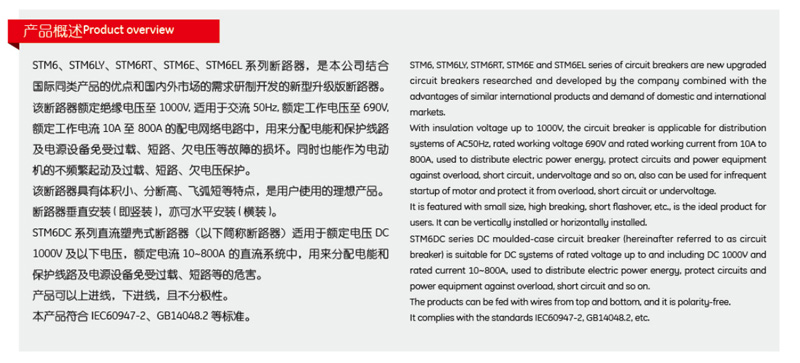

Product overview

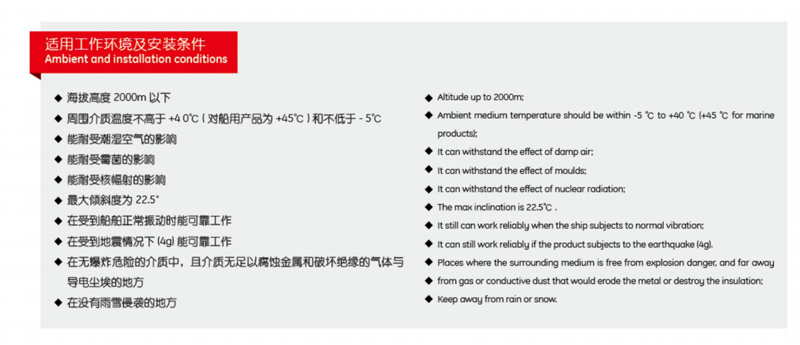

Ambient and installation conditions

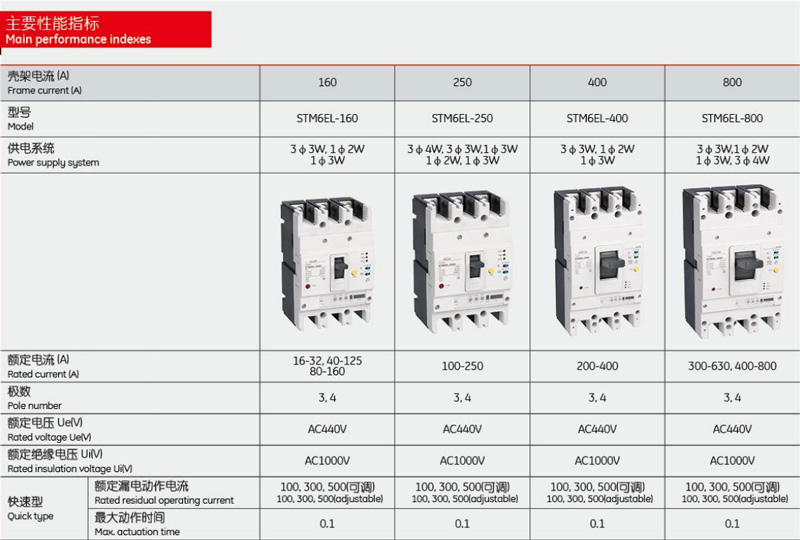

Main performance indexes

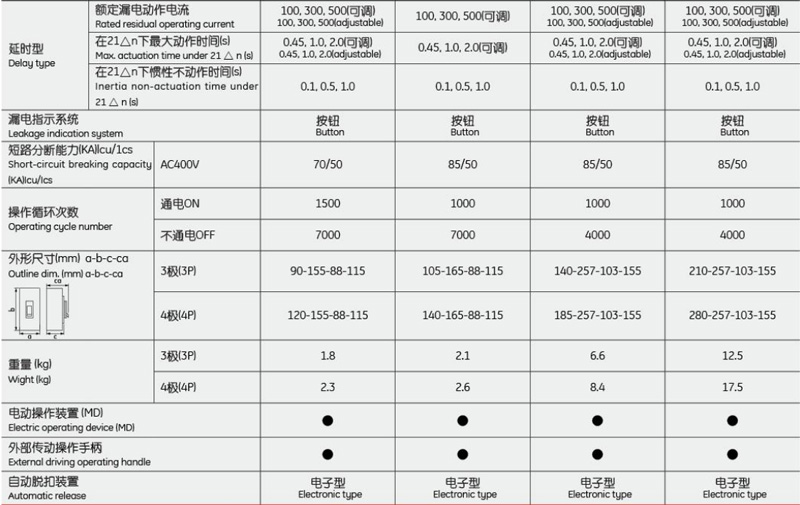

Deloy type,Leakage indication system
