| Categories | Plug |
| Model | 56P320 |
| Current | 10A 20A 32A 40A 50A |
| Pole | 4P 5P |
| Dimension | a 180 b 78 |
Description

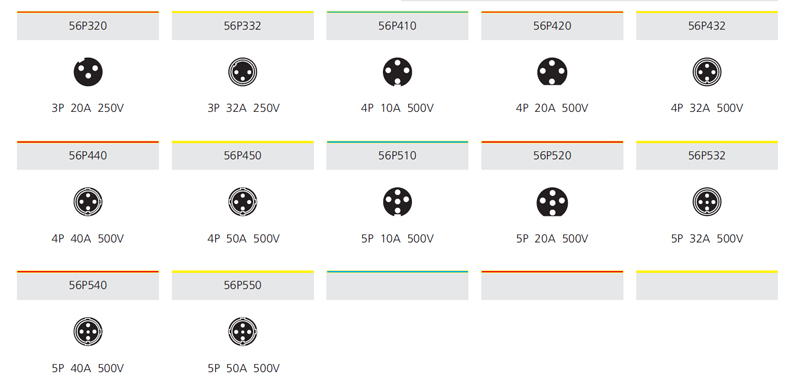

Parameter
| Current(A) | 10 | 20 | 32 | 40 | 50 | ||||||||
| Pole(P) | 4 | 5 | 3 | 4 | 5 | 3 | 4 | 5 | 4 | 5 | 4 | 5 | |
| Dimension(mm) | a | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| b | 78 | 78 | 78 | 78 | 78 | 78 | 78 | 78 | 78 | 78 | 78 | 78 | |

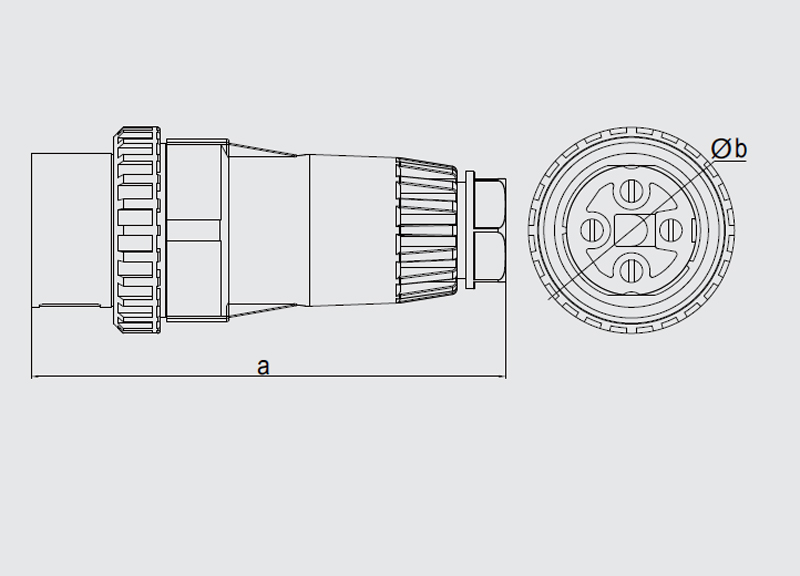

Dimension
Standard
In line with Australian National Standard AS/NZS 3123:20005
