| Categories | Superior 10kA 16 Series Circuit Breaker |
| Pole No | 1P+N, 2P, 3P, 3P+N,4P |
| Residual current characeristsis | Ac, A |
| Rated .curret(A) | 1,2,3,4,5,6, 10, 16, 20, 25, 32, 40, 50, 63 |
| Tripping curve | B,C,D |
| Rated short-circuit capacity | 6kA |
| Rated voltage | 230/400V AC |
| Rated frequency | 50/60Hz |
| Rated residual operating current(A) | 0.03, 0.1, 0.3 |
| Tripping duration | instantaneous≤0.1s |
| Electro-mechanical endurance | 4000 cycles |
Technical Data
|
Pole No.: 1P+N, 2P, 3P, 3P+N, 4P |
|
Residual current characteristics: AC, A |
|
Rated current (A): 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50, 63 |
|
Tripping curve: B, C, D |
|
Rated short-circuit capacity: 6kA |
|
Rated voltage: 230/400V AC |
|
Rated frequency: 50/60Hz |
|
Rated residual operating current(A): 0.03, 0.1, 0.3 |
|
Tripping duration: instantaneous≤0.1s |
|
Electro-mechanical endurance: 4000 cycles |
|
Terminal Connection Height: H1=19mm, H2=23mm |
Application

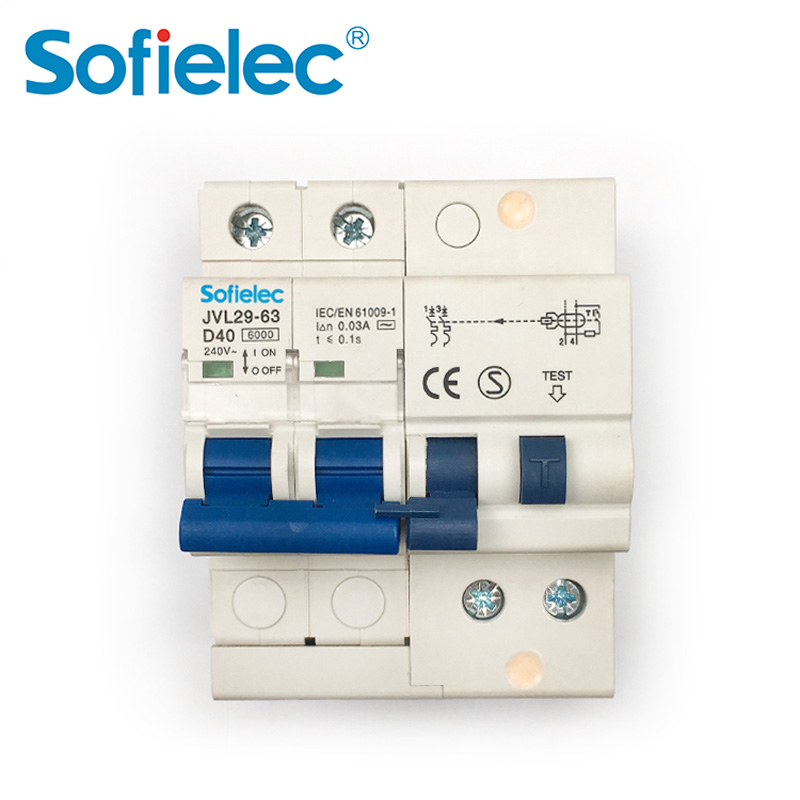

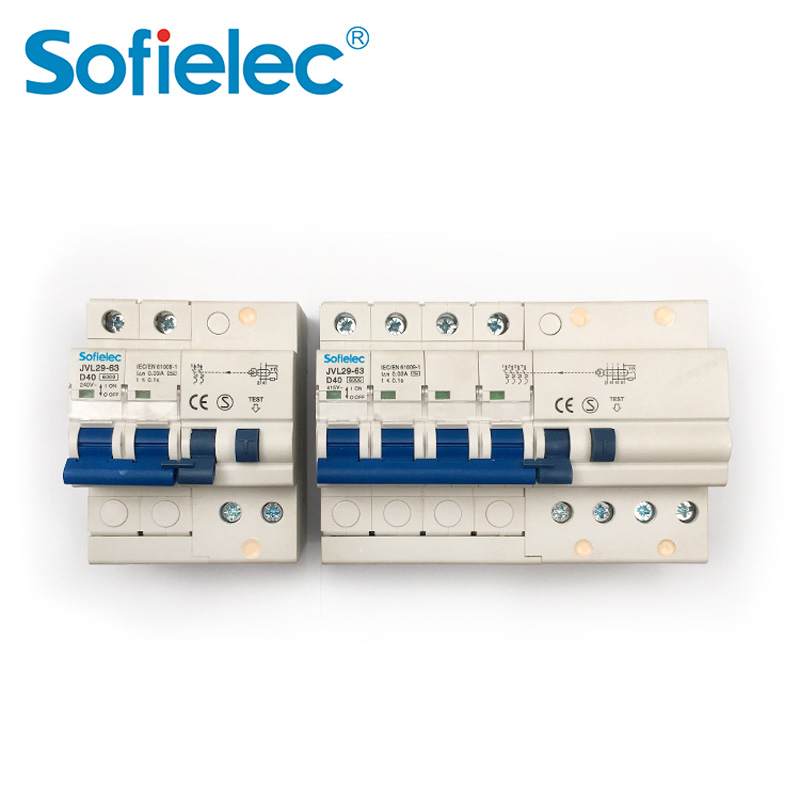

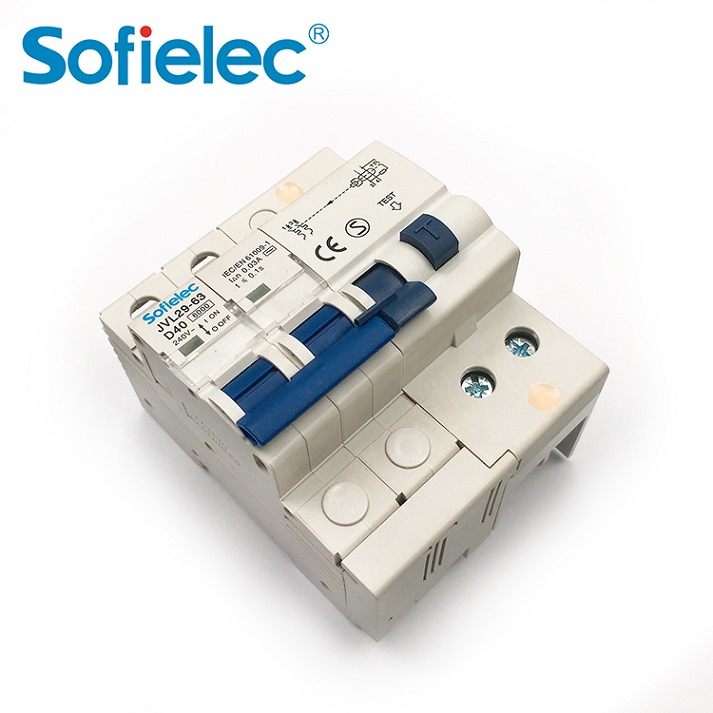

JVL29-63 is applicable to residual operating current with rated voltage
230V/400V,frequency 50/60HZ and rated current up to 63A. It is used to perform the
human electricity shock protection as well as over current protection and short circuit
protection for line equipment in building or similar locations, it also can provide the
protection against the fire danger caused by the fault current that is resulted from the
electric equipment damage.
The circuit breaker is applicable for kinds of fields such as the industry, commerce, high rise building, civil building, etc.

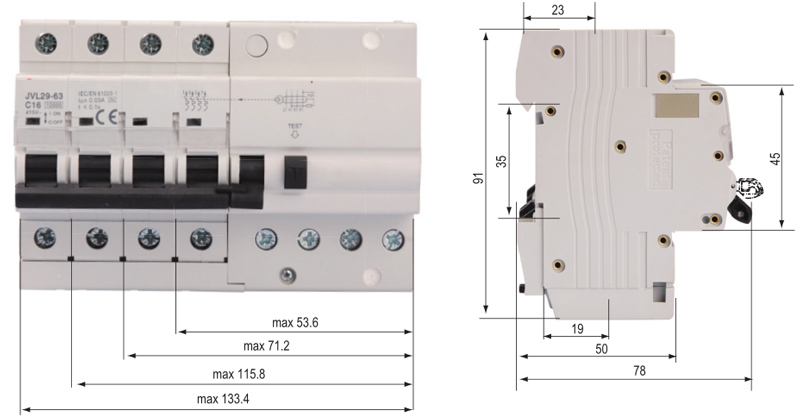

Overall & Installation Dimensions

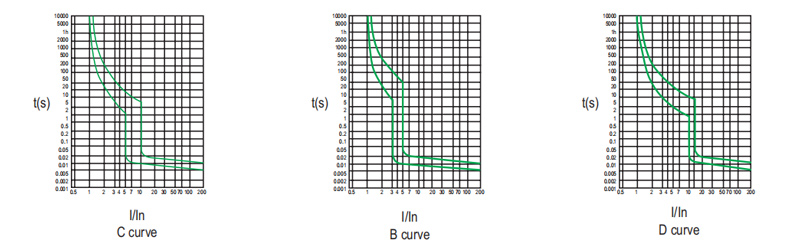

Characteristic Curve

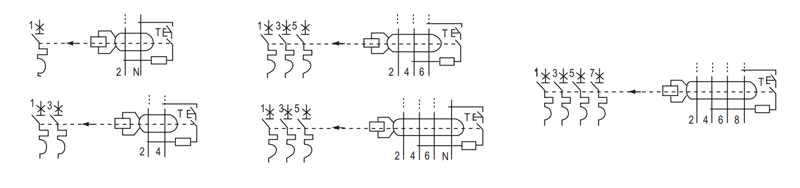

Wiring Diagram
