Technical Parameter
■Executive standards: IEC61009, GB/T16917.1
■Residual operating current characteristics: A, AC
■Number of poles: 1P+N (N poles can be disconnected)
■Rated current: 6, 10, 16, 20, 25, 32, 40A
■Rated voltage: AC 230
■Rated frequency: 50HZ
■Rated residual operating current (I △ n) A: 0.03, 0.1
■Rated residual non operating current: 0.5I △ n~I △ n
■Mechanical and electrical life: 4000 times
■Terminal wiring cross-sectional area: 10mm ² And below wires
■Wiring terminal: screw terminal
■Wiring method: column type wiring method
■Tightening torque: 1.2N. m
■Rated breaking capacity: 6000A

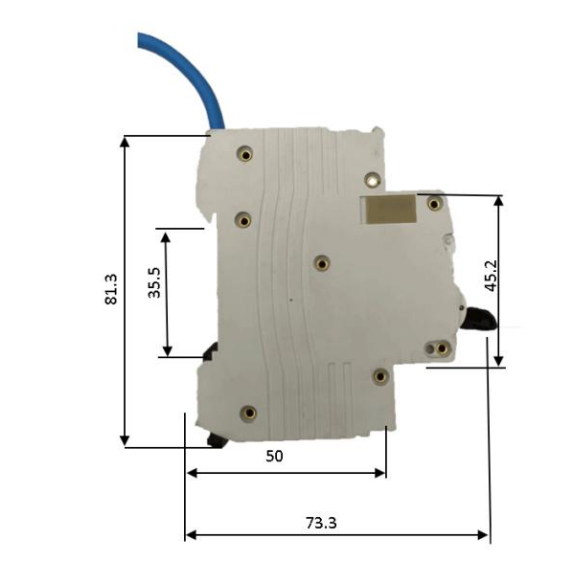

Installation:
■35.5mm guide rail installation
■Vertical installation
■Shell protection level: IP2
