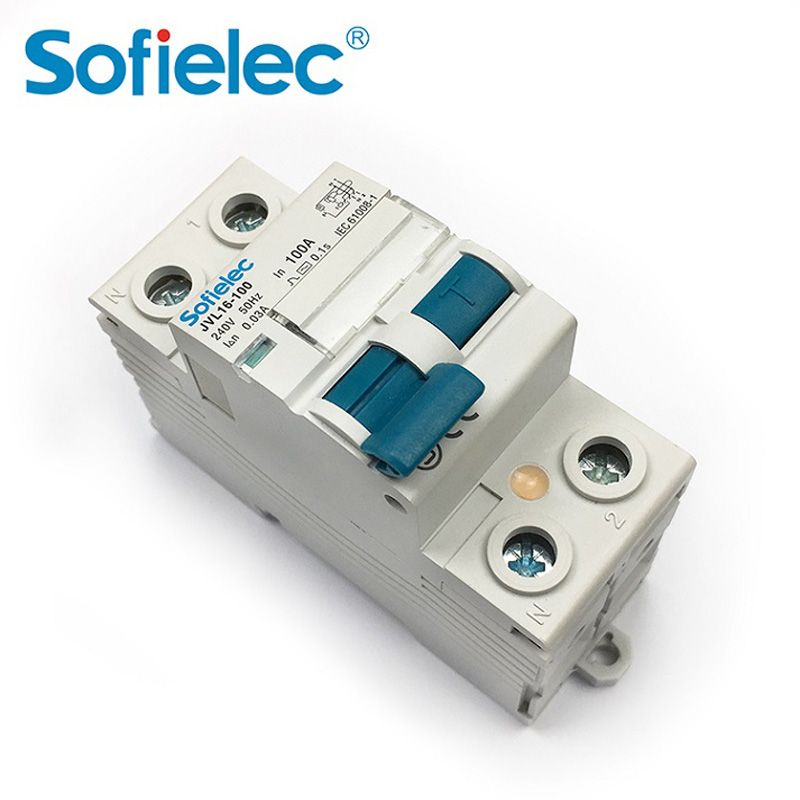

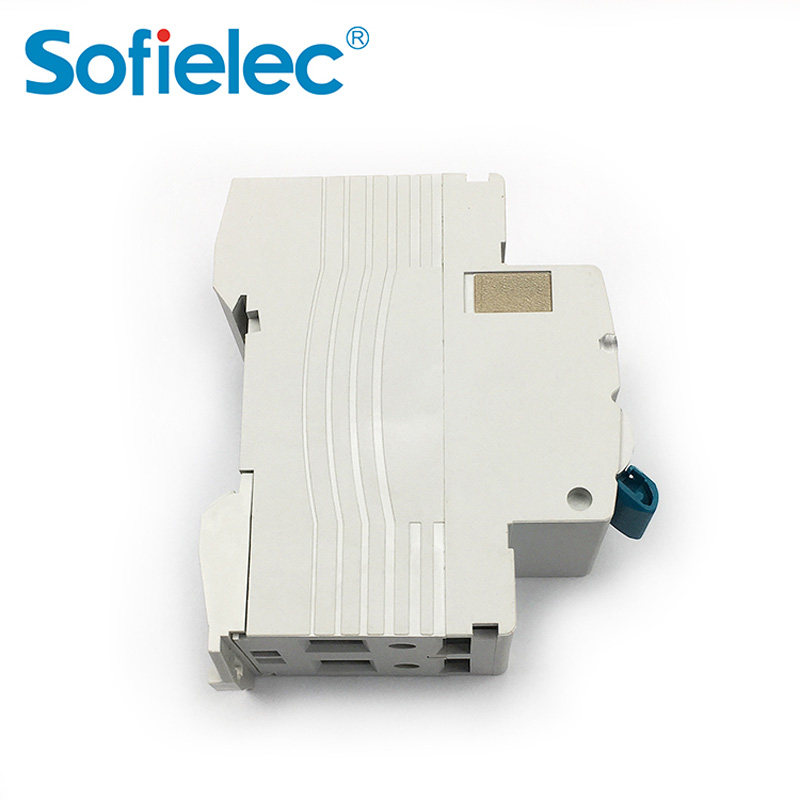

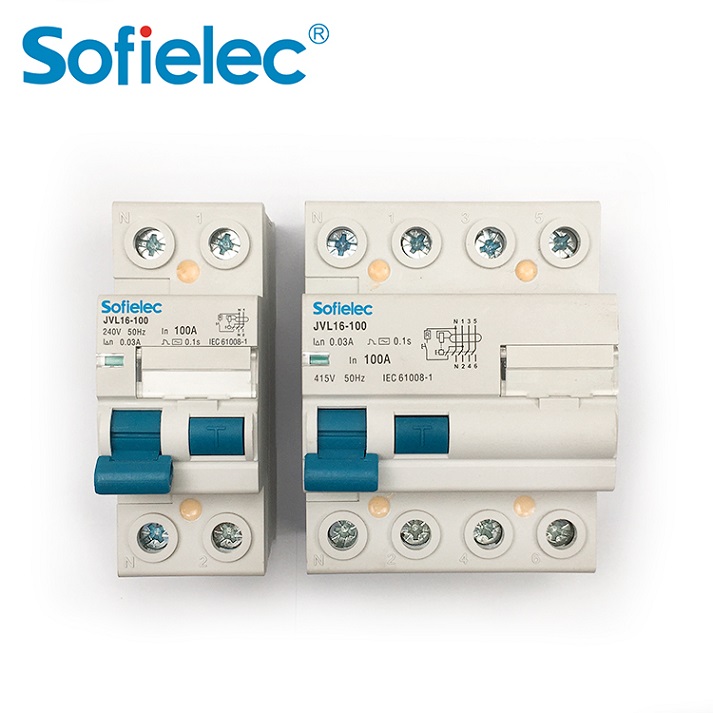

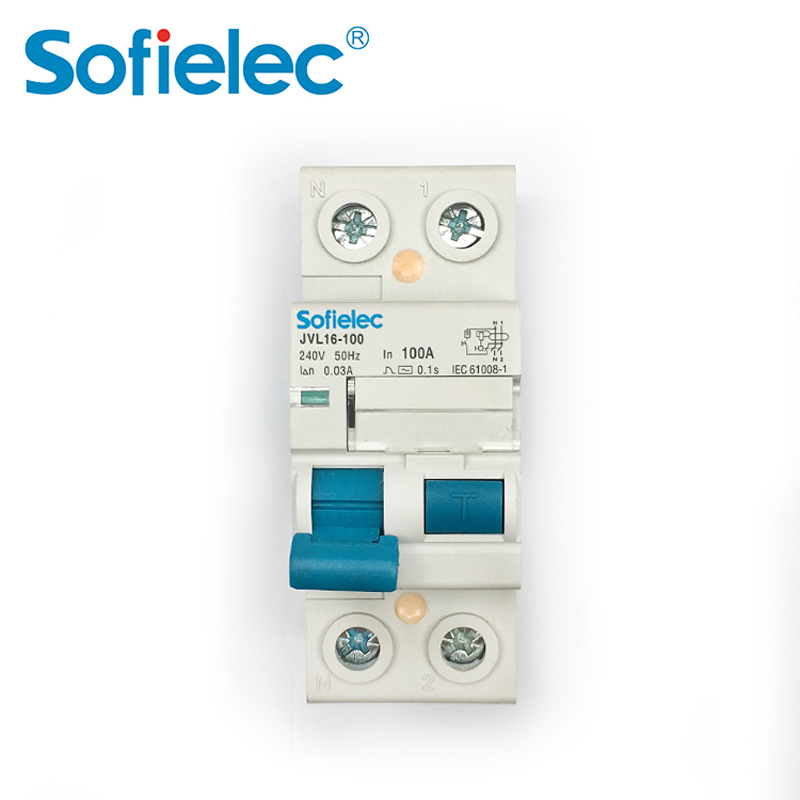

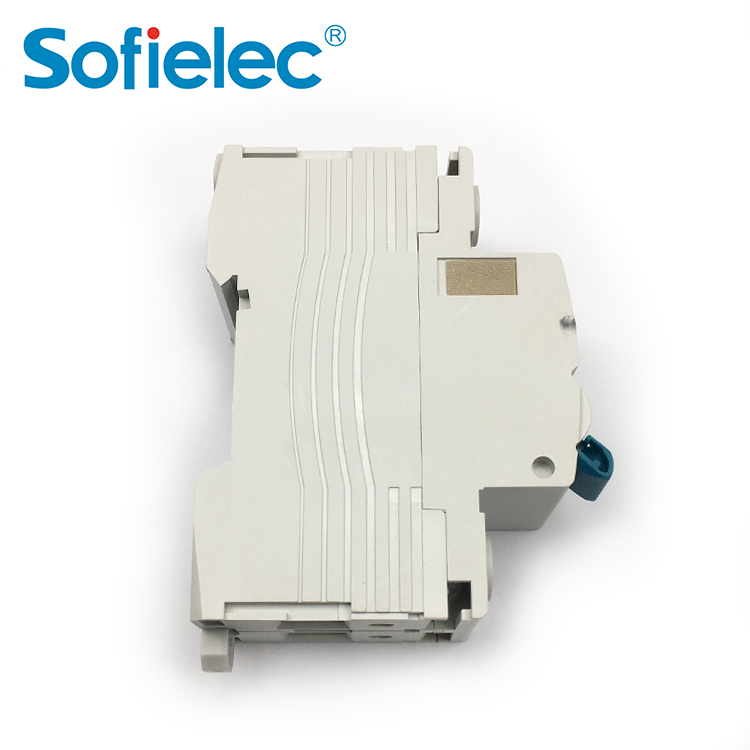

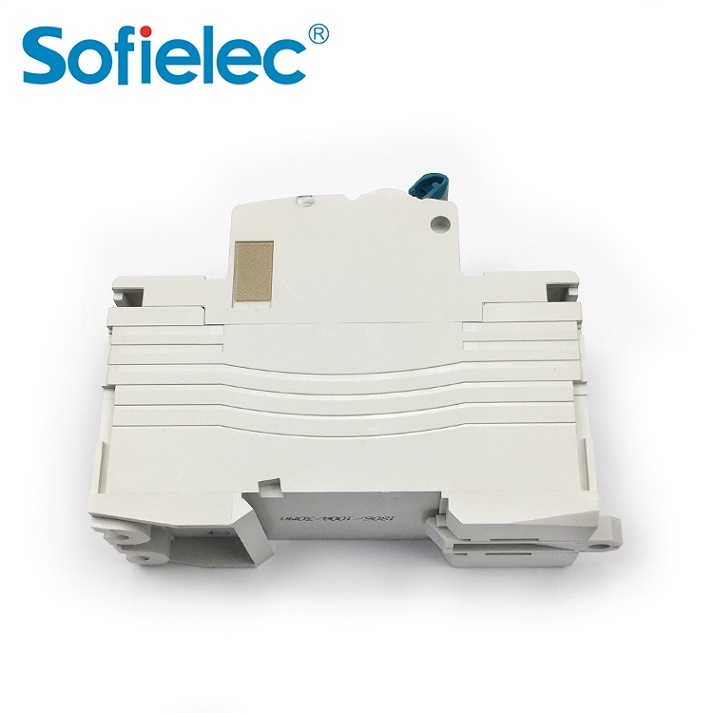

JVL16-100 2P Automatic Residual Current Circuit Breaker

Residual Current Circuit Breaker
Residual Current Circuit Breaker
Automatic Residual Current Circuit Breaker
2P RCCB
2P 63A RCCB
RCCB 2P

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

JVL16-100 residual current circuit breaker is equipped with a contact position indication window to facilitate users to check its status. The transparent lid is designed to carry labels for easy identification.

When an overload occurs in the protected circuit, the RCCB's handle will trip and stay in the center position for quick troubleshooting. When operating manually, the handle cannot be kept in this position, which can avoid misoperation.

RCCB provides ground fault and leakage current protection and enables isolation. It has high short-circuit current withstand capability, is suitable for terminal and pin/fork busbar connections, and is equipped with finger-proof connection terminals.

Fire-resistant plastic parts enable the RCCB to withstand abnormal heat generation and strong impacts. When a ground fault or leakage current occurs and the rated sensitivity is exceeded, the RCCB will automatically open the circuit.

The work of RCCB has nothing to do with power supply and line voltage, and is not affected by external interference and voltage fluctuations, ensuring its stable and reliable performance.



Categories Superior 10kA 16 Series Circuit Breaker
Mode electro-magnetic type
Residual current characteristics A,AC,G,S
Pole No 2, 4
Rated making and breaking capacity 10InA
Rated current(A) 63, 80, 100
Rated voltage AC 230/400
Rated frequency 50/60Hz
Terminal Connection Height 19mm
Electro-mechanical endurance 4000 cycles
Protection class IP20





Automatic Residual Current Circuit Breaker Technical Data

RCCB 25A 2P



● Mode: electro-magnetic type

● Residual current characteristics: A, AC,G,S

● Pole No.: 2, 4

   ● Rated making and breaking capacity:            500A(ln=25A,40A) or 630A(ln=63A)

● Rated current(A): 25, 40, 63

● Rated voltage: AC 230(240)/400(415)

● Rated frequency: 50/60Hz

● Rated residual operating current IAn(A):0.03, 0.1, 0.3, 0.5

●Rated residual non operating current lAno: 0.5IAn

● Rated conditional short-circuit current Inc: 10kA

10kA JVL16-100 Popular 2p automatic Residual Current Circuit Breaker

● Rated conditional residual short-circuit Current I Ac: 10kA

● Residual tripping current range: 0_5IAnH An

● Terminal Connection Height: 19mm

● Electro-mechanical endurance: 4000 cycles

● Connection capacity: Rigid conductor 25mm²

● Connection terminal:Screw terminal

● Pillar terminal with clamp

● Fastening torque: 2.0Nm

● Installation: On symmetrical DIN rail 35mm Panel mounting

● Protection class:IP20

Automatic Residual Current Circuit Breaker Construction and Feature

10kA JVL16-100 Popular 2p automatic Residual Current Circuit Breaker

Elegant appearance; cover and handle in arc shape make comfortable operation. Contact position indicating window

Transparent cover designed to carry label.

In case of overload to protected circuit, RCBO handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operated manually.

RCBO handle can be locked either at “ON” position or at“OFF” position to prevent unwanted operation of the product.

Provides protection against earth fault/leakage current, short-circuit and overload

High short-circuit capacity

Provides complementary protection against direct contact by human body.

Effectively protects electric equipment against insulating failure

Contact position indication

Provides protection against over-voltage

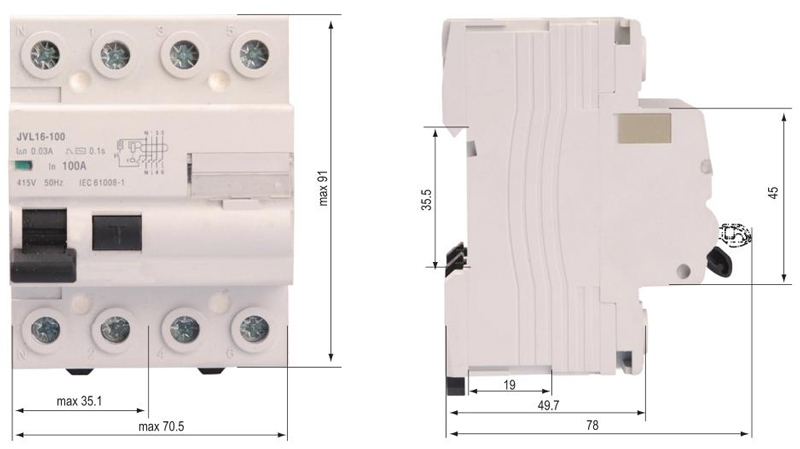

Residual Current Circuit Breaker Overall & Installation Dimensions

Overall & Installation Dimensions

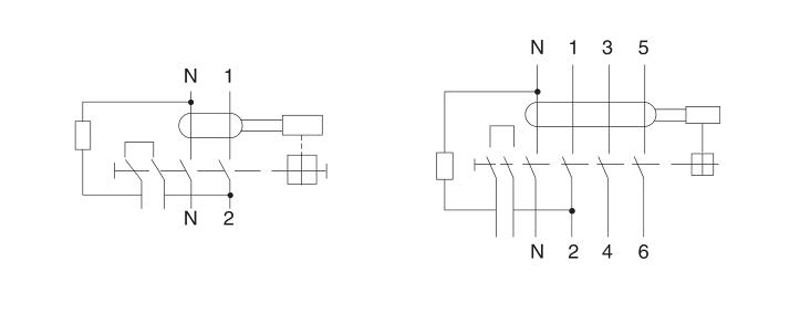

Automatic Residual Current Circuit Breaker Wiring Diagram

Wiring Diagram

Automatic Residual Current Circuit Breaker Video
