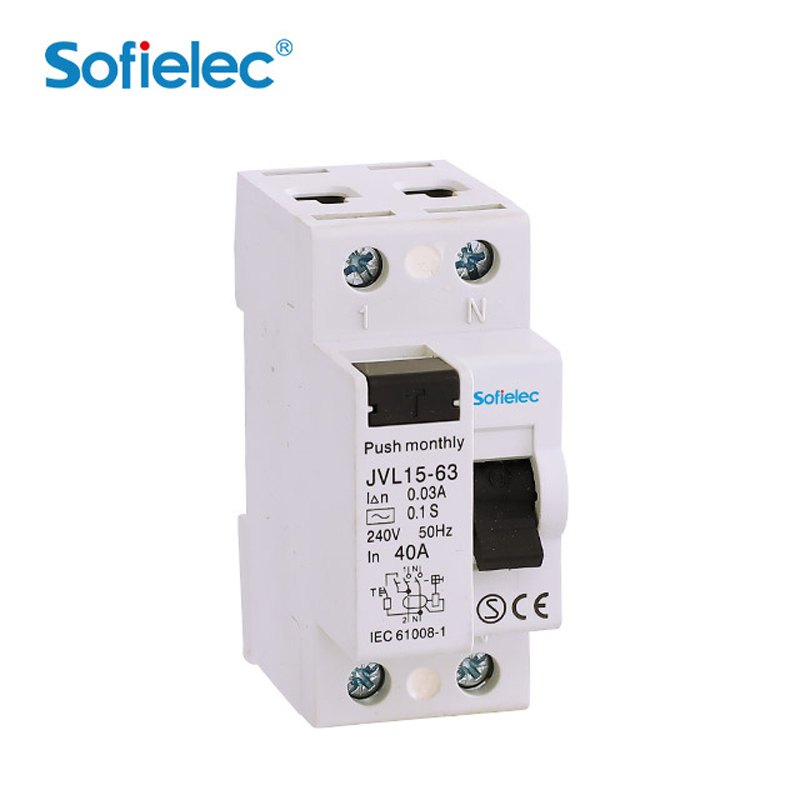

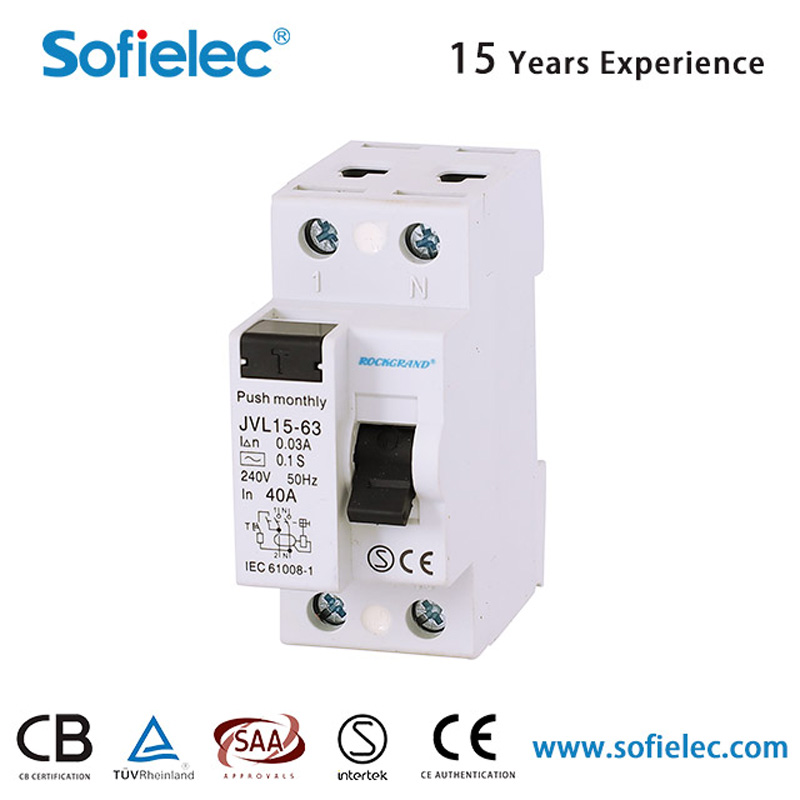

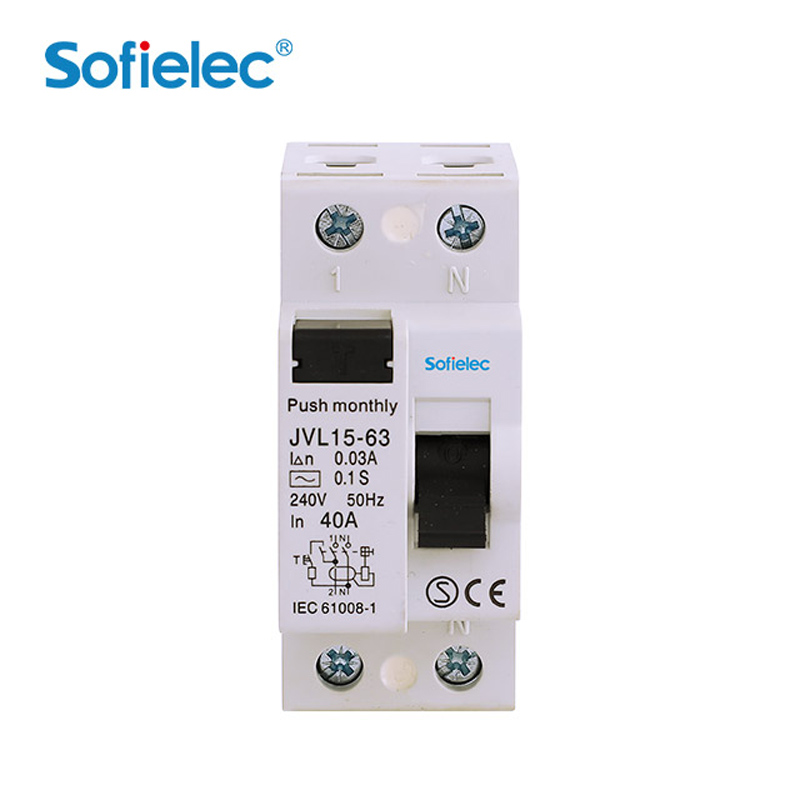

JVL15-63 RCCB Circuit Breaker is used for circuit protection overload and leakage protection. The working principle of RCCB is to continuously monitor the current flowing through the circuit. If the RCCB detects leakage current (which may indicate an electrical fault or someone touching a live part of the circuit), it will quickly trip and remove power from the circuit.
RCCBs are commonly used in residential, commercial and industrial electrical installations to provide additional safety and protection against electrical hazards. They are usually installed with standard circuit breakers to provide overload and fault protection.
| Categories | Economic 4.5KA, 6kA Regular Series Circuit Breaker |
| Mode | electro- magnetic type , electronic type |
| Residual urrent charateristis | A, AC |
| Pole No | 2, 4 |
| Rated current(A) | 16, 25, 40, 63 |
| Rated voltage | AC 230/400V |
| Rated frequency | 50/60Hz |
| Terminal Connection Height | 21mm |
| Electro-mechanical endurance | 4000 cycles |
| Fastening torque | 2.0N.m |
| Protection class | IP20 |
RCCB Circuit Breaker 16A/6KA/6.2KV Technical Data
|
l Mode: electro-magnetic type, electronic type |
|
l Residual current characteristics: A, AC |
|
l Pole No.: 2, 4
|
|
l Rated making and breaking capacity: 500A(In=25A,32A,40A) or 630A(In=63A) |
|
l Rated current(A): 16, 25, 40, 63 |
|
l Rated voltage: AC 230/400V |
|
l Rated frequency: 50/60Hz |
|
l Rated residual operating current I△n(A): 0.03, 0.1, 0.3, 0.5 |
|
l Rated residual non operating current I△no: 0.5I△n |
|
l Rated conditional short-circuit current Inc: 10kA |
|
l Rated conditional residual short-circuit Current I△c: 10kA |
|
l Residual tripping current range: 0.5I△n~I△n |
|
l Terminal Connection Height: 21mm |
|
l Electro-mechanical endurance: 4000 cycles |
|
l Connection capacity: Rigid conductor 25mm ² |
|
l Connection terminal:Screw terminal |
|
l Pillar terminal with clamp |
|
l Fastening torque: 2.0N.m |
|
l Installation:On symmetrical DIN rail 35.5mm Panel mounting |
|
l Protection class:IP20 |
JVL15-63 RCCB Circuit Breaker 16A/6KA/6.2KV Construction and Feature
Provides protection against earth fault/leakage current and function of isolation
High short-circuit current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Contact position indication
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/ leakage current occurs and
exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external interference,voltage fluctuation.

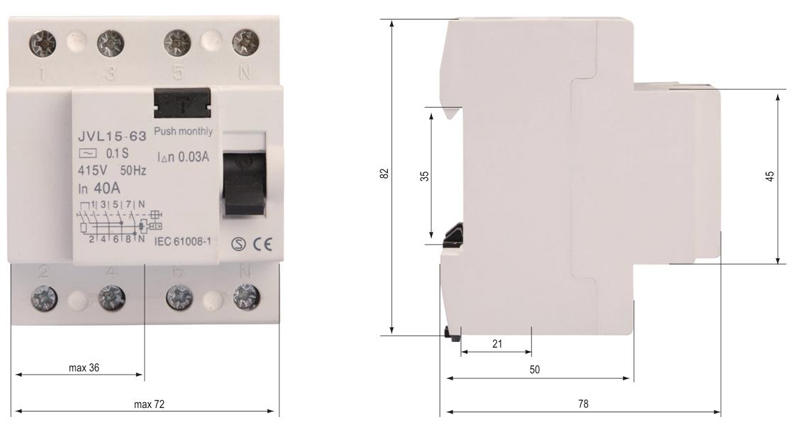

RCCB Circuit Breaker 16A/6KA/6.2KV Overall & Installation Dimensions

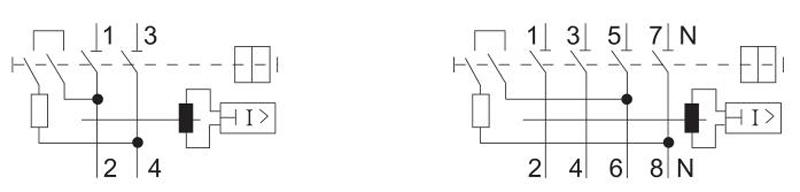

JVL15-63 RCCB Circuit Breaker 16A/6KA/6.2KV Wiring Diagram
Thank you for your interest in our JVL15-63 RCCB Circuit Breaker. We are pleased to offer this high quality 16A/6KA/6.2KVRCCB circuit breaker. Our products are designed to provide reliable protection for your circuits and are sold directly from the factory at affordable prices.
If you have any specific requirements or would like to place an order, please feel free to contact us directly. We are committed to providing good customer service and making sure you get the product that meets your needs.
