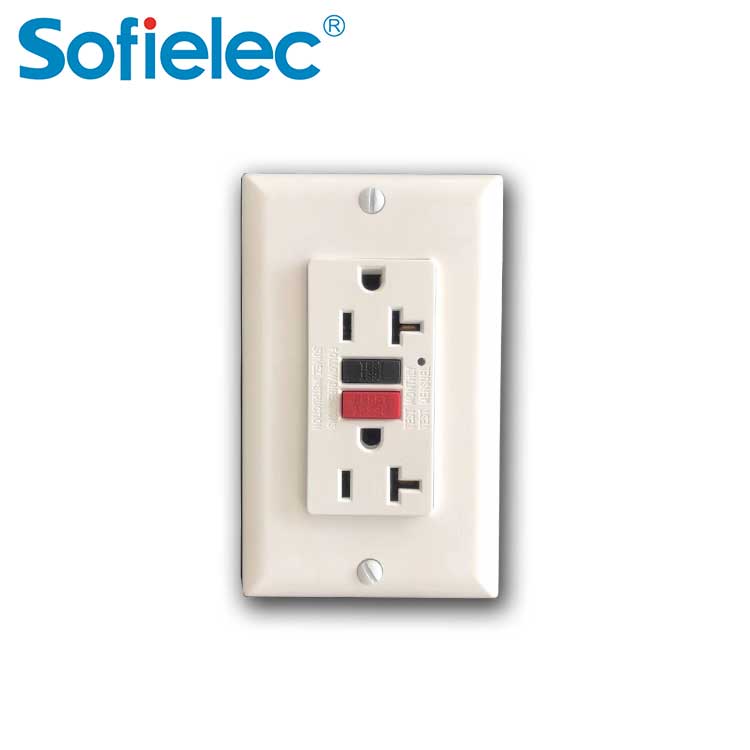

Product: Ground fault leakage protection socket GFCI
Input voltage 125VAC 60HZ
Protection function: short circuit, ground fault, leakage current
Maximum operating current 20A
Rated residual operating current 4-6mA
Tripping time within 25mS
Appearance color: white, button red + black
Product material flame retardant PC, glow wire over 650 degrees
Withstand voltage Input and output ≧1500VAC; between electrode and shell ≧4000VAC
Implement standard UL943
Working temperature -20℃ to 40℃
Product warranty 1 year
