DC Surge Protection Device CXPV-1000 Applications
CHXI series photovoltaic spd with reliable voltage protection, extra strong safety overload characteristics and super surge current discharge ability, which can be used as lightning pfotection of power distribution system for PV.
CHXI series of PV SPD with high energy MOV chip: nanosecond response speed Flexibfe and convenient combination, safe protection function. Products comply with CGC/GF 026:2013; EN50539-11:2013 standard.
DC Surge Protection Device CXPV-1000 Video
DC Surge Protection Device Electrical SPD 1000V Surge Protector CXPV-1000 Technical Data
|
Model |
CHXI40U |
CHXI-60U |
CHXI^SOU |
|
Uopv(V) |
24 M8/200/300 |
30G/500 m/80D |
300/500/600/80 |
|
Ucpv (V) |
75/ 10D/300/50D |
500 /600 i 80D 11000 |
500 /600 1 800 |
|
In (kA) |
2D |
3D |
40 |
|
Imax (kA) |
40 |
60 |
80 |
|
Up (kV) |
<0.3；< 0-5M20/<2-8 |
< 2.8 / <3.0/<3.5 /<4 |
|< 2.8 / <3.0/<3.5 |
|
Local indicator |
Green indicates normaJ staie and |
||
|
Protection class !P |
IP20 |
||
|
Materia! |
PA66 |
||
|
he outer flame retardant grade |
/comply with UL94V-0 |
||

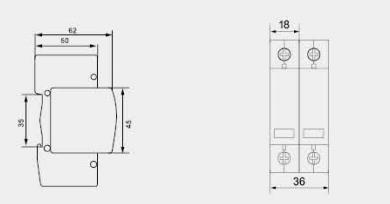

DC Surge Protection Device Electrical SPD 1000V Surge Protector CXPV-1000 Dimensions
DC Surge Protection Device Function
U type structure, common mode protection mode.SuElt in overheating, over-currentprotection median ism .
Reliable quenching device .The local fault indication, convenient snd timely replacement.Alarm contact, realize function of remote communication.Modular structure design, convenient for maintenance.Standard 35mm track design, convenient installation.
