Capable of switch electric circuit with load
Adaptable to padlock device
Contact position indication
Capable of quickly releasing stored energy operation
Highlighted of high making and breaking capacity
High short-circuit current withstand capacity
Used as main switch for household and similar installation

Categories Superior 10kA 16 Series Circuit Breaker
Pole No 1, 1P+N, 2, 3, 3P+N, 4
Rated voltage AC 230/400V
Rated current(A) 20, 25, 32, 40, 50, 63, 80, 100, 125.
Tripping curve C, D
Rated impulse withstand voltage 6kV
Rated frequency 50/60Hz
Electro-mechanical endurance In≤100=1001000;ln125=8000
ultimate short-circuit breaking capacity 10kA
service short-circuit breaking capacity(Ics) 7 .5kA
Connection terminal Pillar terminal with clamp
Technical Data

l Pole No.: 1, 1P+N, 2, 3, 3P+N, 4

l Rated voltage: AC 230/400V

l Rated current (A)::20, 25, 32, 40, 50, 63, 80, 100, 125

l Tripping curve: C, D

l Ultimate short-circuit breaking capacity (leu): 10kA

l Service short-circuit breaking capacity(lcs):7.5kA

l Rated impulse withstand voltage:6kV

l Electro-mechanical endurance: Insl00=10000;ln125=8000

l Connection terminal: Pillar terminal with clamp

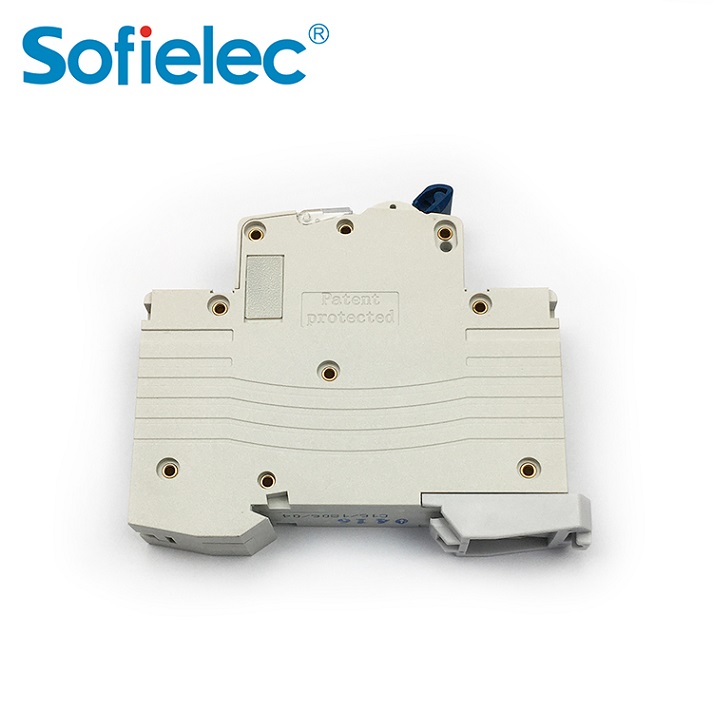

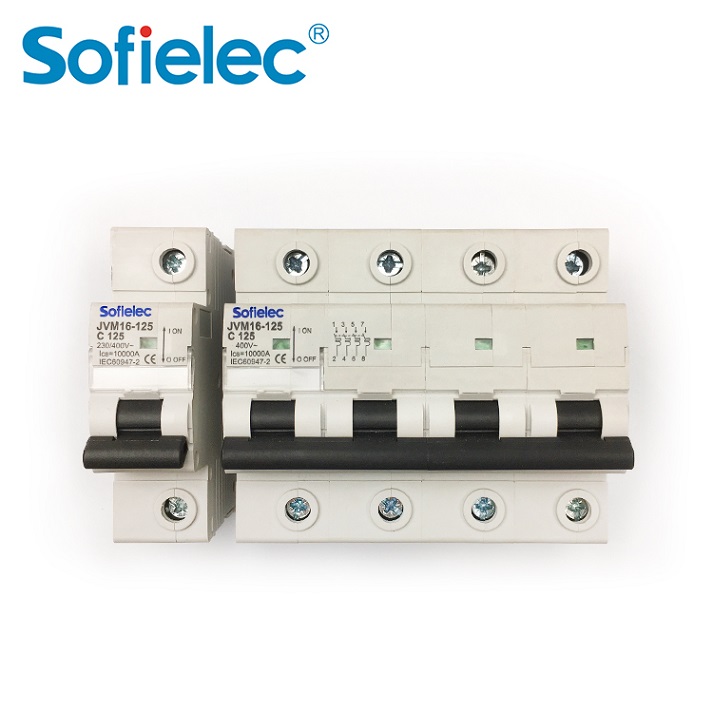

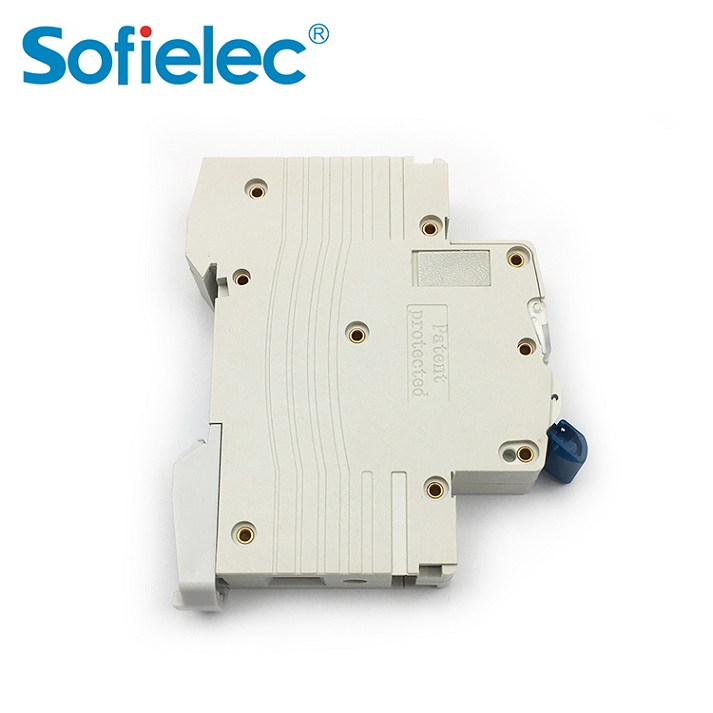

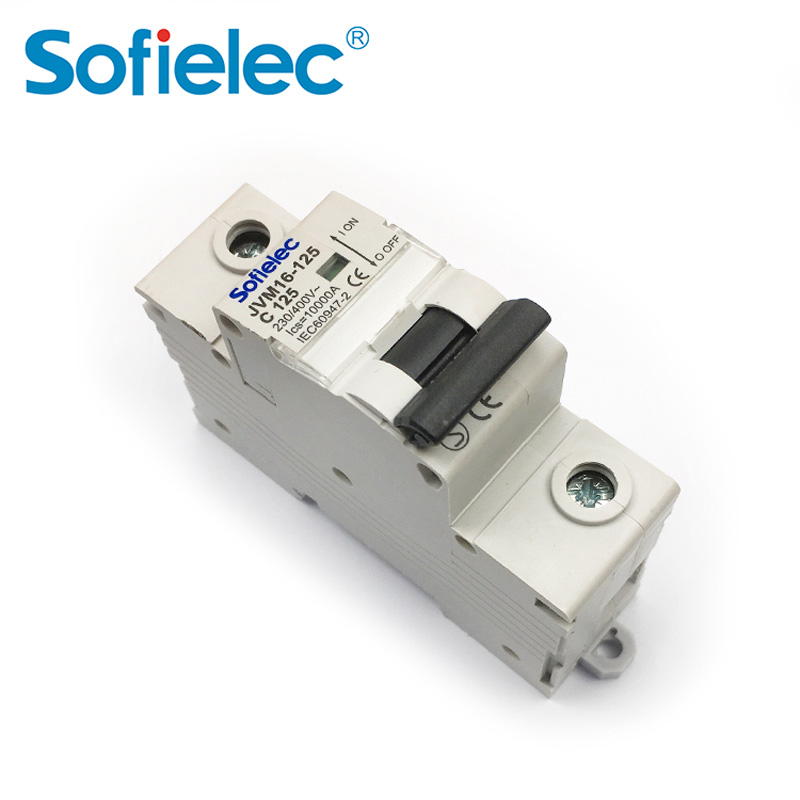

JVM16-125 miniature circuit breaker

l Gonnection capacity:Flexible conductor 35mm2 Rigid conductor 50mm²

l Installation:

On symmetrical DIN rail 35mm Panel mounting

l Terminal Connection Height: 20mm
Construction and Feature

l High short-short capacity 10KA.

l Designed to protect circuit carrying big current up to 125A

l Contact position indication.

l Used as main switch in household and similar installation

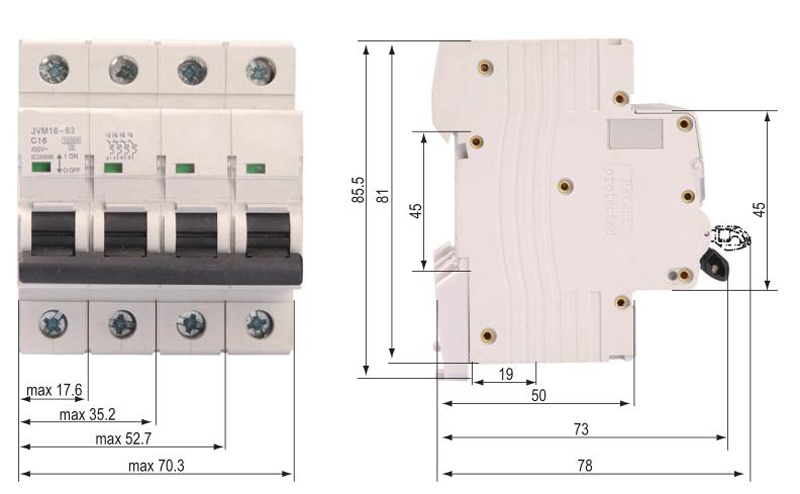

Overall & Installation Dimensions
JVM16-125 miniature circuit breaker parameter

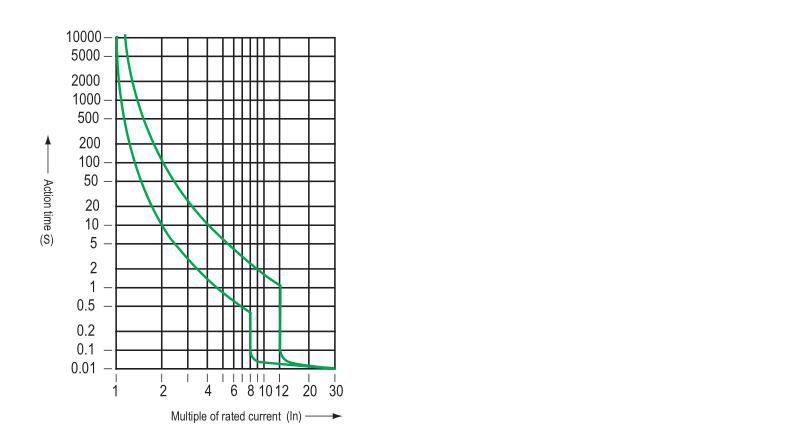

Characteristic Curve
Characteristic Curve
