| Categories | Time Relay |
| Model | ATMS4 |
| Supply Voltage | 24~ 240VAC/DC 50-60Hz |
| Time Range | 0.05S ~ 60S, 0.5S~ 10M, 0.5M ~ 10H (Can be customized according to customer requirements) |
| Time setting | potentiometer |
| Time Deviation | 5% mechanical setting |
| Repeat Accuracy | 0.2% set value stability |
| Consumption | AC0.7-3 VA, /DC0.5- 1.7W |
| Supply Indication | Green Led |
| Output Indication | Red Led |
| Reset time | Max.200mS |
| Operating temperature | -10~ +50 |
Features
● 18mm wide
● Time setting from 0.05 Sec to 60 Sec Can be customized according to customer requirements
● Relay status is indicated by LED
● 35 mm rail mounting
● Multi-voltage
● Asymmetrical flasher(starting pulse on)

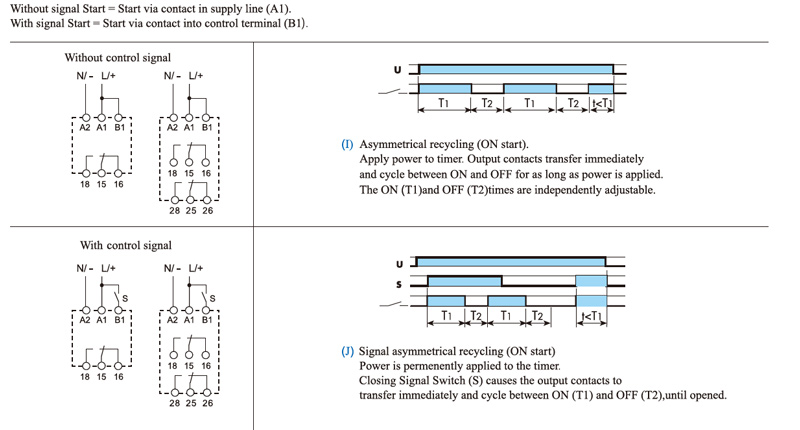

Function

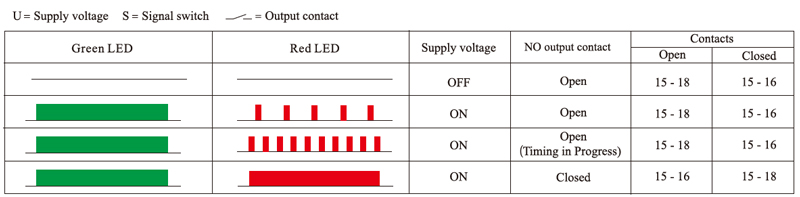

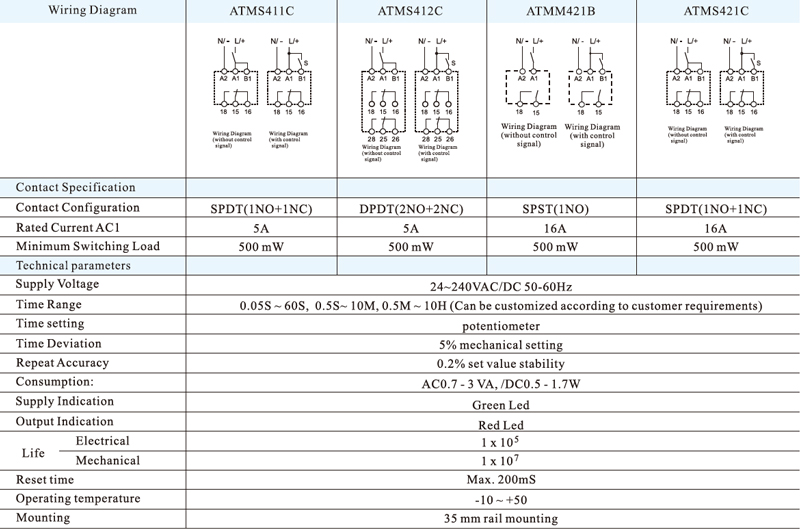

Technical date

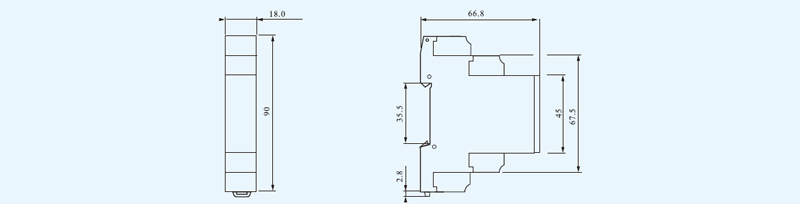

Dimensions

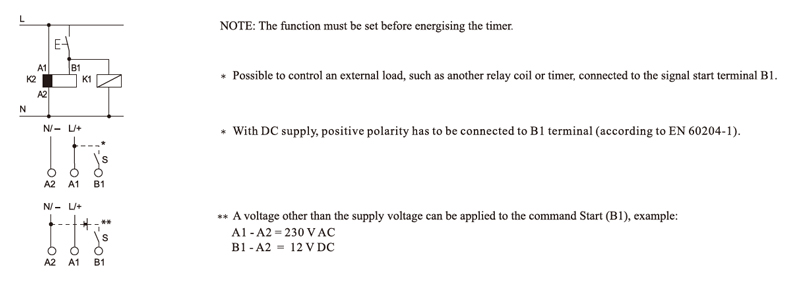

Wiring Diagrams
