ATMS On-Delay Modular Timer Relay

ATMS On-Delay Modular Timer Relay
ATMS On-Delay Modular Timer Relay

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Time Relay
Model ATMS2
Supply Voltage 24~ 240VAC/DC 50-60Hz
Time Range 0.05S ~ 60S, 0.5S~ 10M, 0.5M ~ 10H (Can be customized according to customer requirements)
Time setting potentiometer
Time Deviation 5% mechanical setting
Repeat Accuracy 0.2% set value stability
Consumption AC0.7-3 VA, /DC0.5- 1.7W
Supply Indication Green Led
Output Indication Red Led
Reset time Max.200mS
Operating temperature -10~ +50
Features

● 18mm wide

● Time setting from 0.05 Sec to 60 Sec Can be customized according to customer requirements

● Relay status is indicated by LED

● 35 mm rail mounting

● Multi-voltage

● On-Delay

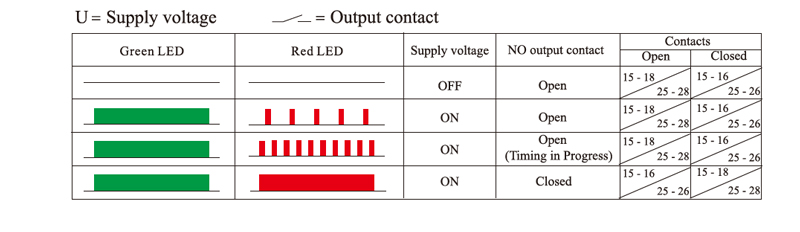

Function

Function

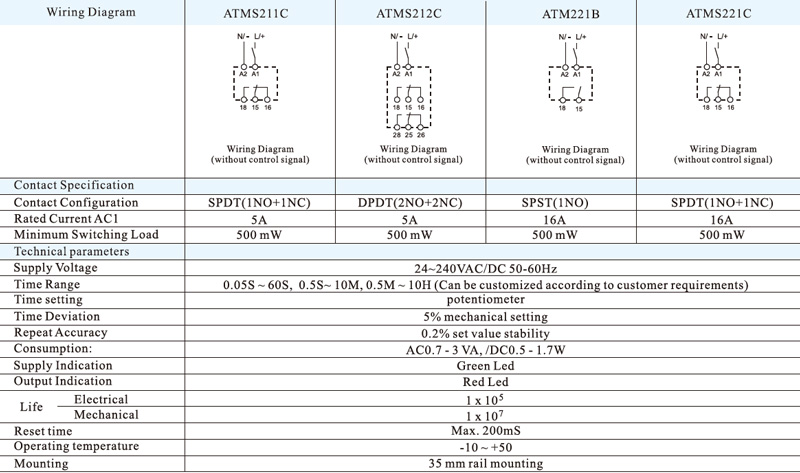

Technical date

Technical date:Wiring Diagram

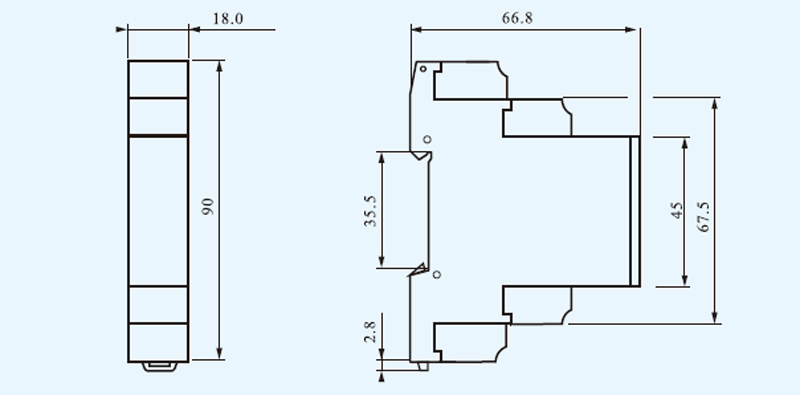

Dimensions

Dimensions

Wiring Diagrams

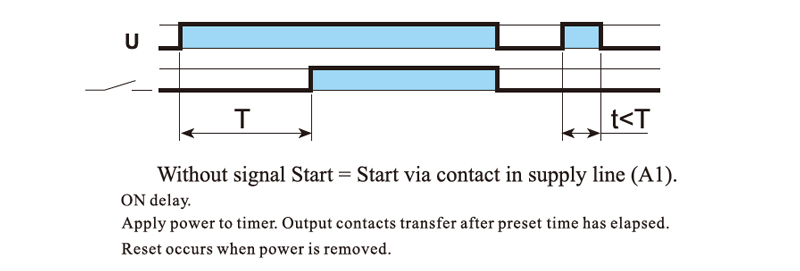

Wiring Diagrams:Without signal Start = Start via contact in supply line(A1)
