| Categories | Time Relay |
| Model | ZHRT1-D |
| Rated control supply voltage | AC110V. AC220V. AC380V 50/60Hz |
| Rated power consumption | AC:≤1.5VA DC:≤1W |
| Delay range | 0.1s~10min |
| Setting accuracy | ≤5% |
| Repeat accuracy | ≤0.2% |
| Repeat power- on interval | ≥200ms |
| Altitude | ≤2000m |
| Contact configuration capacity(A) | 5A |
| IP Class | IP 20 |
| Use category | AC-15 |
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Features
Built-in microcontrollers, knob setting, start time and conversion timeadjustable. LED indicator shows working status. Conversion control of star-delta, auto buck starting line . DIN rail mounting.
| Rated control supply voltage | AC110V、AC220V、AC380V、50/60Hz |
| Rated power consumption | AC:≤1.5VA DC:≤1W |
| Delay range | 0.1s~10min |
| Conversion time | 20ms~300ms |
| Setting accuracy | ≤5% |
| Repeat accuracy | ≤0.2% |
| Repeat power-on interval | ≥200ms |
| Electrical life | 105 |
| Mechanical life | 106 |
| Altitude | ≤2000m |
| IP Class | IP 20 |
| Class of pollution | Ⅲ |
| Contact configuration capacity(A) | 1 C/o 8A;2 C/O 5A,1C/O+1 instant C/O 5A |
| Use category | AC-15 |
| Contact capacity | Ue/Ie AC240V/1.5A, AC 380V/0.95A |
| Standard Guide | width 35mm(IEC/EN60715) |

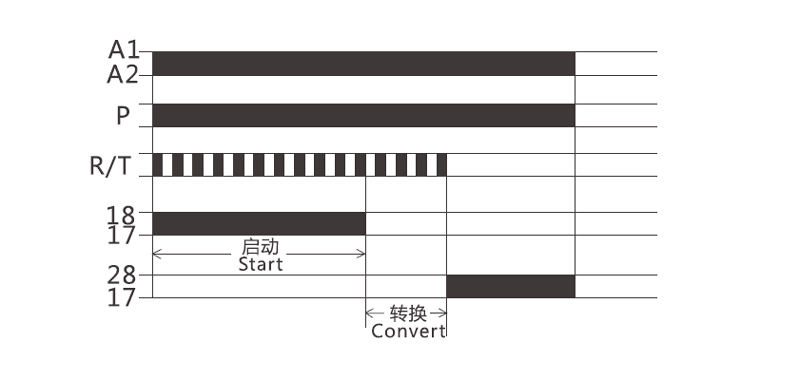

Function Diagram

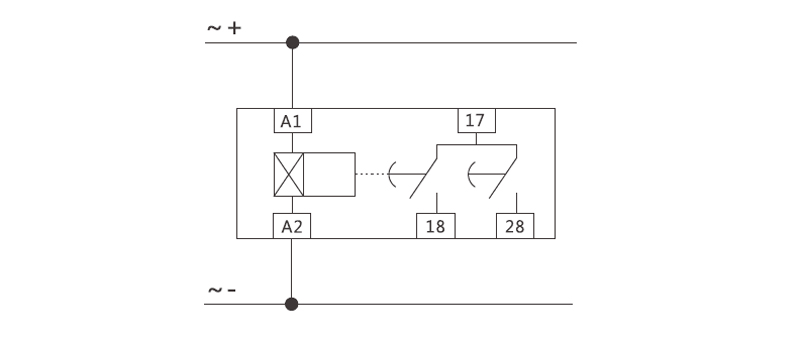

Wiring Diagram

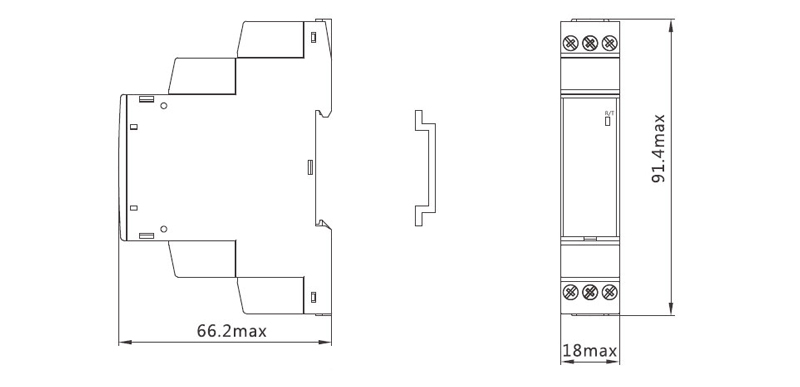

Dimensions
