ZHRT1-DS Sofielec time relay

ZHRT1-DS Sofielec time relay
ZHRT1-DS Sofielec time relay

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Time Relay
Model ZHRT1-DS
Rated control supply voltage AC110V. AC220V. AC380V AC/DC 24V~240V 50/60Hz
Rated power consumption AC:≤1.5VA DC:≤1W
Delay range 0.1s~100h
Setting accuracy ≤5%
Repeat accuracy ≤0.2%
Repeat power- on interval ≥200ms
Altitude ≤2000m
Contact configuration capacity(A) 1 C/O 8A,2 C/O 5A,1C/O+1 instant C/O 5A
IP Class IP 20
Use category AC-15
Function



Applications

Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection  of  over-voltage,  under  voltage, phase failure, phase sequence and phase unbalance. When the power  supply is abnormal, turn off power supply to protect the equipment.

Features

uilt-in microcontrollers, 0.1s ~100h wide delay range, repeat accuracy <0.2%. Knob setting, LED indicator shows working status. Variety of optionalrated voltage. DIN rail mounting.

Rated control supply voltage DC12V、DC24V、AC110V、AC220V、AC380V、AC/DC 24V~240V 50/60Hz
Rated power consumption AC:≤1.5VA DC:≤1W
Delay range 0.1s~100h
Setting accuracy ≤5%
Repeat accuracy ≤0.2%
Repeat power-on interval ≥200ms
Electrical life 105
Mechanical life 106
Altitude ≤2000m
IP Class IP 20
Class of pollution Ⅲ
Contact configuration capacity(A) 1 C/o 8A;2 C/O 5A,1C/O+1 instant C/O 5A
Use category AC-15
Contact capacity Ue/Ie AC240V/1.5A, AC 380V/0.95A

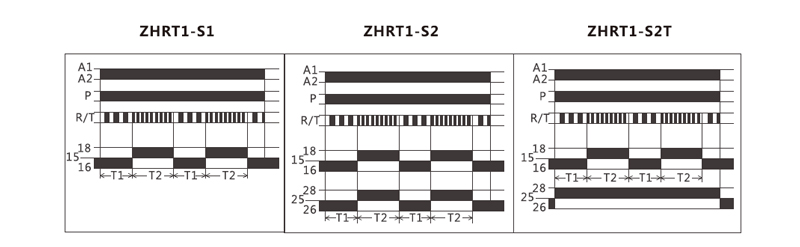

Function Diagram



Function Diagram:ZHRT1-S1,ZHRT1-S2.ZHRT1-S2T

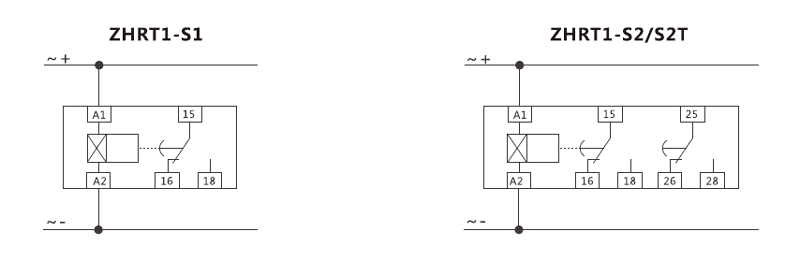

Wiring Diagram
Wiring Diagram:ZHRT1-S1,ZHRT1-S2/S2T

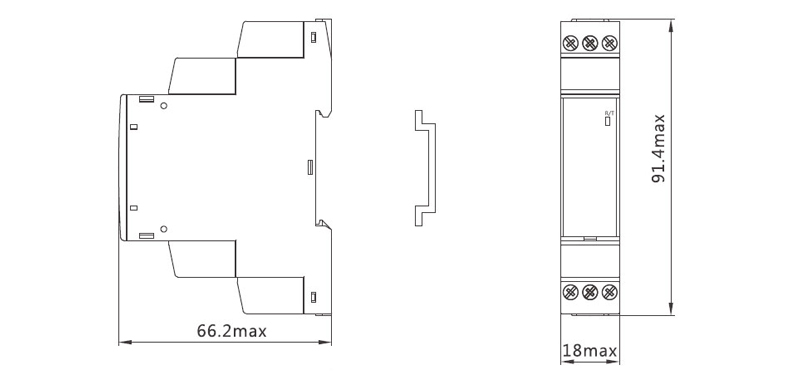

Dimensions
Dimensions
