| Categories | Time Relay |
| Model | ZHRT1-SD |
| Rated control supply voltage | AC110V. AC220V 50/60Hz |
| Rated power consumption | 12VA/0.7W |
| Delay range | 0.5s~20min |
| Setting accuracy | ≤±5% |
| Repeat accuracy | ≤±0.2% |
| Contact configuration capacity(A) | 16A |
| IP Class | IP 20 |
| Altitude | ≤2000m |
| Allowable relative humidity | ≤50% |
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Features
uilt-in microcontrollers, repeat accuracy <0.2%. Knob / dial button setting, LED indicator shows working status. with ON,OFF,AUTO ehree operating modes, DIN rail mounting.
| Rated control supply voltage | AC110V、AC220V、50/60Hz |
| Rated power consumption | 1.2VA/0.7W |
| Delay range | 0.5~ 20min |
| Setting accuracy | ≤±0.5% |
| Repeat accuracy | ≤±0.2% |
| Electrical life | 105 |
| Mechanical life | 106 |
| Altitude | ≤2000m |
| Contact configuration capacity(A) | 16A |
| IP Class | IP20 |
| Class of pollution | III |
| Allowable relative humidity | ≤50%(40℃)(No condensation) |

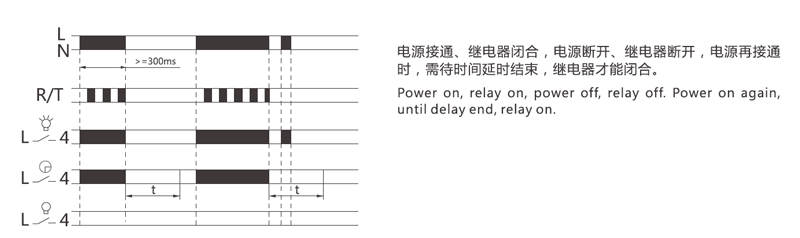

Function Diagram

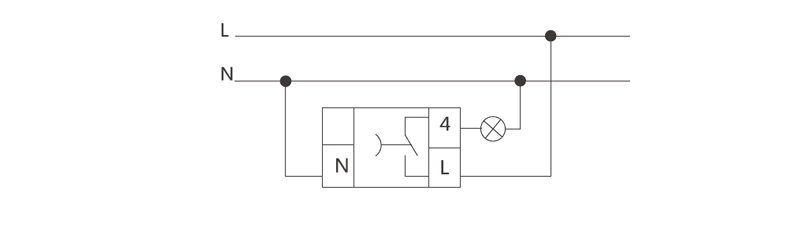

Wiring Diagram

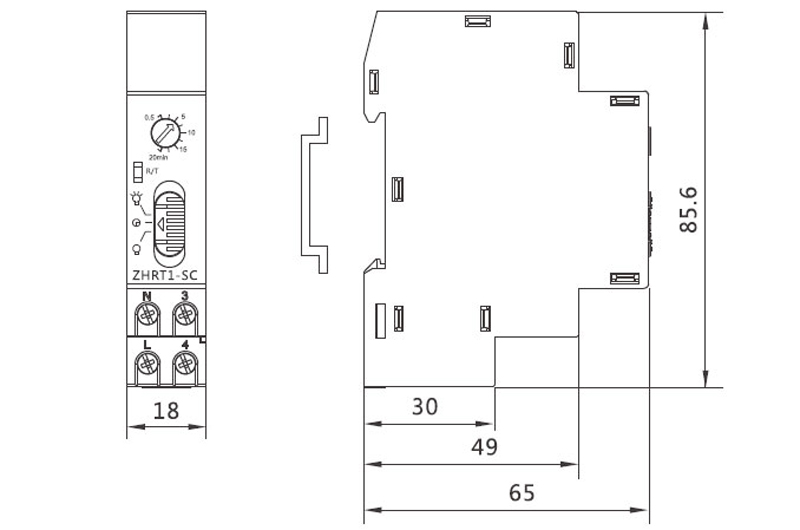

Dimensions
