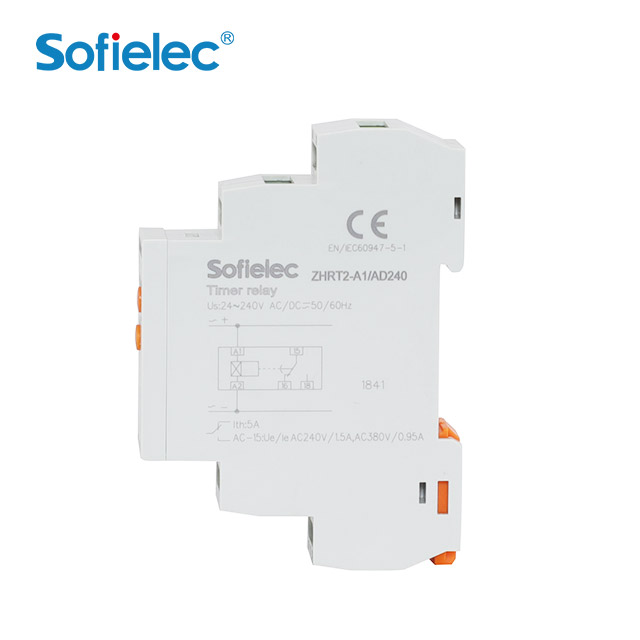

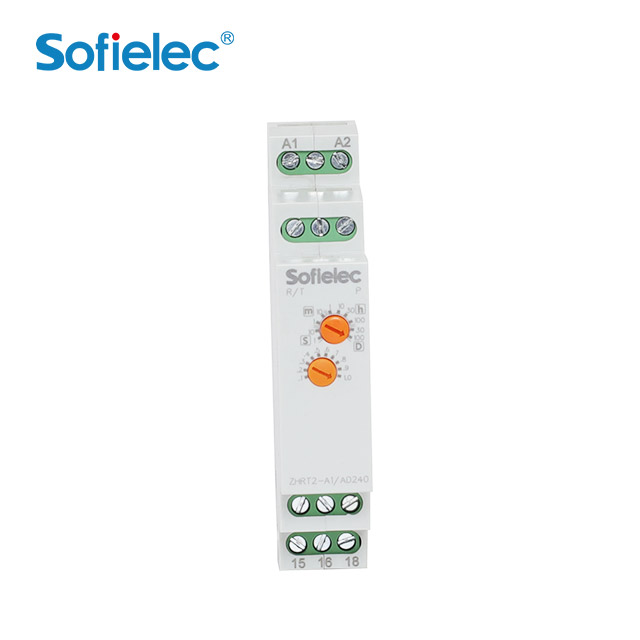

ZHRT2-A1 Time Relay

ZHRT2-A1 Time Relay
ZHRT2-A1 Time Relay
ZHRT2-A1 Time Relay
ZHRT2-A1 Time Relay

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Time Relay
Rated supply voltage DC12V. DC24V,AC1l0V. AC220V. AC380V AC/DC 24V~240V
Rated power consumption AC≤1.5VA DC≤1W
Delay range 0.1s~100h
Setting accuracy ≤5%
Repeat accuracy ≤0.2%
Repeat power-on interval ≥200ms
Altitude ≤2000m
Contact configuration capacity(A) 1 C/O,2 C/O 16A, 1C/O+1 instant C/O, 3C/O 8A
Contact capacity 1 C/O, 2 C/O, 1C/O+1 instant C/O, 3C/O
Ѕtаndаrd Guіdе (width)35mm
Function



Applications

Used in control cabinets, cabinets and other electrical control circuit,according to the scheduled time automatically switch on or off the circuit.

Features

Built-in micro controllers, 0.1s ~100h wide delay range, repeat accuracy ≤0.2%. Knob setting, LED indicator shows working status. Variety of optional rated voltage. DIN rail mounting.

Rated supply voltage DC12V、AC/DC 24V~240V 50/60Hz
Rated power consumption ≤1W
Delay range 0.1s ~ 100h multi-range adjustment
Setting accuracy ≤5%
Repeat accuracy ≤0.2%
Repeat power- on interval ≥ 200ms
Electrical life 105
Mechanical life 106
Altitude ≤2000m
Contact configuration capacity(A) 1C/O:16A ,2C/O:16A,3C/O:8A,2C/0+1 instant C/O:8A+ 16A
IP Class IP20
Class of pollution
Use category AC-15
Contact capacity Ue/le AC240V/1.5A
Contact capacity 1C/0 ,2C/O,3C/O,2C/0+1 instant C/O
Standard Guide width 35mm(IEC/EN60715)

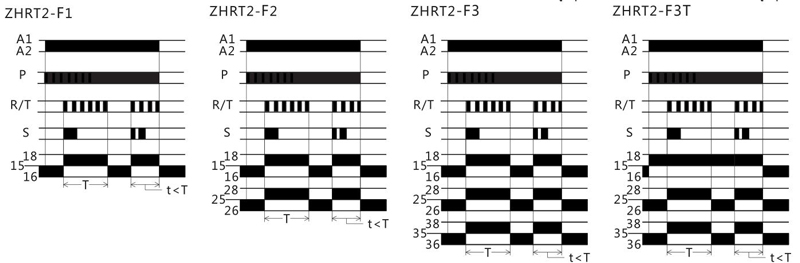

Function Diagram

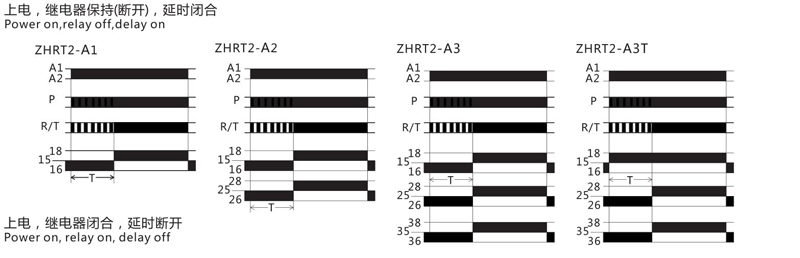

Power on,relay off,delay on
Power on,relay on,delay off

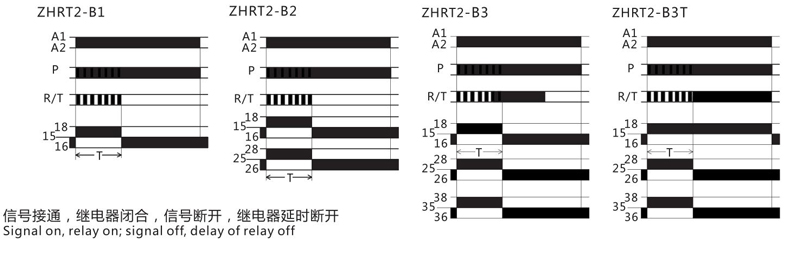

Signal on,relay on;signal off,delay of relay off

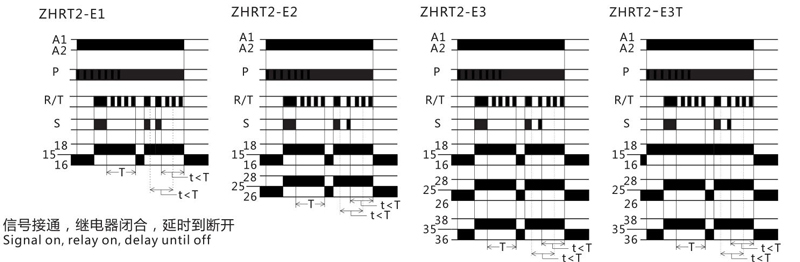

Signal on,relay on ,delay until off

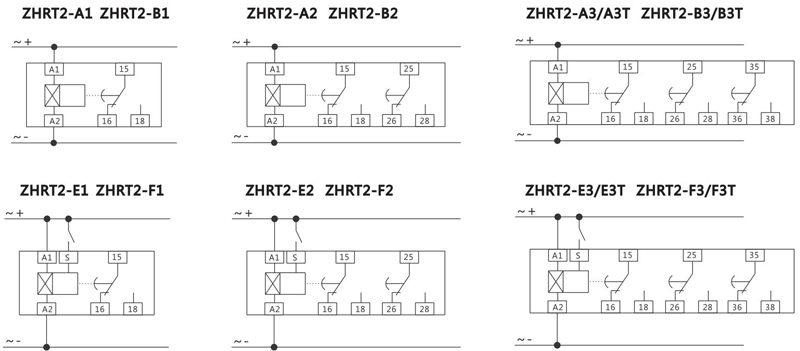

Wiring Diagram
Wiring Diagram:ZHRT2-A1  ZHRT2-B1;ZHRT2-A2  ZHRT2-B2;ZHRT2-A3/A3T  ZHRT2-N3/B3T;ZHRT2-E1  ZHRT2-F1;ZHRT2-E2  ZHRT2-F2;ZHRT2-E3/E3T  ZHRT2-F3/F3T

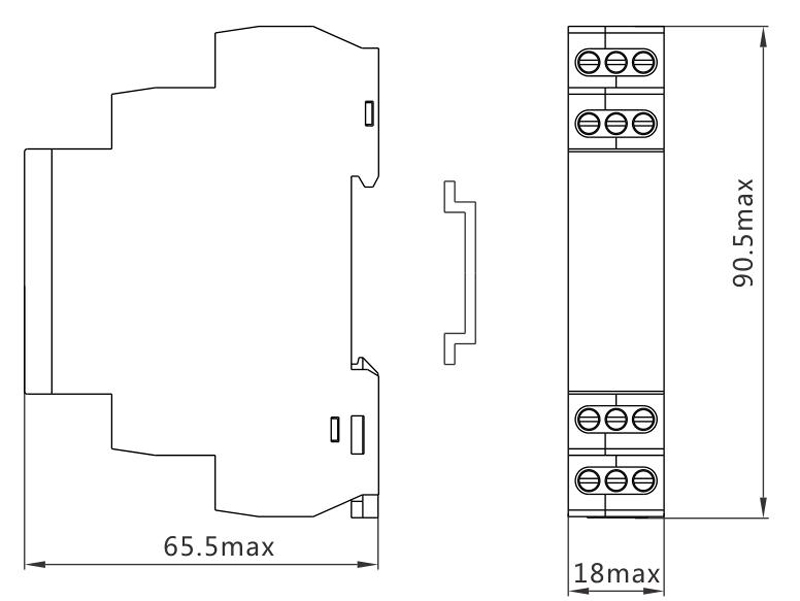

Dimensions
Dimensions
