| Categories | Time Relay |
| Model | ZHRT2-M1 |
| Rated control supply voltage | DC12V. AC/DC 24V ~24 |
| Rated power consumption | ≤1W |
| Delay range | 0.1s~100h |
| Setting accuracy | ≤5% |
| Repeat accuracy | ≤0.2% |
| Repeat power- on interval | ≥200ms |
| Altitude | ≤2000m |
| Contact configuration capacity(A) | 1C/O 16A;2C/O 16A;3C/O 8A,2C/O+1 instant C/O 8A+16 |
| IP Class | IP 20 |
| Use category | AC-15 |
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Features
Built-in microprocessors, 0.1s~100h wide delay range, repeataccuracy ≤ 0.2% knob setting. LED indicator shows working status. with 10 different control modes for different electriacla control systems,variety of optional rated voltage. DIN-rail mounting.
| Rated control supply voltage | DC12V、AC/DC 24V~240V 50/60Hz |
| Rated power consumption | ≤1W |
| Delay range | 0.1s~ 100h |
| Setting accuracy | ≤5% |
| Repeat accuracy | ≤0.2% |
| Repeat power-on interval | ≥200ms |
| Electrical life | 105 |
| Mechanical life | 106 |
| Altitude | ≤2000m |
| Contact configuration capacity(A) | 1C/O:16A ,2C/0:16A, 3C/O:8A,2C/O+ 1 instant C/O:8A+ 16A |
| IP Class | IP20 |
| Class of pollution | II |
| Use category | AC-15 |
| Contact capacity | Ue/le AC240V/1.5A |
| Contact capacity | 1C/0 ,2C/0,3C/O,2C/0+1 instant C/O |
| Standard Guide | width:35mm(IEC/EN60715) |

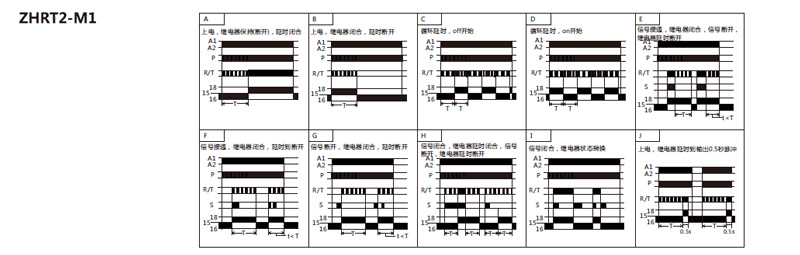

Function Diagram
Wiring Diagram

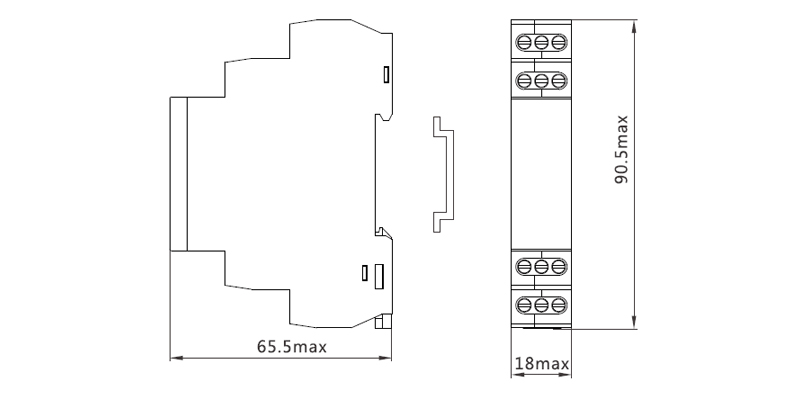

Dimensions
