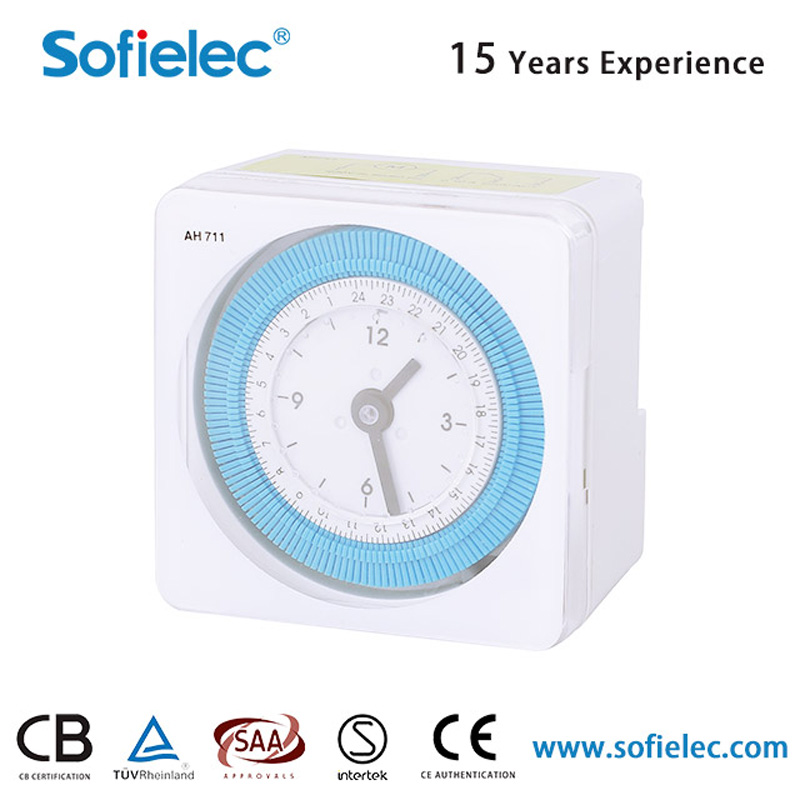

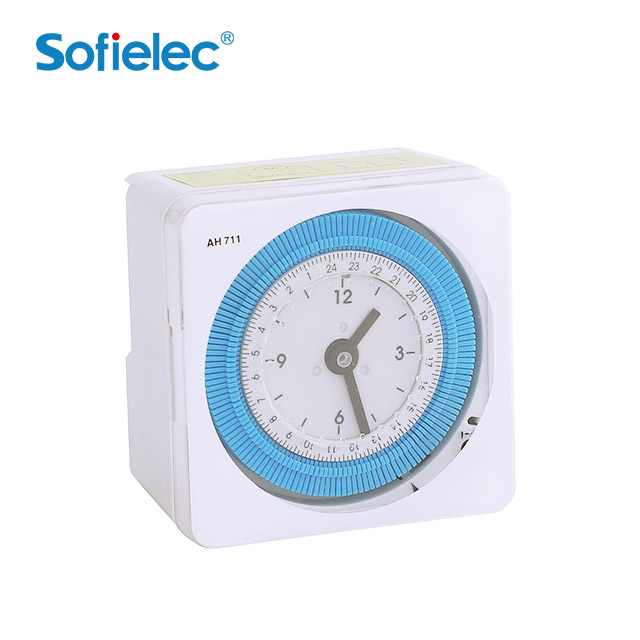

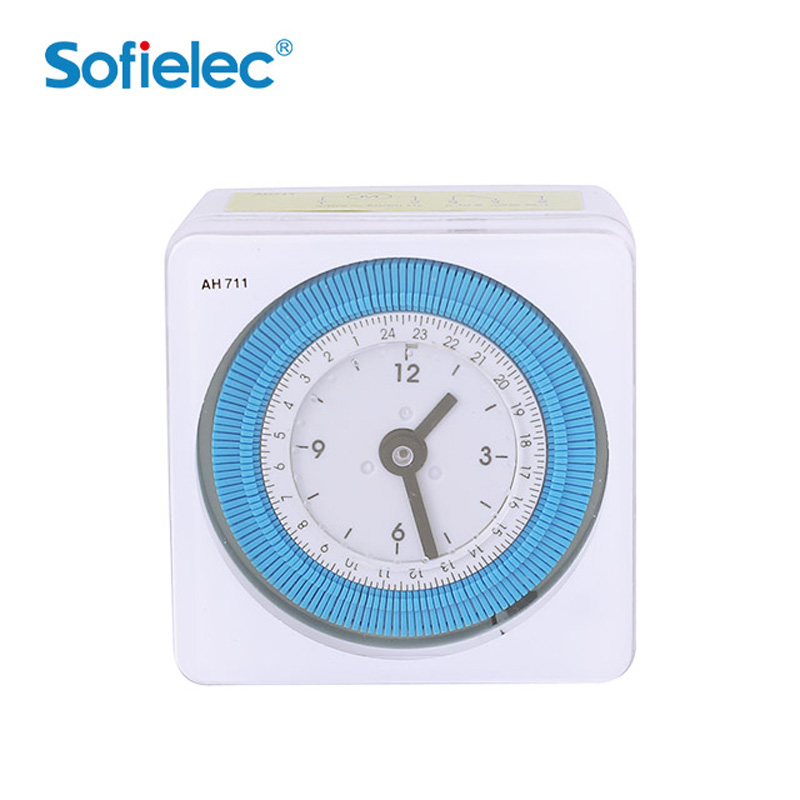

AH711 220V-240V 50Hz Mechanical Programmable Analogue Time switch

AH711 220V-240V 50Hz Mechanical Programmable Analogue Time switch
AH711 220V-240V 50Hz Mechanical Programmable Analogue Time switch
AH711 220V-240V 50Hz Mechanical Programmable Analogue Time switch
AH711 220V-240V 50Hz Mechanical Programmable Analogue Time switch

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Descripition
AH711 220V-240V 50Hz Mechanical Programmable Analogue Time switch
Analog time switch

1 channel

Switching status display

Daily program

144 switching segments

Quartz controlled

 Shortest switching time: 10 minutes

Clock hands for time display

Simple summer/winter time correction

Switch construction:Changeover contact

Screw terminals

AH711 220V-240V 50Hz Mechanical Programmable Analogue Time switch

AH711 :With power reserve (NiMH rechargeable battery)

AH710:Without power reserve

Commercial Refrigeration

Pumps/Motor/Fan Control

Hydroponic Systems

Aerobic Wastewater Treatment Systems

Boilers

Generator Exercising

Technical Data

Type

AH711/AH710

Operating voltage

230-240 VAC / 110VAC / 24VDC / 12VDC

Frequency

50-60 Hz

Number of channels

1

Width

4 modules

Installation type

surface / flush panel / control panel

Type of connection

Screw terminals

Drive

Quartz-controlled stepper motor

Program

Daily program

ower reserve

72 hours丨Without power reserve

Max. switching capacity at 250 V AC, cos φ = 1

10 A

Max. switching capacity at 250 V AC, cos φ = 0.6

3 A

Incandescent/halogen lamp load

600W

Energy saving lamps

100W

LED lamp < 2 W

20W

LED lamp > 2 W

100W

Shortest switching time

10 min

Programmable every

10 min

Number of switching segments

144

Time accuracy at 25 °C

≤ ± 2 s/day(Quartz)

Type of contact

Changeover contact

Switching output

Potential-free and phase-independent

Power consumption

1.5 VA

Test approvals

CE

Housing and insulation material

High-temperature resistant, self-extinguishing thermoplastic

Type of protection

IP 20

Protection class

II in accordance with EN 60730-1

Ambient temperature

–10 °C … +50 °C

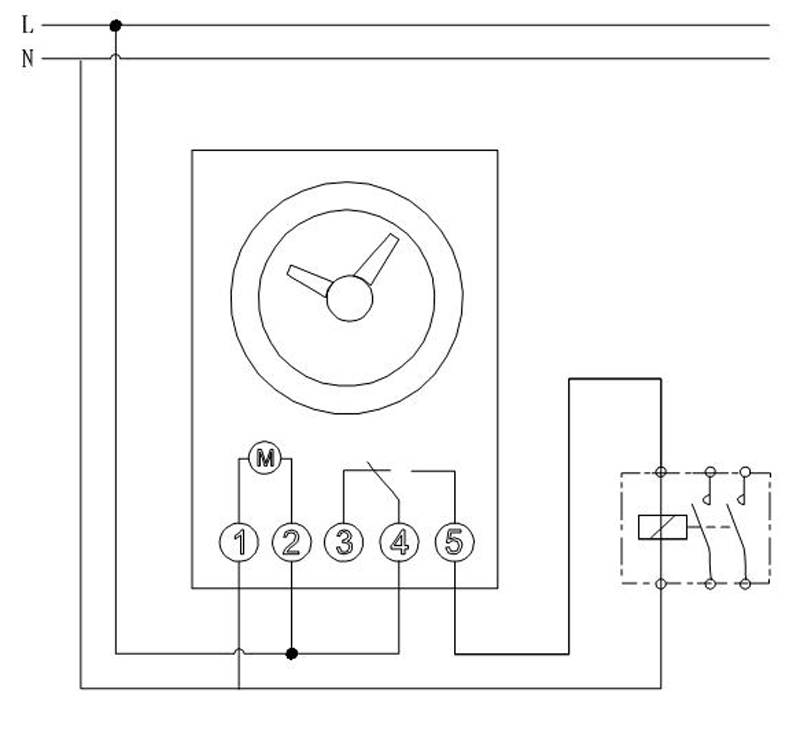

Connection Example
Mechanical Programmable Analogue Time switch drawings

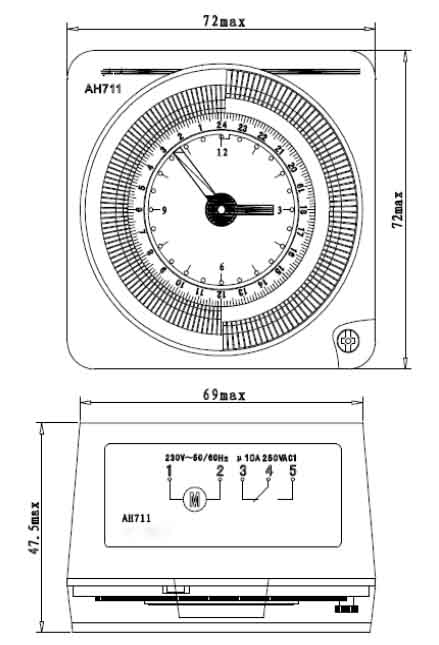

Scale Drawings
Mechanical Programmable Analogue Time switch drawings
