AHC610 series Time switch Digital weekly

AHC610 series Time switch Digital weekly
AHC610 series Time switch Digital weekly

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Time Switch
Model AHC610
Voltage AC220V (85~110%)
Frequency 50Hz
Terminal 5
Switching capacity 16A
Fluorescent lamp load (conventional)series-correct 1000VA
Fluorescent lamp load (conventional) not corrected 1000VA
Fluorescent lamp load (conventional)parallel-corre 730 VA 80μF
Type of protection IP 20
Class of protection II according to EN 60 730-1
Permitted ambient temperature -10 ~ +50 °C (non-icing)
Test approval CE
Minimum interval 1 Min.
Time accuracy at 25 °C ≤± 2 Sek./day (quartz)
Power reserve approx. 5 years
Housing and insulation material Self-extinguishing thermoplastic
Application

AHC610 series fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.

Description

AHC610:1 channels;AHC612:2 channels

Built-in calendar: 2018 - 2048 years

Daily and weekly program

EU and custom Daylight Saving Time.

20 groups of ON/OFF program

32 times of pulsation program

DIN35mm standard rails

5 years battery reserve

Accumulated working hours and action numbers can be viewed.

Built-in lithium battery, keep working when power failure.

Maximum recommended load (10,000 operations)

Filament /

Halogen lamp

230V

Compact

Fluorescent

Lamp

LED lamp

230V > 5

W

Fluorescent

lamp with

electronic

ballast

Fluorescent

lamp

uncompensa

ted

Fluorescent

lamp series

compensate

d

Fluorescent

lamp

parallel

compensate

d

2600 W

200 W

200 W

650 W

1000 W

1000 W

550

Technical date
supplier voltage 230Vac,50Hz other voltage on request
Switching capacity(per channel) resistiv load:16A/250V~at cosφ=1
inductive load:10A/250V~at cosφ=0,6
Minimum interval 1 Min
Time accuracy at 25℃ ≤±2 Sek./day(quartz)
Power reserve approx. 5 years
Housing and insulation material Self-extinguishing thermoplastic
Type of protection IP 20
Class of protection ll according to EN 60 730-1
Permitted ambient temperature -10~+50℃(non-icing)
Test approval CE

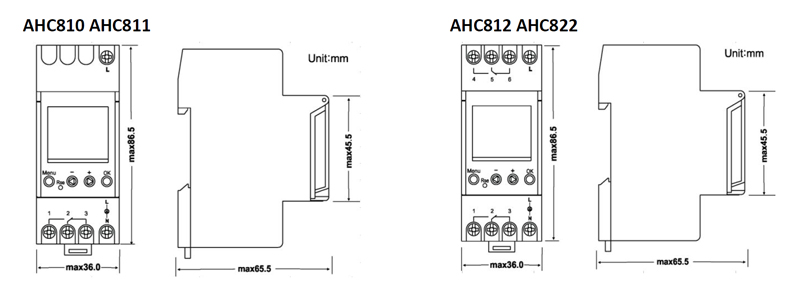

Dimensions

Dimensions

Dimensions
