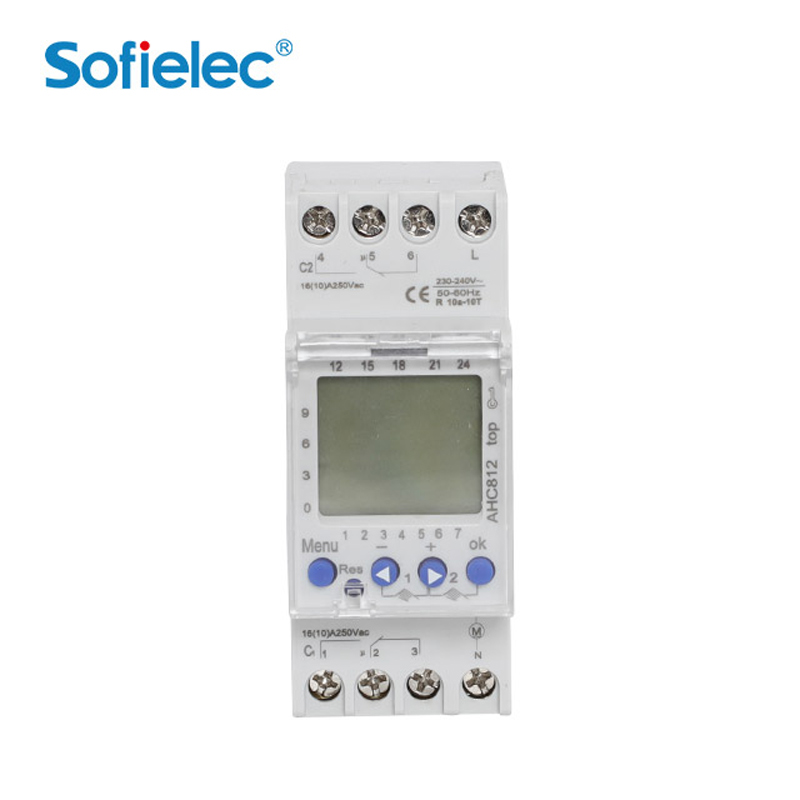

Function
|
Digital time switch |
|
44 memory locations |
|
Language(English/Spain/France/Portugal/Germany/Italy) |
|
Automatic summer/winter time |
|
EUROPE |
|
Great Britain |
|
U.S.A/Canada |
|
PIN Code |
|
Display year/month/day/hour/minute
|
|
Built-in lithium battery,power failure memory |
|
Fully operable without mains connection |
|
Preset date and time |
|
Manual ON/OFF control |
|
Screw terminals |
|
Light of billboard or showcase control |
|
Air-condition or Commercial Refrigeration |
|
Pumps/Motor/Fan Control |
|
Hydroponic Systems |
|
Wastewater Treatment Systems |
|
Generator Exercising |
|
Boilers / Heater Control |
|
Ventilation |
|
Lighting Panel Control |
|
Bug and Pest Control Systems
|
|
Aerobic Waste Water Systems |
|
General Electrical Circuits |
Product Selection
|
Product Type |
Voltage |
Frequency |
Consumed power |
Terminal |
Channel |
|
AHC810-220/50Hz |
220V |
50Hz |
4VA |
5
|
1
|
|
AHC810-220/60Hz |
60Hz |
||||
|
AHC810-110/50Hz |
110V |
50Hz |
5VA |
||
|
AHC810-110/60Hz |
60Hz |
||||
|
AHC810-12V |
AC/DC 12V |
50/60Hz for AC |
4VA |
||
|
AHC810-24V |
AC/DC 24V |
||||
|

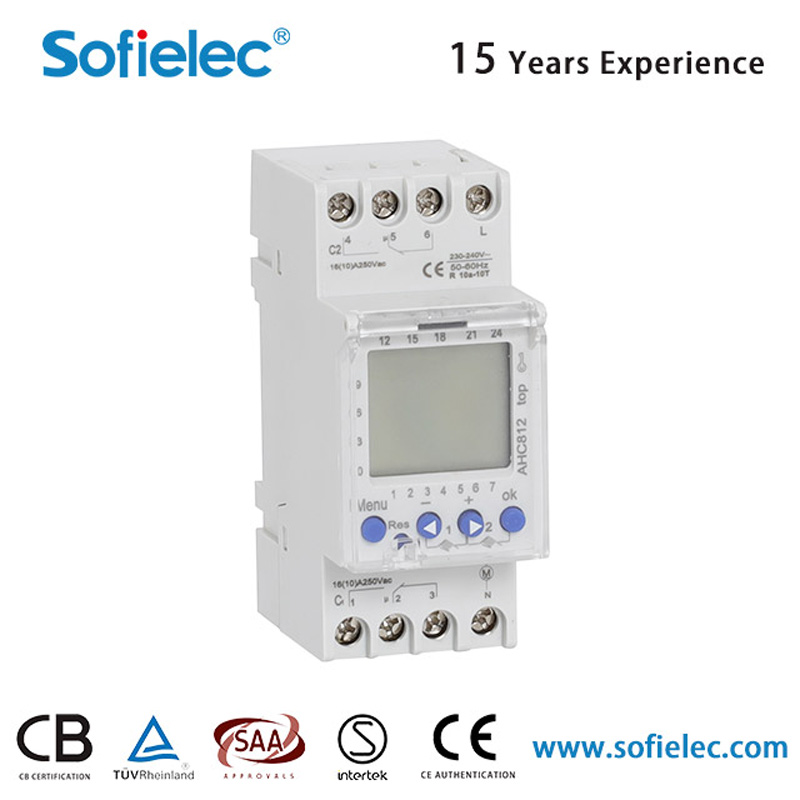

AHC812-220/50Hz |
220V |
50Hz |
7.5VA |
8
|
2
|
|
AHC812-220/60Hz |
60Hz |
||||
|
AHC812-110/50Hz |
110V |
50Hz |
|||
|
AHC812-110/60Hz |
60Hz |
||||
|
AHC812-12V |
AC/DC 12V |
50/60Hz for AC |
|||
|
AHC812-24V |
AC/DC 24V |
|
Technical Data
|
Operating voltage |
220V AC |
|
Width
|
2 modules |
|
Installation type
|
Din rail |
|
Type of contact
|
Changeover contact |
|
Switching output |
Phase-independent |
|
Installation type Method of connection terminal
|
Screw terminals |
|
Type of connection |
4 years |
|
Switching capacity at 250 V AC, cos φ = 1 |
16A |
|
Switching capacity at 250 V AC, cos φ = 0,6 |
10A |
|
Incandescent/halogen lamp load 230V |
2600W |
|
Energy saving lamps
|
170W |
|
LED lamp < 2 W |
30W |
|
LED lamp 2–8 W |
100W |
|
LED lamp > 8 W |
120W |
|
Fluorescent lamp load (electronic ballast) |
650W |
|
Fluorescent lamp load (conventional) not corrected
|
1000VA |
|
Fluorescent lamp load (conventional) |
1000VA |
|
Fluorescent lamp load (conventional)parallel-corrected |
730 VA 80uF |
|
Time accuracy at 25 °C |
typical ± 2 s/day (quartz) |
|
Test approval |
CE |
|
Type of protection |
|
