| Categories | Time Switch |
| Model | AHD16T |
| Voltage | AC220V (85~110%) |
| Frequency | 50Hz |
| Terminal | 5 |
| Switching capacity | 16A |
| Fluorescent lamp load (conventional)series-correct | 1000VA |
| Fluorescent lamp load (conventional) not corrected | 1000VA |
| Fluorescent lamp load (conventional)parallel-corre | 730 VA 80μF |
| Type of protection | IP 20 |
| Class of protection | II according to EN 60 730-1 |
| Permitted ambient temperature | -10 ~ +50 °C (non-icing） |
| Test approval | CE |
| Minimum interval | 1 Min. |
| Time accuracy at 25 °C | ≤± 2 Sek./day (quartz) |
| Power reserve | approx. 5 years |
| Housing and insulation material | Self-extinguishing thermoplastic |
Application
AHD16T fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
Description
|
Longitude range: east longitude / west longitude 0 ~ 180° |
Automatic key lock function, effectively prevent misuse. |
|
Latitude range: latitude / latitude 0 ~ 68° |
Time zone range: 12 ~ -12 |
|
8 ON/OFF program |
Screw terminals |
|
Switching preselection |
Preset date and time |
|
Fully operable without mains connection |
12/24 hour format conversion |
|
Built-in lithium battery,power failure memory |
Manually set Daylight Saving Time(1 Hours) |
|
The sunrise and sunset time can be checked according to the setting longitude, latitude, date and time zone. |
|
Product selection
|
Voltage |
AC220V (85~110%) |
|
Frequency |
Frequency |
|
Terminal |
5 |
|
Switching capacity |
16A |
Maximum recommended load (10,000 operations)
|
Filament / Halogen lamp 230V |
Energy saving lamps |
LED lamp < 2 W |
LED lamp 2–8 W |
LED lamp > 8 W |
Fluorescent lamp load (electronic ballast) |
|
2600 W |
170 W |
30 W |
100 W |
120 W |
650 W |
Technical date
| Fluorescent lamp load (conventional) not corrected | 1000VA |
| Fluorescent lamp load (conventional) series-corrected | 1000VA |
| Fluorescent lamp load (conventional) parallel-corrected | 730 VA 80μF |
| Minimum interval | 1 Min |
| Time accuracy at 25℃ | ≤±2 Sek./day(quartz) |
| Power reserve | approx. 5 years |
| Housing and insulation material | Self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Class of protection | ll according to EN 60 730-1 |
| Permitted ambient temperature | -10~+50℃(non-icing) |
| Test approval | CE |

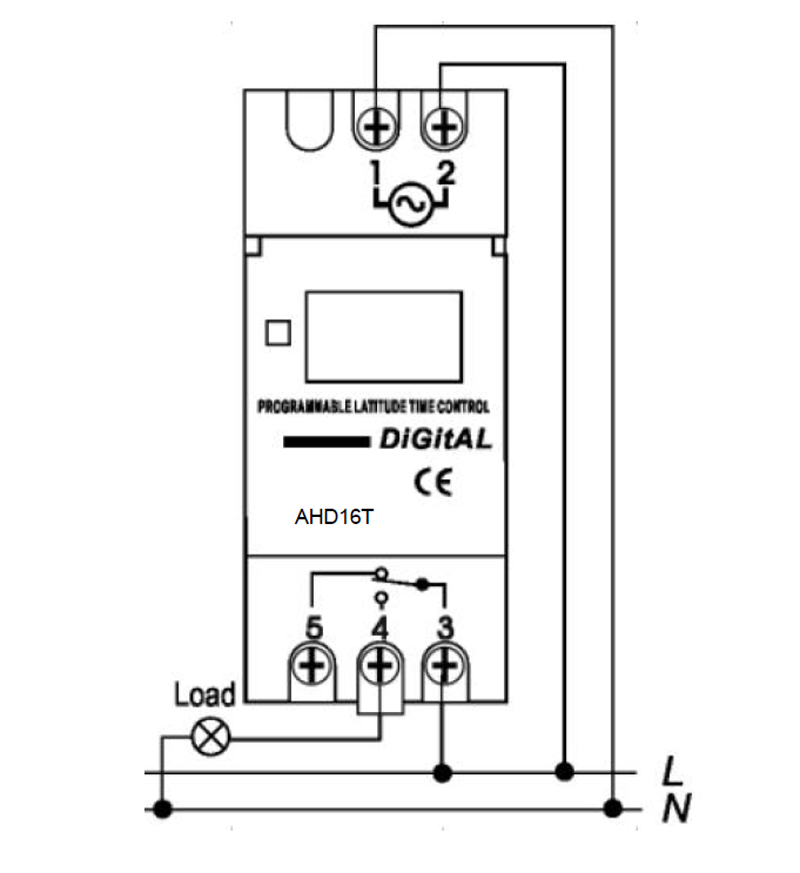

Wiring diagram

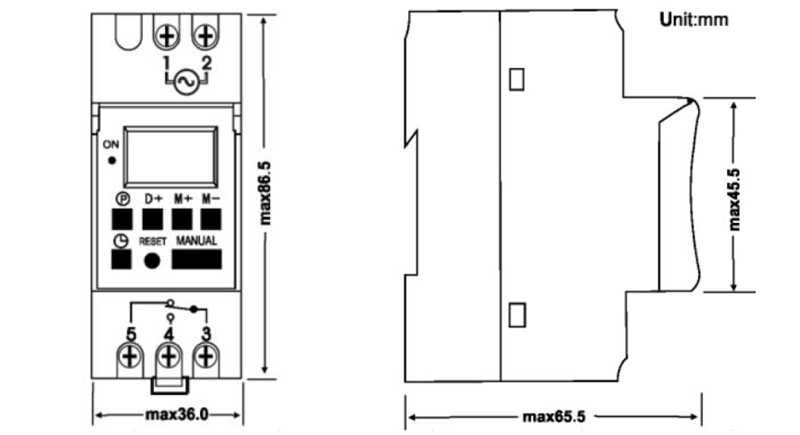

Dimensions
